Parts for Mercury Mark & Kiekhaefer Mark 35A Bottom Cowl Assembly
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 16-29394 | STUD, MAGNETO BRACKET AND SHIFT LEVER (2,2,,,,, required per assembly) SERIAL 01269885-09999999 |
  |
|
16-29394 - STUD,NLA [ More info ] Unavailable |
| # | 23-25194 | BUSHING, OILITE - SHIFT SHAFT (1,1,1,1,,, required per assembly) |
  |
|
23-25194 - Bushing,NLA [ More info ] Unavailable |
| # | 23-20008 | BUSHING, MAGNETO BRACKET AND SHIFT LEVER (NYLON) (2,2,,,,, required per assembly) SERIAL 00000000-01269884 |
  |
|
23-20008 - Bushing, NLA [ More info ]
|
| # | 11-23161 | NUT, BRACKET AND LEVER FASTENING (2,2,,,,, required per assembly) SERIAL 01269885-09999999 |
  |
|
11-23161 - Nut (3/8X24) [ More info ]
|
| # | 12-20128 | WASHER, PIN FASTENING SCREW (2,2,,,,, required per assembly) |
  |
|
12-20128 - Washer - Priced Individually [ More info ]
|
  |
|
12-847883 - Washer, (.192 X .375 X .033) [ More info ]
|
| # | 37-23076 | DECAL, MERCELECTRIC - BOTTOM COWL (,1,,,,, required per assembly) |
  |
|
37-23076 - Decal, NLA [ More info ] Unavailable |
| # | 24-24826 | SPRING, CONTROL BRACKET TENSION (1,1,,,,, required per assembly) SERIAL 00000000-01269884 |
  |
|
24-24826 - Spring, NLA [ More info ]
|
| # | 23-21008 | BUSHING, MAGNETO BRACKET AND SHIFT LEVER (STEEL) (2,2,,,,, required per assembly) SERIAL 00000000-01269884 |
  |
|
23-21008 - Bushing, NLA [ More info ] Unavailable |
| # | 13-20554 | LOCKWASHER, ANCHOR BRACKET SCREW (4,4,,,,, required per assembly) |
  |
|
13-20554 - Washer, NLA [ More info ] Unavailable |
| #1 | 103-1544A 1 | BOTTOM COWL ASSEMBLY (1,,,,,, required per assembly) |
  |
|
103-1544A 1 - BOTTOM COWL,NLA [ More info ] Unavailable |
| #2 | 21041 | INSERT, TAP LOCK (1,1,1,1,1, required per assembly) |
  |
|
21041 - Tap Lock Insert, NLA [ More info ]
|
| #3 | 29206 | PLUG, BOTTOM COWL HARNESS HOLE (1,,1,,1,,1 required per assembly) |
  |
|
29206 - Plug, Bottom Cowl Harness Hole, NLA [ More info ] Unavailable |
| #4 | 10-26128 | SCREW, PLUG TO BOTTOM COWL (4,,4,,4,,4 required per assembly) |
  |
10-26128 - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|

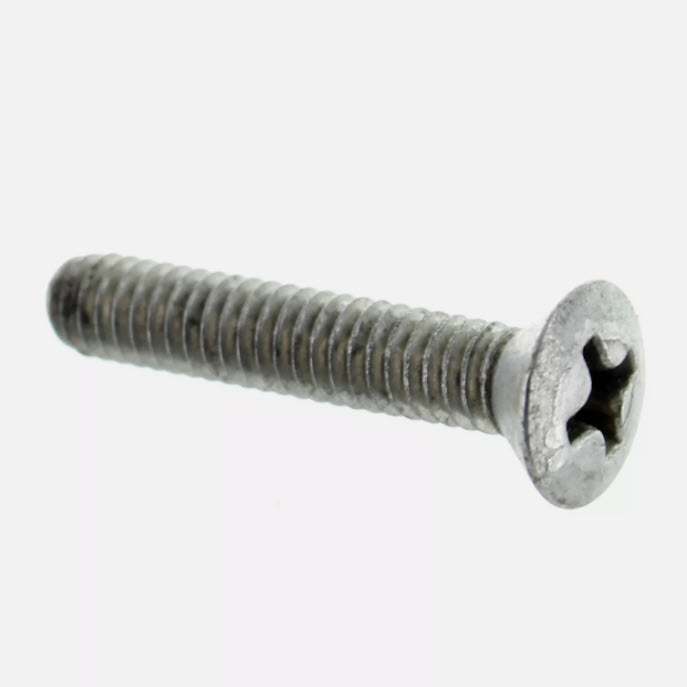

10-45893 - Screw - Priced Individually, NLA [ More info ]
|
| #5 | 13-26995 | LOCKWASHER, PLUG FASTENING SCREW (4,,4,,4,,4 required per assembly) |
  |
|
13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable |
| #6 | 11-26419 | NUT, PLUG FASTENING SCREW (4,,4,,4,,4 required per assembly) |
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
| #7 | 23760 | BAFFLE, BOTTOM COWL (1,1,1,1,1, required per assembly) |
  |
|
23760 - Baffle, NLA [ More info ]
|
| #8 | 10-21106 | SCREW, BAFFLE TO BOTTOM COWL (3,3,3,3,3, required per assembly) |
  |
|

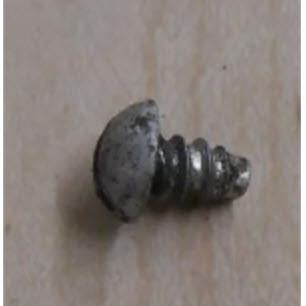

10-21106 - Screw, NLA [ More info ]
|
| #9 | 21104A 2 | CONNECTOR BASE ASSEMBLY (1,,1,,1,,1 required per assembly) |
  |
|
21104A 2 - Connector A, NLA [ More info ] Unavailable |
| #10 | 13-21972 | LOCKWSHER, CONNECOTR BASE (1,,1,,1,,1 required per assembly) |
  |
|
13-21972 - LockWasher, NLA [ More info ]
|
| #11 | 21971 | NUT, CONNECTOR BASE FASTENING (1,,1,,1,,1 required per assembly) |
  |
|
11-21971 - Nut, NLA [ More info ]
|
| #12 | 54-25231 | CLIP, CONNECTOR BASE LEAD WIRE (1,,1,,1,,1 required per assembly) |
  |
|
54-25231 - Clip, NLA [ More info ] Unavailable |
| #14 | 27956 | BRACKET, MAGNETO CONTROL (LOWER) (1,1,,,,, required per assembly) SERIAL 00000000-01269884 |
  |
27956 - Bracket [ More info ] Unavailable |
|
  |
|
29532A 1 - LEVER ASSY,NLA [ More info ] Unavailable |
| #14 | 29392 | BRACKET, MAGNETO CONTROL (LOWER) (1,1,,,,, required per assembly) SERIAL 01269885-09999999 |
  |
29392 - LEVER [ More info ] Unavailable |
|
| #14 | 29532 | BRACKET, MAGNETO CONTROL (LOWER) (,,1,1,1,1, required per assembly) |
  |
|
|
| #15 | 28253 | LEVER, SHIFT CONTROL (1,1,,,,, required per assembly) SERIAL 00000000-01269884 |
  |
|
28253 - Lever [ More info ] Unavailable |
| #15 | 29391 | LEVER, SHIFT CONTROL (1,1,,,,, required per assembly) SERIAL 01269885-09999999 |
  |
|
29391 - LEVER,NLA [ More info ] Unavailable |
| #15 | 30612 | LEVER, SHIFT CONTROL (,,1,1,1,1, required per assembly) |
  |
|
30612 - Lever, NLA [ More info ]
|
| #16 | 23-29529 | SLEEVE, MAGNETO BRACKET AND SHIFT LEVER (,,2,2,2,2, required per assembly) |
  |
|
23-29529 - Bushing, NLA [ More info ] Unavailable |
| #17 | 10-21077 | SCREW, BRACKET AND LEVER FASTENING (2,2,,,,, required per assembly) SERIAL 00000000-01269884 |
  |
|
10-21077 - Screw, NLA [ More info ]
|
| #17 | 10-26632 | SCREW, BRACKET AND LEVER FASTENING (,,2,2,2,2, required per assembly) |
  |
10-26632 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
|
10-37612 - Screw - Priced Individually [ More info ]
|
| #18 | 12-21040 | WSHER, BRACKET AND LEVER FASTENING SCREW (2,2,,,,, required per assembly) SERIAL 00000000-01269884 |
  |
12-21040 - Washer, NLA [ More info ] Unavailable |
|
  |
|
12-68300 - Washer, (..88 X .39 X .06) [ More info ]
|
| #18 | 12-29395 | WASHER, BRACKET AND LEVER FASTENING SCREW (,,4,4,4,4, required per assembly) |
  |
|
12-29395 - Washer, (.390 X 1.00 X .06) [ More info ]
|
  |
|
12-8M0042641 - Washer [ More info ]
|
  |
|
18-4267-9 - Washer, 12-29395, 2PK [ More info ]
|
| #19 | 17-30978A 1 | PIN ASSEMBLY, CLEVIS YOKE (2,2,2,2,2, required per assembly) |
  |
|
17-30978A 1 - Pin Assembly, Clevis Yoke,NLA [ More info ]
|
| #20 | 17-23928 | ROLL PIN, CLEVIS YOKE PIN (2,2,2,2,2, required per assembly) |
  |
17-23928 - Pin -roll - Priced Individually [ More info ] Unavailable |
|
  |
|
17-23928 1 - Pin -roll - Priced Individually [ More info ]
|
| #21 | 10-20584 | SCREW, CLEVIS PIN FASTENING (2,2,2,2,2, required per assembly) |
  |
|
10-20584 - Screw, NLA [ More info ]
|
| #22 | 13-29402 | WASHER, WAVE - IN FASTENING SCREW (2,2,2,2,2, required per assembly) |
  |
|
13-29402 - Wave Washer - Priced Individually [ More info ]
|
| #23 | 11-20110 | NUT, PIN FASTENING SCREW (2,2,,,,, required per assembly) |
  |
|
11-20110 - Nut (M10X32) [ More info ]
|
| #23 | 11-29488 | NUT, PIN FASTENING SCREW (,,2,2,2,2, required per assembly) |
  |
|
11-29488 - Nut, (#10-32) [ More info ]
|
  |
|
11-826709106 - Nut, (#10-32) Stainless Steel [ More info ]
|
  |
|
11-8M0204718 - NUT [ More info ]
|
| #24 | 25180 | SHAFT, SHIFT (UPPER) - SHORT SHAFT (1,1,1,1,1, required per assembly) |
  |
|
25180 - Shaft, NLA [ More info ] Unavailable |
| #24 | 25163 | SHAFT, SHIFT (UPPER) - LONG SHAFT (1,1,1,1,1, required per assembly) |
  |
|
25163 - Shaft, NLA [ More info ] Unavailable |
| #25 | 27714 | ROD (SLEEVE), SHIFT CONTROL END (1,1,1,1,1, required per assembly) |
  |
|
|
| #26 | 11-25168 | NUT, SHIFT SHAFT END ADJUSTING (1,1,1,1,1, required per assembly) |
  |
|
11-25168 - Nut (1/4-28) NLA [ More info ]
|
| #27 | 25134 | ROD, LINK - SHIFT SHAFT END (1,1,1,1,1, required per assembly) |
  |
|
25134 - Rod [ More info ]
|
| #28 | 18-20180 | COTTER PIN, LINK ROD TO SHIFT SHAFT (2,2,2,2,2, required per assembly) |
  |
18-20180 - PIN-COTTER Note: Priced Individually [ More info ] Unavailable |
|
  |
18-21071 - Cotter Pin - Priced Individually [ More info ] Unavailable |
|
  |
|
18-21071 1 - Cotter Pin - Priced Individually [ More info ]
|
| #29 | 12-20583 | WASHER, LINK ROD (1,1,1,1,,, required per assembly) |
  |
|
12-20583 - Washer - Priced Individually [ More info ]
|
| #30 | 24-25065 | SPRING, DETENT (1,1,1,1,1, required per assembly) |
  |
|
24-25065 - Spring, Detent - Shift Shaft,NLA [ More info ]
|
| #31 | 10-20776 | SCREW, DETENT SPRING TO BOTTOM COWL (1,1,1,1,1, required per assembly) |
  |
|
10-20776 - Screw - Priced Individually [ More info ]
|
  |
|
10-98256 - Screw [ More info ]
|
| #32 | 12-20346 | WASHER, DETENT SPRING SCREW (1,1,1,1,1, required per assembly) |
  |
12-20346 - Washer, 3/4 O.D. [ More info ] Unavailable |
|
  |
|
12-69057 - Washer, (.281 X .734 X .063) [ More info ]
|
| #33 | 11-20013 | NUT, DETENT SPRING SCREW (1,1,1,1,,, required per assembly) |
  |
|
11-20013 - Nut, (.250-28) [ More info ]
|
| #33 | 11-20184 | NUT, DETENT SPRING SCREW (,,,,1,1,1 required per assembly) |
  |
11-20184 - Nut, (1/4-28x7/32) [ More info ] Unavailable |
|
  |
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
| #34 | 20557 | BRACKET, CABLE END ANCHOR (2,2,2,2,2, required per assembly) |
  |
|
20557 - Cable and Anchor Bracket, NLA [ More info ]
|
| #35 | 10-20100 | SCREW, ANCHOR BRACKET TO BOTTOM COWL (4,4,,,,, required per assembly) |
  |
|
10-20100 - Screw - Priced Individually [ More info ]
|
  |
|
10-69022 - Screw [ More info ]
|
| #35 | 10-29200 | SCREW, ANCHOR BRACKET TO BOTTOM COWL (,,4,4,4,4, required per assembly) |
  |
|
10-29200 - Screw, NLA [ More info ]
|
| #36 | 22-25885 | ELBOW, PLASTIC - MAGNETO VENT TUBE (2,2,2,2,2, required per assembly) |
  |
22-25885 - Elbow - Priced Individually [ More info ] Unavailable |
|
  |
|
22-99664 - Elbow [ More info ]
|
  |
22-99664 1 - Elbow [ More info ] Unavailable |
|
  |
|
22-99664 2 - Elbow [ More info ]
|
| #37 | 32-29164 | TUBE, VENT - MAGNETO (2,2,2,2,2, required per assembly) |
  |
32-29164 - TUBE [ More info ] Unavailable |
|
  |
32-34395A 1 - Hose [ More info ] Unavailable |
|
  |
32-99127109 - TUBING-57 INCH [ More info ] Unavailable |
|
  |
32-830756109 - Hose, 57 Inch [ More info ] Unavailable |
|
  |
32-8M0047428 - Hose -57 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #38 | 27-20390 | GASKET, POWERHEAD TO BOTTOM COWL (1,1,1,1,1, required per assembly) |
  |
|

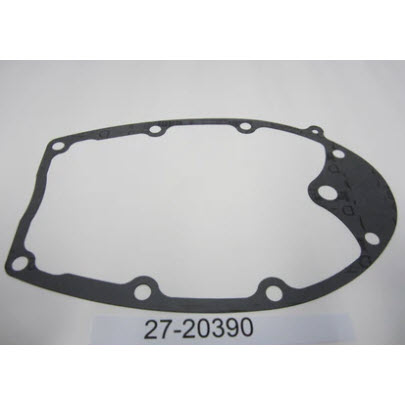

27-20390 - Powerhead To Bottom Cowl Gasket [ More info ]
|
| #39 | 30109 | GROUND STRAP ASSEMBLY, CYLINDER BLOCK TO COWL (1,1,1,1,1, required per assembly) |
  |
|
30109 - Ground Strap, NLA [ More info ] Unavailable |
| #40 | 38-27720 | PLATE, TRADE MARK - BOTTOM COWL (1,1,1,1,1, required per assembly) |
  |
|
38-27720 - NAME PLATE,NLA [ More info ] Unavailable |
| #41 | 53-25539 | FASTENER, PLATE TO BOTTOM COWL (2,2,2,2,2, required per assembly) |
  |
|
53-25539 - FASTENER,NLA [ More info ] Unavailable |
| #42 | 26552 | SUPPORT, EXTERNAL WIRING HARNESS (,1,,1,,1, required per assembly) |
  |
|
26552 - Support, NLA [ More info ]
|
| #43 | 10-20639 | SCREW, HARNESS SUPPORT TO BOTTOM COWL (,1,,1,,1, required per assembly) |
  |
|
10-20639 - Screw, NLA [ More info ]
|
| #44 | 12-20084 | WASHER, HARNESS SUPPORT FASTENING SCREW (,1,,1,,1, required per assembly) |
  |
|
12-20084 - Washer, (.328 X .562 X .062) [ More info ]
|
| #45 | 11-29250 | NUT, HARNESS SUPPORT SCREW (,1,,1,,1, required per assembly) |
  |
|
11-29250 - Nut (5/16-24) [ More info ]
|
