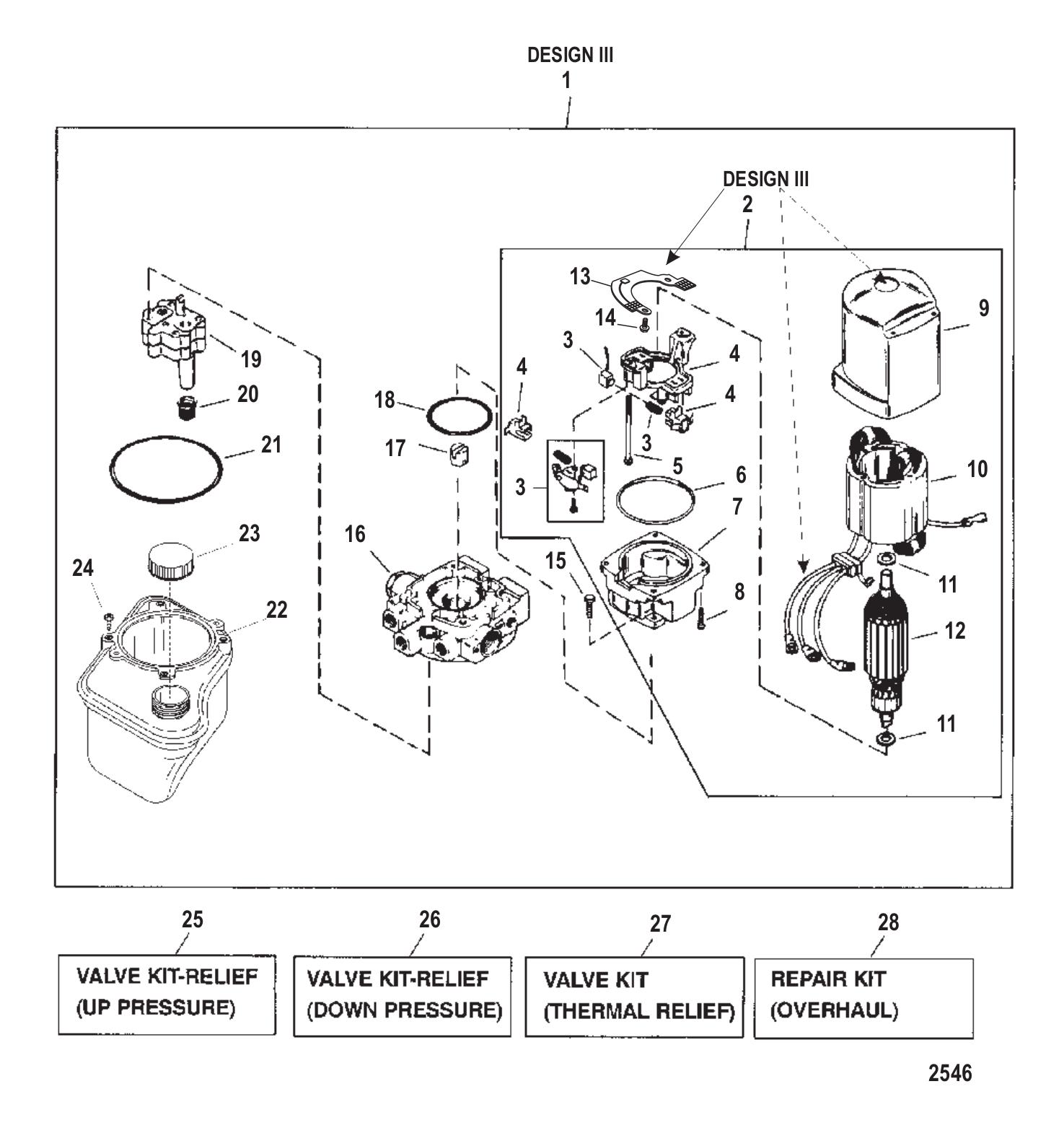

Parts for 575 Sci 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Pump / Motor (Top Mt Reservoir) (Design III - 14336A31)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 865380A13 | PUMP/MOTOR ASSY - Design III - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line (1 required per assembly) — Replaces: 14336A31, 865380A03 |
  |
|
865380A13 - Pump/Motor Assembly [ More info ]
|
  |
|
18-6813 - Trim Motor, Pump and Reservior [ More info ]
|
  |
|
18-6769-1 - Tilt Trim Motor [ More info ]
|
  |
|
18-6274 - Tilt Trim Motor [ More info ]
|
  |
|
6275 - Tilt Trim Motor [ More info ]
|
| #2 | 891736T | MOTOR ASSEMBLY COMPLETE - Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line (1 required per assembly) |
  |
|
891736T - Motor Assembly - Trim [ More info ]
|
  |
|
18-6772 - Trim Pump Motor [ More info ]
|
  |
|
10-17626 - Ord 891736T [ More info ]
|
  |
|
6218 - Tilt Trim Motor [ More info ]
|
| #3 | 891737 | BRUSH KIT (1 required per assembly) |
  |
|
891737 - Brush Kit [ More info ]
|
| #4 | 891738 | HOLDER ASSEMBLY BRUSHES (1 required per assembly) |
  |
|
891738 - Holder Assembly - Brush [ More info ]
|
| #5 | 891739 | SCREW BRUSH HOLDER (2 required per assembly) |
  |
|
10-891739 - Screw - Priced Individually [ More info ]
|
| #6 | 891740 | O-RING (1 required per assembly) |
  |
|
25-891740 - O-ring, Frame To Housing [ More info ]
|
| #7 | NSS | NOT SOLD SEPARATE END CAP ASSEMBLY (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #8 | 891741 | SCREW (4 required per assembly) |
  |
|
10-891741 - Screws (Package Of 4) [ More info ]
|
| #9 | NSS | NOT SOLD SEPARATE COVER ASSEMBLY WITH BEARING (1 required per assembly) |
| #10 | NSS | NOT SOLD SEPARATE FIELD AND FRAME ASSEMBLY (1 required per assembly) |
| #11 | NSS | NOT SOLD SEPARATE THRUST WASHER (2 required per assembly) |
| #12 | NSS | NOT SOLD SEPARATE ARMATURE (1 required per assembly) |
| #13 | 892608 | BOARD ASSEMBLY CIRCUIT - RADIO FREQUENCY INTERFERENCE FILTER (1 required per assembly) |
  |
|
892608 - Circuit Board-rfi [ More info ]
|
| #14 | NSS | NOT SOLD SEPARATE SCREW (2 required per assembly) |
| #15 | 823444 | SCREW (2 required per assembly) |
  |
|
10-823444 - Screw [ More info ]
|
| #16 | 808728T | ADAPTER ASSEMBLY (1 required per assembly) |
  |
|
808728T - Adaptor Assembly [ More info ]
|
| #17 | 803852 | COUPLING (1 required per assembly) |
  |
|
803852 - Coupling [ More info ]
|
| #18 | 89498 | O-RING MOTOR END (1 required per assembly) |
  |
|
25-89498 - O-ring, Motor To Adaptor [ More info ]
|
| #19 | 18529 | PUMP ASSEMBLY WITH SCREWS (1 required per assembly) |
  |
|
18529 - Hydraulic Pump Assembly [ More info ]
|
| #20 | 89496 | FILTER (2 required per assembly) |
  |
|
35-89496 - Filter [ More info ]
|
| #21 | 17645 | O-RING RESERVOIR END (1 required per assembly) |
  |
|
25-17645 - O-ring, Reservoir To Adaptor [ More info ]
|
| #22 | 883166A2 | RESERVOIR KIT - NOTE: With Filters - Ref 20 And O Ring - Ref 21 (1 required per assembly) |
  |
|
883166A 2 - Reservoir Kit [ More info ]
|
  |
|
18-6778 - Reservoir, 883166A2 [ More info ]
|
  |
|
M532 - Reservoir, Mercury Only [ More info ]
|
| #23 | 865448A01 | CAP OIL RESERVOIR - NOTE: Rough Water Application (OPT required per assembly) |
  |
36-865448A01 - Cap - Oil Reservoir [ More info ] Unavailable |
|
  |
|
36-8M0188327 - CAP-OIL RESERVOIR [ More info ] Unavailable |
| #24 | 883167 | SCREW (#8-32) (4 required per assembly) |
  |
|
10-883167 - Screw [ More info ]
|
| #25 | 812498A1 | VALVE KIT RELIEF UP PRESSURE (1 required per assembly) |
  |
|
812498A 1 - Relief Valve Kit [ More info ]
|
| #26 | 812499A1 | VALVE KIT RELIEF DOWN PRESSURE (1 required per assembly) |
  |
|
812499A 1 - Relief Valve Kit [ More info ]
|
| #27 | 95353A1 | VALVE KIT THERMAL RELIEF THERMAL (1 required per assembly) |
  |
|
95353A 1 - Valve Kit [ More info ]
|
| #28 | 18545A1 | REPAIR KIT OVERHAUL (1 required per assembly) |
  |
|
18545A 1 - Repair Kit [ More info ]
|
