Parts for 4.3L MPI Alpha / Bravo 4.3L (262 Cu In) V6 GM MerCruiser Engines - Gas Electrical Components

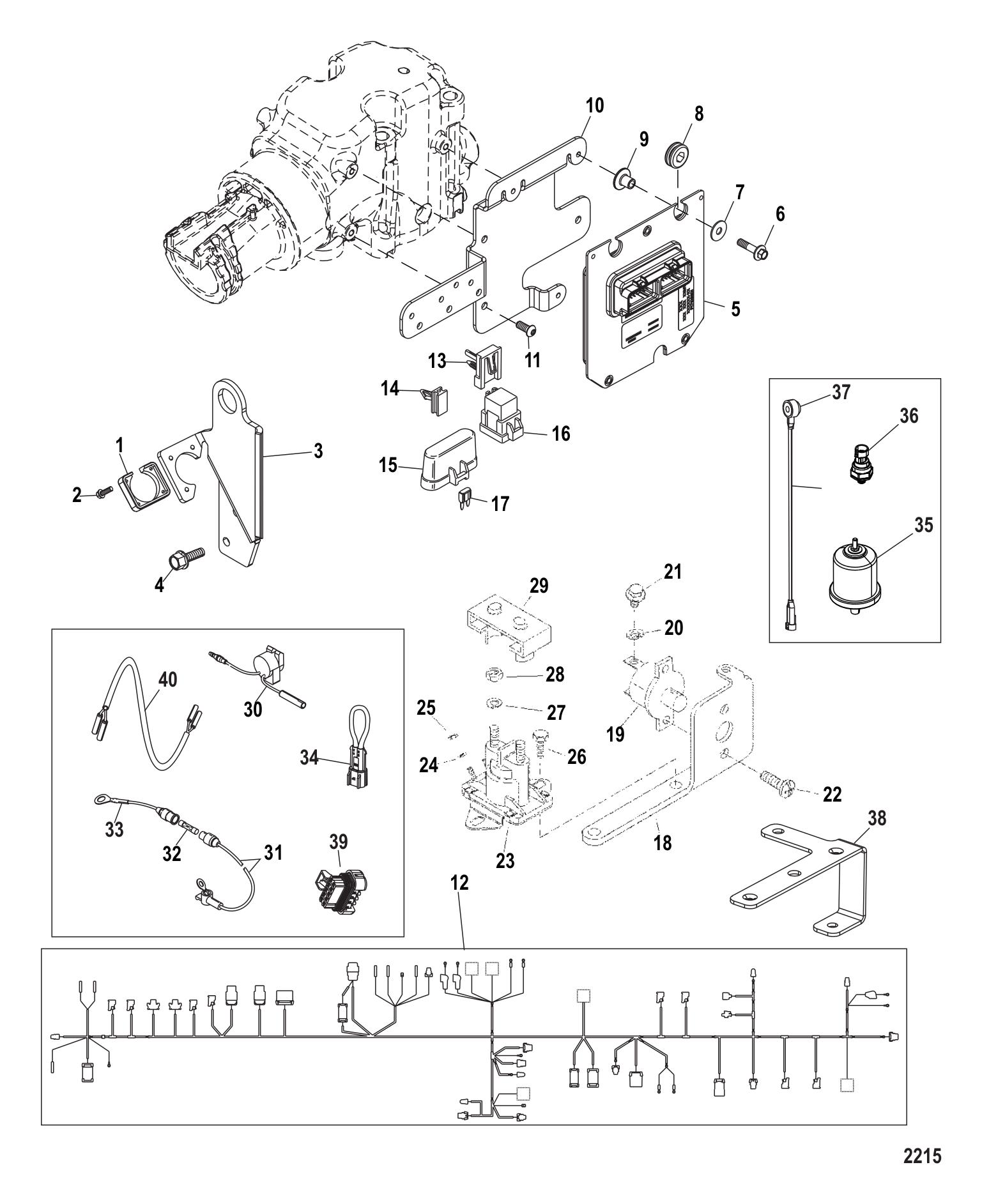

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 26079A2 | PLATE KIT (1 required per assembly) |
  |
|
26079A 2 - Plate Kit [ More info ]
|
| #2 | 15001 | SCREW (#8-16 X .875) (3 required per assembly) |
  |
|
10-15001 - Screw [ More info ]
|
| #3 | 865480T | BRACKET HARNESS MOUNTING/LIFTING EYE (1 required per assembly) — Replaces: 863440T |
  |
|
865480T - Bracket [ More info ]
|
| #4 | 98261 | SCREW (2 required per assembly) |
  |
|
10-98261 - Screw [ More info ]
|
| #5 | 865830T04 | ECM (Alpha-Standard Cooling) (1 required per assembly) — Replaces: 865830T02, 865830T03 |
  |
865830T04 - ECM [ More info ] Unavailable |
|
  |
|
865830T07 - ECM [ More info ] Unavailable |
| #5 | 865831T04 | ECM (Alpha-Closed Cooling) (1 required per assembly) — Replaces: 865831T02, 865831T03 |
  |
865831T04 - ECM [ More info ] Unavailable |
|
  |
|
865831T07 - ECM [ More info ] Unavailable |
| #5 | 865832T03 | ECM (Bravo-Standard Cooling) (1 required per assembly) — Replaces: 865832T01, 865832T02 |
  |
|
865832T03 - 865832T03 - ECM [ More info ] Unavailable Replaced by -865832T06 |
  |
|
865832T06 - ECM [ More info ] Unavailable |
| #5 | 865833T03 | ECM (Bravo-Closed Cooling) (1 required per assembly) — Replaces: 865833T01, 865833T02 |
  |
865833T03 - ECM [ More info ] Unavailable |
|
  |
|
865833T06 - ECM [ More info ] Unavailable |
| #6 | 82130025 | SCREW @5 (3 required per assembly) |
  |
|
10-821300 25 - Screw [ More info ]
|
| #7 | 65567 | WASHER @2 (3 required per assembly) |
  |
|
12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ]
|
| #8 | 834985 | GROMMET @5 (3 required per assembly) |
  |
|
25-834985 - Grommet [ More info ]
|
  |
|
25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ]
|
| #9 | 856954 | BUSHING (3 required per assembly) |
  |
|
23-856954 - Bushing [ More info ]
|
| #10 | 863424T | BRACKET (1 required per assembly) |
  |
|
863424T - Bracket [ More info ]
|
| #11 | 860008 | BOLT @2 (3 required per assembly) |
  |
|
10-860008 - Bolt [ More info ]
|
| #12 | 865456A01 | HARNESS-ENGINE (1 required per assembly) |
  |
|
84-865456A01 - Engine Harness [ More info ]
|
| #13 | 865205 | CLIP RELAY MOUNTING (2 required per assembly) — Replaces: 804351 |
  |
|
86-865205 - Clip - Priced Individually [ More info ]
|
| #14 | 804352 | CLIP FUSE BLOCK MOUNTING (1 required per assembly) |
  |
|
54-804352 - Clip- Fuse Block [ More info ]
|
| #15 | 883562 | COVER FUSE (1 required per assembly) |
  |
|
883562 - Fuse Block Cover [ More info ]
|
  |
|
831960 - Fuse Cover [ More info ]
|
| #16 | 865202T | RELAY (1 required per assembly) |
  |
86-865202T - Relay [ More info ] Unavailable |
|
  |
|
18-5851 - Relay, 86-865202T [ More info ]
|
  |
|
86-8M0210756 - RELAY [ More info ]
|
| #17 | 832969T20 | FUSE-20 AMP @5 (3 required per assembly) — Replaces: 83296920 |
  |
|
88-832969T20 - Fuse - Yellow - 20 Amp [ More info ]
|
| #18 | 899719T01 | BRACKET MOUNTING (1 required per assembly) — Replaces: 805368T |
  |
|
899719T01 - Bracket [ More info ]
|
| #19 | 11178A01 | BREAKER-CIRCUIT (1 required per assembly) — Replaces: 806950 |
  |
|
88-11178A01 - Circuit Breaker [ More info ]
|
| #20 | 26996 | LOCKWASHER (#10) STAINLESS STEEL (2 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #21 | 68513 | SCREW (#10-32 X .375) STAINLESS STEEL (2 required per assembly) |
  |
|
10-68513 - Screw [ More info ]
|
| #22 | 57583T | SCREW @5 (2 required per assembly) — Replaces: 57583 |
  |
|
10-57583T - Screw - Priced Individually [ More info ]
|
| #23 | 8M0185622 | SOLENOID STARTER (1 required per assembly) — Replaces: 96158T |
  |
|
8M0185622 - Solenoid, Starter or Trim [ More info ]
|
  |
|
18-5817 - Solenoid 89-96158 [ More info ]
|
  |
|
89-02718 - Solenoid, 89-96158T [ More info ]
|
  |
|
SW058 - Solenoid [ More info ]
|
| #24 | 26992 | LOCKWASHER (.250) STAINLESS STEEL (2 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #25 | 26419 | NUT (#8-32) BRASS (2 required per assembly) |
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
| #26 | 805564 | SCREW @5 (1 required per assembly) |
  |
|
10-805564 - Screw [ More info ]
|
| #27 | 26995 | LOCKWASHER @5 (2 required per assembly) |
  |
|
13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable |
| #28 | 26419 | NUT @5 (2 required per assembly) |
| #29 | 97861 | INSULATOR STARTER SOLENOID (1 required per assembly) |
  |
|
85-97861 - Insulator [ More info ]
|
| #30 | 816492A15 | ALARM KIT (1 required per assembly) |
  |
|
816492A15 - Alarm Kit [ More info ]
|
| #31 | 95084A9 | CABLE ASSY (1 required per assembly) |
  |
|
84-95084A 9 - Cable Assembly [ More info ]
|
| #32 | 8M0207796 | FUSE-20 AMP @5 (1 required per assembly) — Replaces: 79091 |
  |
|
888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ]
|
| #33 | 95084A10 | CABLE ASSY (1 required per assembly) |
  |
84-95084A10 - Cable Assembly [ More info ] Unavailable |
|
  |
|
84-8M0207788 - CABLE ASSY [ More info ] Unavailable |
| #34 | 864337A1 | CONNECTOR BLACK BRAVO SHIFT INTERRUPT JUMPER (Black Wire) (1 required per assembly) |
  |
|
864337A 1 - Connector [ More info ]
|
| #35 | 8M0068784 | OIL PRESSURE SENDER OIL (1 required per assembly) — Replaces: 815425T |
  |
|
8M0068784 - Sender Assembly [ More info ]
|
  |
|
18-5899 - Sender, 982650, 815425T [ More info ]
|
  |
|
75-24301 - Mercruiser and OMC Oil Pressure Sender [ More info ]
|
  |
|
75-24301 - Mercruiser and OMC Oil Pressure Sender [ More info ]
|
| #35 | 37293T | SENDER ASSEMBLY OIL (Dual Station) (1 required per assembly) |
  |
|
37293T - Oil Pressure Sender [ More info ]
|
| #36 | 8M6000623 | SENSOR WATER PRESSURE PRESSURE (Power Steering Cooler) (1 required per assembly) — Replaces: 8818793, 881879010 |
  |
8M6000623 - Sensor [ More info ] Unavailable |
|
  |
|
71-8M0157742 - Water Pressure Sensor 50PSI [ More info ]
|
| #36 | 881879T11 | SENSOR-PRESSURE (Oil) (1 required per assembly) |
  |
|
881879T11 - Pressure Sensor [ More info ]
|
| #37 | 8M6003194 | SENSOR-KNOCK (1 required per assembly) — Replaces: 878187 |
  |
|
8M6003194 - Knock Sensor [ More info ]
|
| #38 | 863711 | BRACKET CIRCUIT BREAKER (1 required per assembly) |
  |
|
863711 - Bracket [ More info ]
|
| #39 | 8M3000055 | CAP WEATHER - FEMALE (10 PIN) WEATHER PROOF (10 PIN TRANSOM HARNESS) (1 required per assembly) — Replaces: 891735 |
  |
|
8M3000055 - Female Weather Cap [ More info ]
|
| #40 | 812733A2 | HARNESS ASSEMBLY EXTENSION (LUBE BOTTLE) (1 required per assembly) |
  |
|
84-812733A 2 - Harness [ More info ]
|
