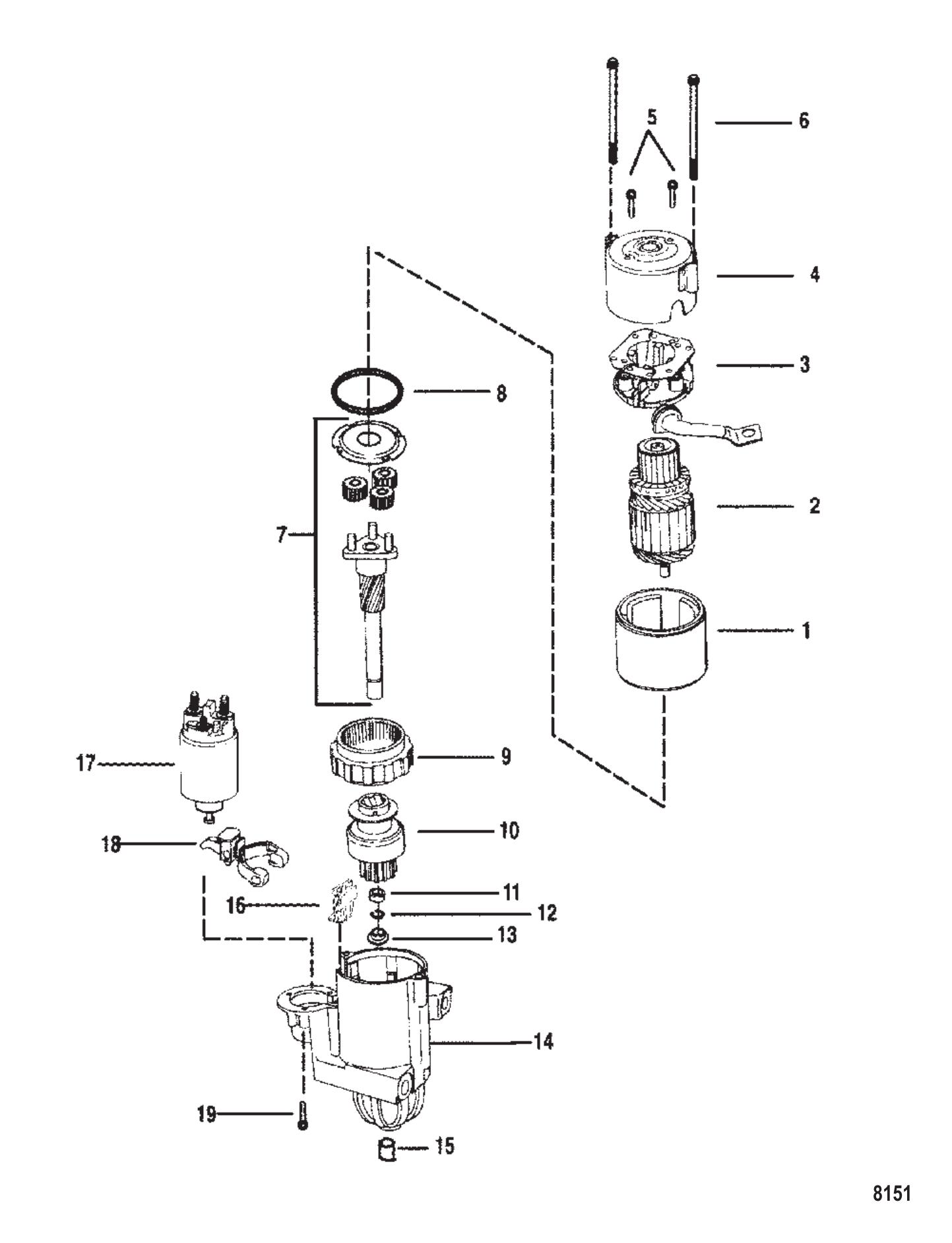

Parts for 3.0L GM 181 I / L4 3.0L (181 Cu In) L4 GM MerCruiser Engines - Gas Starter Motor Delco Remy Pg-260 -2.87 Inch Diameter End Cap
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 806965A2 | STARTER ASSY (1 required per assembly) — Replaces: 806963A2, 806963A4 |
  |
50-806965A 2 - Starter [ More info ] Unavailable |
|
  |
50-806965A 4 - Starter Assembly [ More info ] Unavailable |
|
  |
|
50-8M0090697 - Starter Motor [ More info ]
|
  |
|
18-5919-1 - Inboard Starter, Late Model GM 12-3/4 Inch Flywheel [ More info ]
|
  |
|
18-5911 - Starter, 60-5119 [ More info ]
|
  |
|
30460 - Starter, 50-806963A2, Straight Across Bolt Pattern [ More info ]
|
| #2 | 809454 | ARMATURE (1 required per assembly) |
  |
|
809454 - ARMATURE NLA [ More info ] Unavailable |
| #3 | 809453 | HOLDER BRUSH AND SPRING (1 required per assembly) |
  |
|
809453 - HOLDER Brush And NLA [ More info ] Unavailable |
| #4 | 809452 | FRAME (1 required per assembly) |
  |
|
809452 - FRAME NLA [ More info ] Unavailable |
| #5 | 809451 | SCREW (2 required per assembly) |
  |
|
10-809451 - SCREW NLA [ More info ] Unavailable |
| #6 | 809450 | THRU BOLT (2 required per assembly) |
  |
|
10-809450 - THRU BOLT NLA [ More info ] Unavailable |
| #7 | 809461 | SHAFT AND GEAR (1 required per assembly) |
  |
|
809461 - SHAFT AND GEAR NLA [ More info ] Unavailable |
| #8 | 809460 | GASKET (1 required per assembly) |
  |
|
27-809460 - GASKET NLA [ More info ] Unavailable |
| #9 | 809455 | GEAR (1 required per assembly) |
  |
|
43-809455 - GEAR NLA [ More info ] Unavailable |
| #10 | 809456 | DRIVE (1 required per assembly) |
  |
|
809456 - DRIVE NLA [ More info ] Unavailable |
| #11 | 33291 | COLLAR (1 required per assembly) |
  |
|
|
| #12 | 33290 | RING RETAINING (1 required per assembly) |
  |
|
53-33290 - Ring - Retaining - Priced Individually [ More info ]
|
| #13 | 809457 | THRUST COLLAR (1 required per assembly) |
  |
|
23-809457 - Thrust Collar, NLA [ More info ] Unavailable |
| #14 | 809458T | DRIVE HOUSING (1 required per assembly) — Replaces: 809458 |
  |
|
809458T - DRIVE Housing, NLA [ More info ] Unavailable |
| #15 | 814476 | BUSHING (1 required per assembly) |
  |
|
23-814476 - Bearing [ More info ]
|
| #16 | 809465 | GROMMET (1 required per assembly) |
  |
|
25-809465 - GROMMET NLA [ More info ] Unavailable |
| #17 | 809463A1 | SOLENOID KIT (1 required per assembly) — Replaces: 809462, 8094631 |
  |
|
809463A 1 - Solenoid Kit [ More info ]
|
  |
|
18-5811-1 - Solenoid - OMC/Volvo [ More info ]
|
  |
|
SW463 - Solenoid, 809463A1, 3850216 [ More info ]
|
| #18 | 809464 | LEVER (1 required per assembly) |
  |
|
809464 - LEVER NLA [ More info ] Unavailable |
| #19 | 809466 | SCREW (3 required per assembly) |
  |
|
10-809466 - SCREW NLA [ More info ] Unavailable |
