Parts for 3.0L GM 181 I / L4 3.0L (181 Cu In) L4 GM MerCruiser Engines - Gas Starter Motor (Pg260f1)

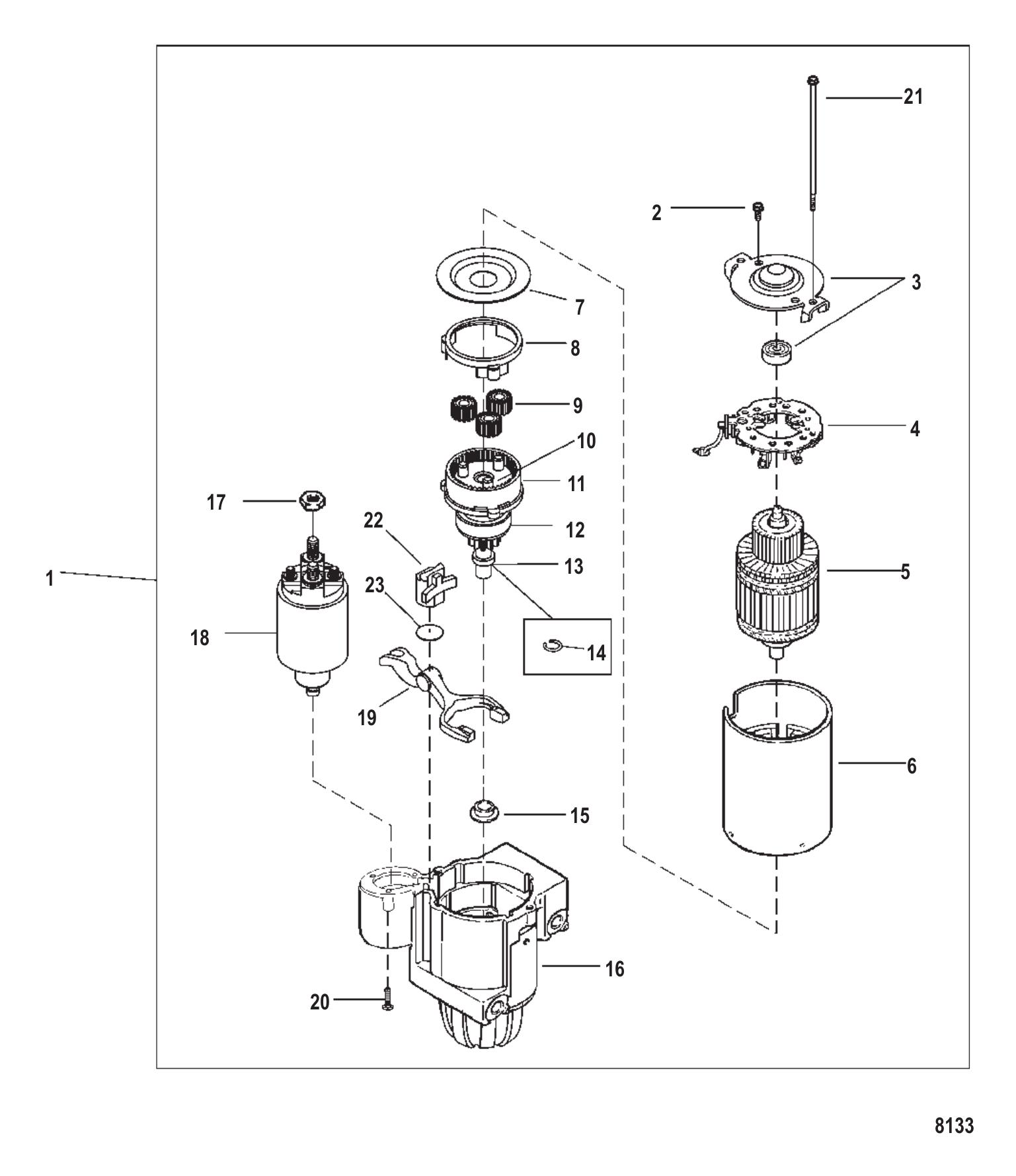

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 863007A1 | STARTER MOTOR ASSEMBLY PG260F1 (1 required per assembly) — Replaces: 807904A1 |
  |
|
50-863007A 1 - Starter, Offset Bolt Pattern. [ More info ]
|
  |
|
18-6275-1 - Inboard Starter [ More info ]
|
  |
|
18-5913-1 - Starter, 50-812428A3, Gear Reduction, Offset Bolt Pattern [ More info ]
|
  |
|
30460 - Starter, 50-806963A2, Straight Across Bolt Pattern [ More info ]
|
  |
|
30433 - Premium Inboard Starter, Staggered Bolt Pattern [ More info ]
|
| #2 | NSS | NOT SOLD SEPARATE SCREW (2 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #3 | NSS | NOT SOLD SEPARATE END FRAME AND BEARING (1 required per assembly) |
| #4 | 803002 | BRUSH/HOLDER ASSEMBLY (1 required per assembly) |
  |
|
803002 - Brush Holder, NLA [ More info ] Unavailable |
| #5 | NSS | NOT SOLD SEPARATE ARMATURE (1 required per assembly) |
| #6 | NSS | NOT SOLD SEPARATE FIELD FRAMES (WITH PERMANENT MAGNETS) (1 required per assembly) |
| #7 | NSS | NOT SOLD SEPARATE COVER (1 required per assembly) |
| #8 | NSS | NOT SOLD SEPARATE SHIELD (1 required per assembly) |
| #9 | NSS | NOT SOLD SEPARATE PLANETARY GEARS (3 required per assembly) |
| #10 | NSS | NOT SOLD SEPARATE SHAFT (1 required per assembly) |
| #11 | NSS | NOT SOLD SEPARATE GEAR (1 required per assembly) |
| #12 | 803003 | DRIVE (1 required per assembly) |
  |
|
803003 - DRIVE ASSY,NLA [ More info ] Unavailable |
| #13 | 33291 | COLLAR (1 required per assembly) |
  |
|
|
| #14 | 33290 | RING RETAINING (1 required per assembly) |
  |
|
53-33290 - Ring - Retaining - Priced Individually [ More info ]
|
| #15 | NSS | NOT SOLD SEPARATE COLLAR, THRUST (1 required per assembly) |
| #16 | 803001T | HOUSING DRIVE (1 required per assembly) |
  |
|
803001T - Starter Housing,NLA [ More info ] Unavailable |
| #17 | 806949 | NUT (M8-1.5) (2 required per assembly) |
  |
|
11-806949 - Nut (M8 X 1.5) [ More info ]
|
| #18 | 809463A1 | SOLENOID KIT (1 required per assembly) |
  |
|
809463A 1 - Solenoid Kit [ More info ]
|
  |
|
18-5811-1 - Solenoid - OMC/Volvo [ More info ]
|
  |
|
SW463 - Solenoid, 809463A1, 3850216 [ More info ]
|
| #19 | NSS | NOT SOLD SEPARATE LEVER (1 required per assembly) |
| #20 | NSS | NOT SOLD SEPARATE SCREW (3 required per assembly) |
| #21 | 803005 | THRU BOLT (1 required per assembly) |
  |
|
10-803005 - Thru Bolt, NLA [ More info ] Unavailable |
| #21 | 803004 | THRU BOLT (1 required per assembly) |
  |
|
16-803004 - Stud w/ Hex Should [ More info ]
|
| #22 | NSS | NOT SOLD SEPARATE RUBBER GROMMET (1 required per assembly) |
| #23 | NSS | NOT SOLD SEPARATE DISC (1 required per assembly) |
