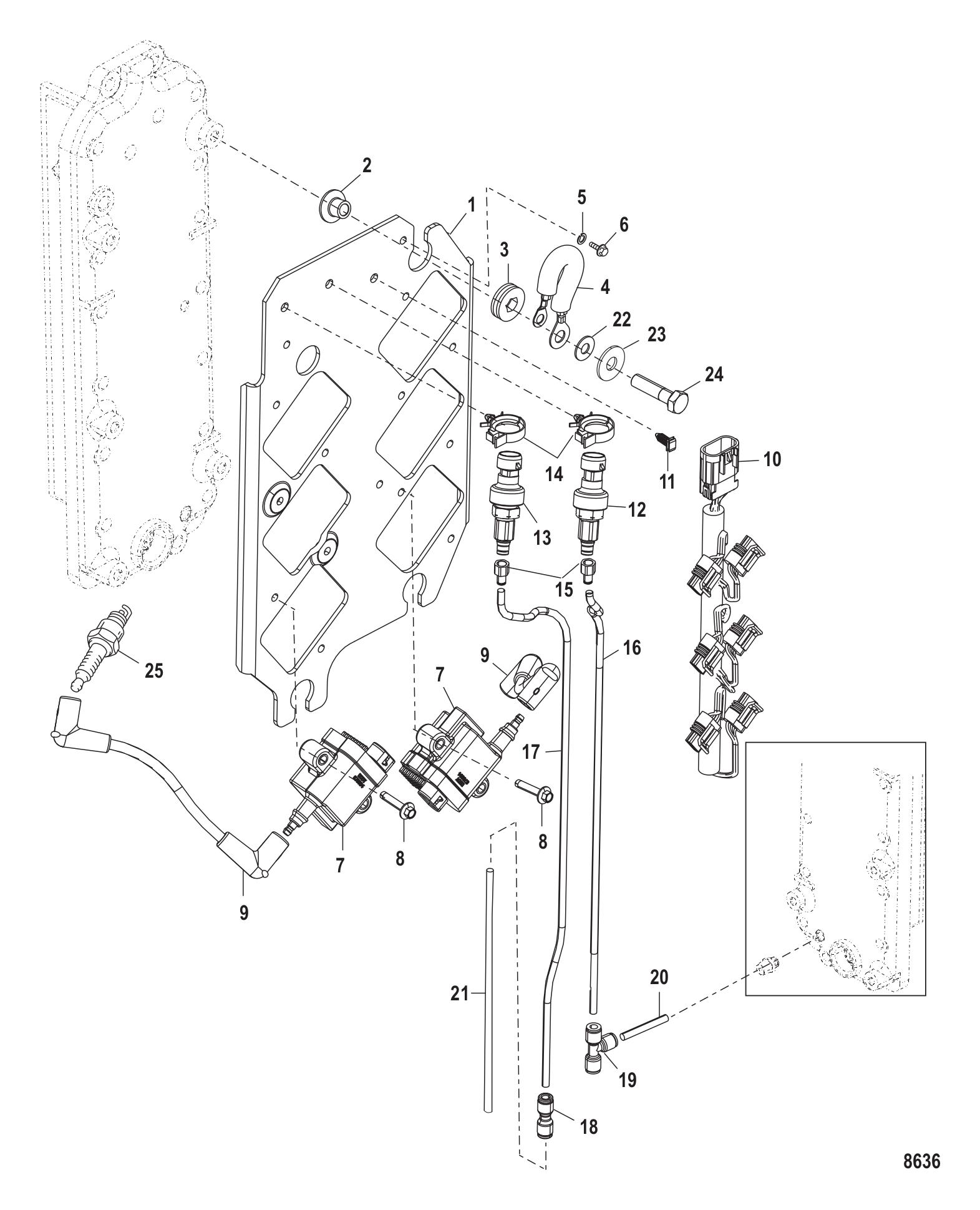

Coil Plate Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	NSS	NOT SOLD SEPARATE COIL PLATE ASSEMBLY-COMPLETE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#-	879346A51	HARNESS REPAIR KIT (1 required per assembly) — Replaces: 854839T02
		879346A51 - KT-5 Pin Delphi [ More info ] $25.09 5 In Stock.
#1	880188F1	PLATE COIL (1 required per assembly)
		880188F 1 - Coil Plate [ More info ] $66.67 Available to Order: Shipping delay up to 10 days.
#2	8502341	BUSHING (4 required per assembly)
		23-850234 1 - Bushing [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#3	833155	GROMMET (4 required per assembly)
		25-833155 - Grommet [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#4	858414A1	CABLE ASSEMBLY BRAIDED (2 required per assembly)
		84-858414A 1 - Cable [ More info ] $19.49 Available to Order: Shipping delay up to 10 days.
#5	8M0204649	WASHER @10 (3 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#6	82129110	SCREW (M6 X 10) (3 required per assembly)
		10-821291 10 - Screw [ More info ] $1.10 1 In Stock.
#7	8M0077471	IGNITION COIL (6 required per assembly) — Replaces: 879984A1, 879984T01
		300-8M0077471 - Ignition Coil [ More info ] $196.49 In Stock
#8	82129130	SCREW (M6 X 30) (12 required per assembly)
		10-821291 30 - Screw [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#9	881908T	CABLE SET (1 required per assembly)
		84-881908T - Cable Set, Six Wires [ More info ] $137.49 In Stock
		18-28086 - Plug Wire Set 84-881908T, 6 Wires [ More info ] $122.89 In Stock
		18-28085 - Plug Wire Set 84-881908T, 4 Wires Only [ More info ] $81.28 In Stock
		18-28083 - Wire, Plug 84-881908T, 1 Wire [ More info ] $24.20 In Stock
#10	882757T02	HARNESS ASSEMBLY COIL (1 required per assembly)
		84-882757T02 - Coil Harness [ More info ] $204.49 Available to Order: Shipping delay up to 10 days.
#11	828991T	CLIP (1 required per assembly) — Replaces: 828991
		54-828991T - Clip [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#12	881879A7	SENSOR KIT (0-50 PSI) TAN (1 required per assembly)
		881879A 7 - Sensor Kit [ More info ] Unavailable
#13	881879T11	SENSOR PRESSURE (0 - 100 PSI) (1 required per assembly) — Replaces: 881879011
		881879T11 - Pressure Sensor [ More info ] $196.99 $189.49 In Stock
#14	883066	CLIP (.865) (2 required per assembly)
		54-883066 - Clip [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#15	8M0207782	SPACER (2 required per assembly) — Replaces: 892403
		22-8M0207782 - SPACER [ More info ] Unavailable
#16	85978571	TUBING (52.00 INCHES BULK) (CUT TO 12 INCHES) (1 required per assembly)
		32-859785 71 - Hose - 52 Inch [ More info ] $50.49 Available to Order: Shipping delay up to 10 days.
#17	85944975	TUBING (72.00 INCHES BULK) (CUT TO 14-1/2 INCHES) (1 required per assembly)
		32-859449 75 - Tubing - 72 Inches [ More info ] $55.49 Available to Order: Shipping delay up to 10 days.
#18	859747	COUPLER (1 required per assembly)
		22-859747 - Fitting [ More info ] $11.20 10+ In Stock.
		228M0214971 - Fitting [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#19	875207	TEE FITTING (1 required per assembly)
		22-875207 - Fitting [ More info ] $15.19 Available to Order: Shipping delay up to 10 days.
#20	85978571	TUBING (52.00 INCHES BULK) (CUT TO 1-1/2 INCHES) (1 required per assembly)
#21	85944975	TUBING (72.00 INCHES BULK) (CUT TO 52 INCHES) (1 required per assembly)
#22	8M0042642	WASHER @5 (2 required per assembly) — Replaces: 70132
		12-8M0042642 - Washer - Priced Individually [ More info ] $1.80 6 In Stock.
#23	49436	WASHER @5 (4 required per assembly)
		12-49436 - Washer - Priced Individually [ More info ] $0.90 $0.72 2 In Stock.
#24	60411	SCREW @5 (4 required per assembly)
		10-60411 - Screw - Priced Individually [ More info ] $1.50 $1.20 1 In Stock.
#25	938	SP #QL78YC @4 (6 required per assembly) — Replaces: 14814548, 14814Q
		33-938 - Spark Plug - QL78YC - Priced Individually [ More info ] Unavailable
		QL78YC - Champion Spark Plug ( #938M) [ More info ] $7.73 10+ In Stock.
