Parts for 250 Sport XS 2-Stroke DFI Mercury Optimax Outboard Motor Trim Pump & Mounting Brackets

Revise Search: Outboard > 2-Stroke DFI Mercury Optimax Outboard > 250 Sport XS > 1E002342 - 1E051823 - USA > Trim Pump & Mounting Brackets

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Trim Pump & Mounting Brackets

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

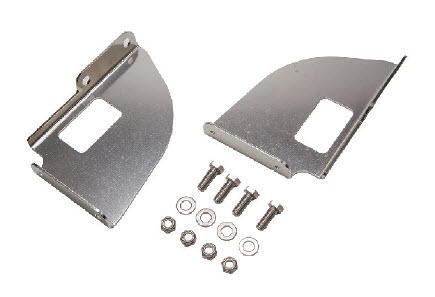

#-	842109A01	MOUNT KIT-FLOOR (1 required per assembly)
		842109A01 1.95 Kit -floor [ More info ] Unavailable
#-	87762A04	BRACKET ASSY (1 required per assembly)
		87762A04 - Bracket Assembly [ More info ] $155.49 Available to Order: Shipping delay up to 10 days.
#-	49590	PLUG INVERTED FLARE (.437) (1 required per assembly)
		22-49590 - Plug [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#1	843017A03	PUMP ASSY-TRIM (1 required per assembly) — Replaces: 843017T03
		843017A03 - Trim Pump Assembly [ More info ] $2,035.49 Available to Order: Shipping delay up to 10 days.
#2	843017T01	PUMP ASSEMBLY TRIM (1 required per assembly)
		843017T01 - Trim Pump Assembly [ More info ] $1,285.45 Available to Order: Shipping delay up to 10 days.
#3	865448A01	CAP OIL RESERVOIR (1 required per assembly)
		36-865448A01 - Cap - Oil Reservoir [ More info ] Unavailable
		36-8M0188327 - CAP-OIL RESERVOIR [ More info ] Unavailable
#4	808727	CONNECTOR (.50-20 UNF TO .4375-24 INVERTED FLARE) (2 required per assembly)
		22-808727 - Connector [ More info ] $38.49 In Stock
#5	818200	FITTING (1 required per assembly)
		22-818200 - Fitting [ More info ] $25.60 1 In Stock.
#6	861680	INSULATOR (1 required per assembly)
		85-861680 - Insulator [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
#7	48409	SCREW (#10-16 X .625) STAINLESS STEEL (1 required per assembly)
		10-48409 - Screw - Priced Individually [ More info ] $2.49 9 In Stock.
#8	79139A12	CABLE ASSEMBLY RED-POSITIVE (1 required per assembly)
		84-79139A12 - Wire Assembly [ More info ] $74.58 3 In Stock.
#9	816311T	TIE STRAP (8.00 INCHES) (2 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#10	79023T10	FUSE ASSEMBLY 110 AMPERE (1 required per assembly) — Replaces: 79023A10
		88-79023T10 - Fuse, 110 Amp [ More info ] $45.99 In Stock
#11	94275	LINK (1 required per assembly)
		94275 - Link, Solenoid to Solenoid [ More info ] $9.79 Available to Order: Shipping delay up to 10 days.
#12	25908	WASHER (.265 X .812 X .0625) (1 required per assembly)
		12-25908 - Washer, (.265 X .812 X .0625) [ More info ] $1.70 $0.34 10+ In Stock.
#13	26992	LOCKWASHER (.250) STAINLESS STEEL (1 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#14	21825	NUT (.250-28) (1 required per assembly)
		11-21825 - Nut, (1/4x28) [ More info ] $1.70 10+ In Stock.
#15	8M0185622	SOLENOID (2 required per assembly) — Replaces: 96158T
		8M0185622 - Solenoid, Starter or Trim [ More info ] $41.99 2 In Stock.
		18-5817 - Solenoid 89-96158 [ More info ] $28.99 $27.57 10+ In Stock.
		89-02718 - Solenoid, 89-96158T [ More info ] $21.49 $19.11 Available to Order: Shipping delay up to 10 days.
		SW058 - Solenoid [ More info ] $27.59 10+ In Stock.
#16	826709104	NUT (#8-32) STAINLESS STEEL (4 required per assembly)
		11-826709104 - Nut, (#8-32) [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#17	73286	SCREW (.250-20 X .500) STAINLESS STEEL (4 required per assembly)
		10-73286 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#18	826709108	NUT (.250-20) STAINLESS STEEL (4 required per assembly)
		11-826709108 - Nut, (.250-20) Stainless Steel [ More info ] $0.90 Available to Order: Shipping delay up to 10 days.
#19	846866	BRACE (1 required per assembly)
		846866 - Brace [ More info ] $54.08 Available to Order: Shipping delay up to 10 days.
#20	826709112	NUT (.375-16) STAINLESS STEEL (2 required per assembly)
		11-826709112 - Nut, (.375-16) Stainless Steel [ More info ] $3.02 10+ In Stock.
#21	79147A09	HARNESS ASSEMBLY (1 required per assembly)
		84-79147A09 - Harness Assembly [ More info ] $118.99 Available to Order: Shipping delay up to 10 days.
#22	57807	SCREW (#10-16 X .750) STAINLESS STEEL (2 required per assembly)
		10-57807 - Screw - Priced Individually [ More info ] $7.39 $5.92 3 In Stock.
#23	79138A9	CABLE ASSEMBLY (6.00 FEET) BLACK-NEGATIVE (1 required per assembly)
		84-79138A 9 - Wire Assembly [ More info ] $72.99 $69.92 5 In Stock.
#24	846673	WASHER (.265 X .500 X .060) STAINLESS STEEL (1 required per assembly)
		12-846673 - Washer, (.265 X .500 X .060) Stainless Steel [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#25	86322A15	CABLE ASSEMBLY (5.50 INCHES) BLACK (1 required per assembly)
		84-86322A15 - Wire Assembly [ More info ] $8.99 2 In Stock.
#26	86322A24	CABLE ASSEMBLY (4.00 INCHES) (1 required per assembly)
		84-86322A24 - Cable Assembly [ More info ] $9.69 Available to Order: Shipping delay up to 10 days.
#27	841226001	BRACKET (1 required per assembly)
		841226001 - Bracket [ More info ] Unavailable
		8M0192208 - BRACKET [ More info ] Unavailable
#28	844417	SCREW (.375-16 X .875) STAINLESS STEEL (4 required per assembly)
		10-844417 - Screw [ More info ] $1.82 Available to Order: Shipping delay up to 10 days.
#29	848017A07	HARNESS ASSY TRIM (1 required per assembly)
		84-848017A07 - Harness Assembly Trim [ More info ] $216.92 Available to Order: Shipping delay up to 10 days.
#30	65017A14	HARNESS ASSY (1 required per assembly)
		84-65017A14 - Harness Assembly [ More info ] $18.00 1 In Stock.
#31	79146	RETAINER (2 required per assembly)
		79146 - Retainer [ More info ] $5.59 2 In Stock.
#32	842031T02	SWITCH KIT-TRIM (1 required per assembly)
		87-842031T02 - Trim Switch Kit [ More info ] $174.31 Available to Order: Shipping delay up to 10 days.
