Parts for 90, 900 (6 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Power Trim Components (with Circuit Breaker & Fuse)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 90, 900 (6 Cyl.) > 5594657 - 6436122 - USA > Power Trim Components (with Circuit Breaker & Fuse)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

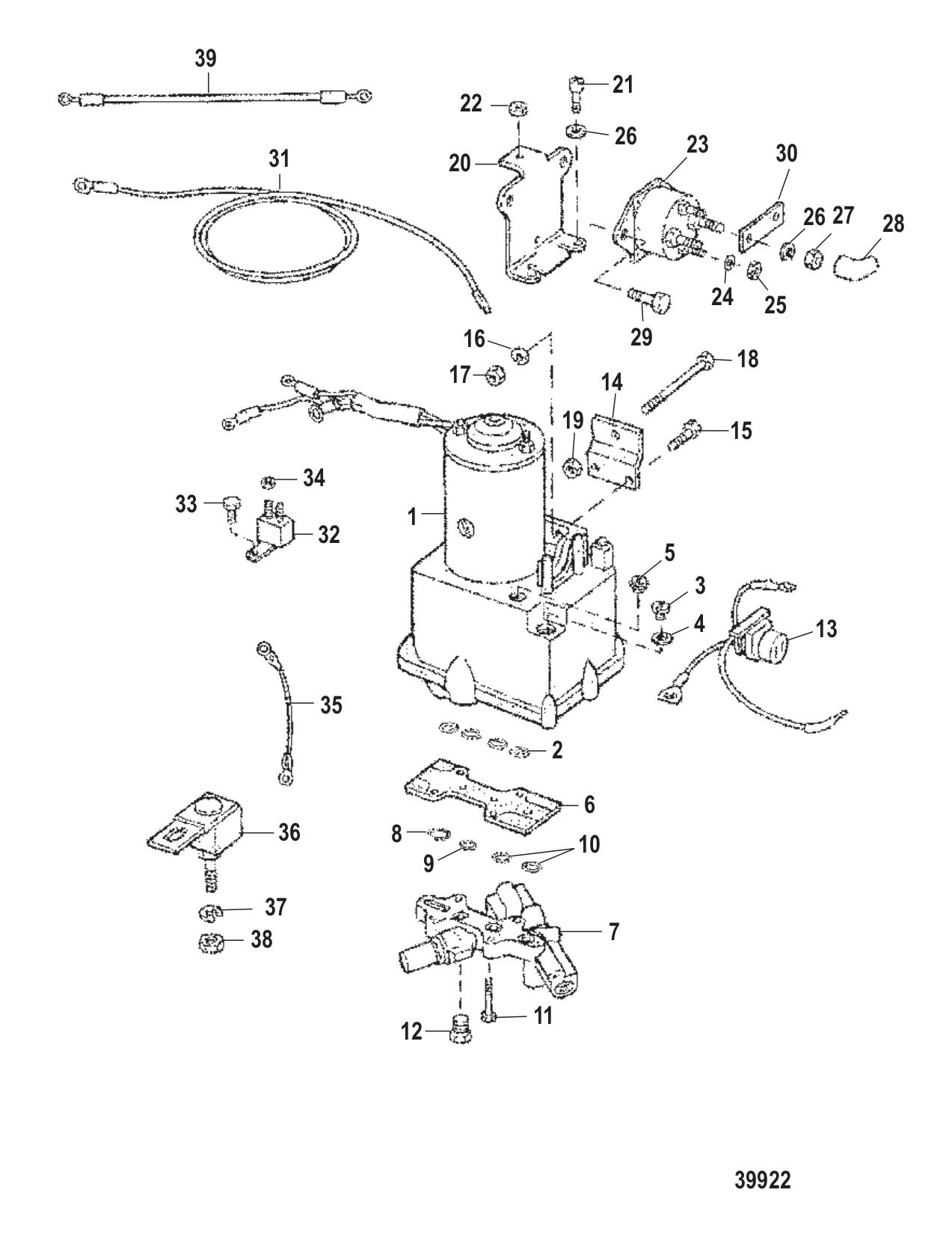

Power Trim Components (with Circuit Breaker & Fuse)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	92975A32	PUMP KIT-TRIM (PLASTIC RESERVOIR) (1 required per assembly) — Replaces: 92975A6, 92975A28
		92975A32 -Trim Pump Kit [ More info ] $1,073.49 Available to Order: Shipping delay up to 10 days.
		300-06763 - Trim Motor Reservoir, 67914A2 [ More info ] $277.16 In Stock
#2	48171	O-RING (.364. X .070) MANIFOLD PLATE (4 required per assembly)
		25-48171 - O-Ring - Priced Individually [ More info ] $1.70 8 In Stock.
		18-7168-9 - O-Ring (PK5) 202893, 25-48171 [ More info ] $5.64 Available to Order: Shipping delay up to 10 days.
#3	79953Q2	SCREW KIT (.375-16 X .250) DRAIN FILLER - HYDRAULIC PUMP (1 required per assembly) — Replaces: 79953, 79953A2
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 8 In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 10+ In Stock.
#4	191832	WASHER SEALING - FILLER SCREW (1 required per assembly) — Replaces: 20260, 19183
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 5 In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 8 In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#5	62269	SCREW (#10-32 X .437) VENT - HYDRAULIC PUMP (1 required per assembly) — Replaces: 38257
		10-62269 - Screw, NLA [ More info ] Unavailable
#6	45336	PLATE MANIFOLD (1 required per assembly)
		45336 - Plate [ More info ] $32.80 8 In Stock.
#7	45197A2	VALVE ASSY (1 required per assembly)
		45197A 2 - Valve Assembly, NLA [ More info ] Unavailable
#8	45254	O-RING CONTROL VALVE (3/4&QUOT; O.D.) (1 required per assembly)
		25-45254 - O-Ring, Control Valve (3/4 O.d.) [ More info ] $1.99 10+ In Stock.
#9	48171	O-RING (.364. X .070) CONTROL VALVE (1/2&QUOT; O.D.) (1 required per assembly)
#10	45253	O-RING CONTROL VALVE (5/8&QUOT; O.D.) (2 required per assembly)
		25-45253 - O-Ring, Control Valve (5/8 O.D.) [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
		18-7165-9 - O-Ring (PK5) , 0304174 [ More info ] $10.38 Available to Order: Shipping delay up to 10 days.
#11	56500	SCREW (.250-28 X 1.250) VALVE AND MANIFOLD PLATE TO PUMP (4 required per assembly)
		10-56500 - Screw, NLA [ More info ] $2.89 $1.63 10+ In Stock.
#12	46008	PLUG CONTROL VALVE (1/2-20&QUOT;) (2 required per assembly)
		22-46008 - Plug [ More info ] $4.49 $3.60 10+ In Stock.
#13	79147A3	HARNESS ASSY (1 required per assembly) — Replaces: 79147A1
		84-79147A 3 - Harness Assembly [ More info ] $100.86 1 In Stock.
#14	45377T	BRACKET MOUNTING (2 required per assembly) — Replaces: 45377
		45377T - Bracket, NLA [ More info ] $6.99 $5.91 10 In Stock.
#15	35386	SCREW (.312-18 X 1.00) MOUNTING BRACKET TO HYDRAULIC PUMP (4 required per assembly) — Replaces: 24234
		10-35386 - Screw - Priced Individually [ More info ] $1.10 7 In Stock.
#16	39107	LOCKWASHER (.312-24) MOUNTING BRACKET SCREW (4 required per assembly)
		13-39107 - LockWasher - Priced Individually [ More info ] $1.50 10+ In Stock.
#17	21908	NUT (.312-18) CAD PLATED MOUNTING BRACKET SCREW (4 required per assembly)
		11-21908 - Nut (5/16x18) [ More info ] $3.19 10+ In Stock.
#18	68298	BOLT (.375-16 X 3.250) HYDRAULIC PUMP TO BOAT (2 required per assembly)
		10-68298 - Screw, NLA [ More info ] $8.76 $7.42 10+ In Stock.
#19	82671112	NUT (.375-16) HYDRAULIC PUMP BOLT (2 required per assembly) — Replaces: 99405
		11-826711 12 - Nut, (.375-16) [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#20	94279	BRACKET MOUNTING, STARTER SOLENOID (1 required per assembly)
		94279 - Bracket, NLA [ More info ] Unavailable
#21	28638	SCREW (.250-20 X .750) MOUNTING BRACKET TO HYDRAULIC PUMP (2 required per assembly) — Replaces: 48063
		10-28638 - Screw - Priced Individually [ More info ] $3.01 $2.56 10+ In Stock.
#22	24656	NUT MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT (1 required per assembly)
		11-24656 - Nut, NLA [ More info ] $1.66 $1.40 10 In Stock.
#23	8M0185622	SOLENOID (2 required per assembly) — Replaces: 96158, 96158T
		8M0185622 - Solenoid, Starter or Trim [ More info ] $41.99 In Stock
		18-5817 - Solenoid 89-96158 [ More info ] $28.99 $27.57 10+ In Stock.
		89-02718 - Solenoid, 89-96158T [ More info ] $21.49 $19.11 Available to Order: Shipping delay up to 10 days.
		SW058 - Solenoid [ More info ] $27.59 10+ In Stock.
#24	26995	LOCKWASHER (#8) STAINLESS STEEL SOLENOID TERMINAL (4 required per assembly)
		13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable
#25	26419	NUT (#8-32) BRASS SOLENOID TERMINAL (4 required per assembly)
		11-26419 - Nut (#8-32) (brass) [ More info ] $1.70 10+ In Stock.
#26	26992	LOCKWASHER (.250) STAINLESS STEEL SOLENOID TERMINAL (4 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#27	94330	NUT (.250-20) BRASS SOLENOID TERMINAL (4 required per assembly)
		11-94330 - Nut, Brass (1/4-20) [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#28	861680	INSULATOR RUBBER - STARTER SOLENOID TERMINAL (4 required per assembly) — Replaces: 96535
		85-861680 - Insulator [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
#29	41508	SCREW (.250-20 X .500) STAINLESS STEEL STARTER SOLENOID TO MOUNTING BRACKET (2 required per assembly) — Replaces: 91026
		10-41508 - Screw [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#30	94275	LINK SOLENOID TO SOLENOID (1 required per assembly)
		94275 - Link, Solenoid to Solenoid [ More info ] $9.79 Available to Order: Shipping delay up to 10 days.
#31	79139A13	CABLE ASSEMBLY BATTERY (POSITIVE) (1 required per assembly)
		84-79139A13 - Cable Assembly, NLA [ More info ] Unavailable
#31	79138A1	CABLE ASSEMBLY (NEGATIVE) (1 required per assembly)
		84-79138A 1 - Cable Assembly, NLA [ More info ] $25.00 $21.18 5 In Stock.
#32	8M0085705	BREAKER-CURCUIT (1 required per assembly) — Replaces: 79149
		888M0085705 - Circuit Breaker [ More info ] $40.99 Available to Order: Shipping delay up to 10 days.
#33	807754	SCREW (#10-24 X .38) CIRCUIT BREAKER (2 required per assembly) — Replaces: 30009, 69014
		10-807754 - Screw - Priced Individually [ More info ] Unavailable
		108M0113176 - Screw - Priced Individually [ More info ] $1.10 1 In Stock.
#34	45076	NUT (#10-32) BRASS CIRCUIT BREAKER TERMINAL (2 required per assembly)
		11-45076 - Nut (#10-32) (brass) [ More info ] $1.80 10+ In Stock.
#35	87379A5	WIRE SOLENOID TO CIRCUIT BREAKER (RED) (1 required per assembly)
		84-87379A 5 - Wire Assembly, NLA [ More info ] Unavailable
#36	79023T90	FUSE ASSY-90 AMP (1 required per assembly) — Replaces: 79023A90
		88-79023T90 - Fuse Assembly -90 Amp [ More info ] $39.49 $38.60 Available to Order: Shipping delay up to 10 days.
#37	96457	WASHER PHENOLIC (.27 X .81 X .062) FUSE TERMINAL (1 required per assembly)
		12-96457 - Phenolic Washer [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#38	21825	NUT (.250-28) FUSE TERMINAL (1 required per assembly)
		11-21825 - Nut, (1/4x28) [ More info ] $1.70 10+ In Stock.
#39	61600A9	WIRE STARTER SOLENOID (BLACK) (2 required per assembly)
		84-61600A 9 - Wire Assembly, NLA [ More info ] Unavailable
#--	48171	O-RING (.364. X .070) MANIFOLD PLATE (SEE REF. #2) (4 required per assembly)
