Parts for 45 Jet 2-Stroke Carbureted Mercury Outboard Motor Electrical Components (50 / 60)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 45 Jet > 0D000750 - 0G290584 - USA > Electrical Components (50 / 60)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

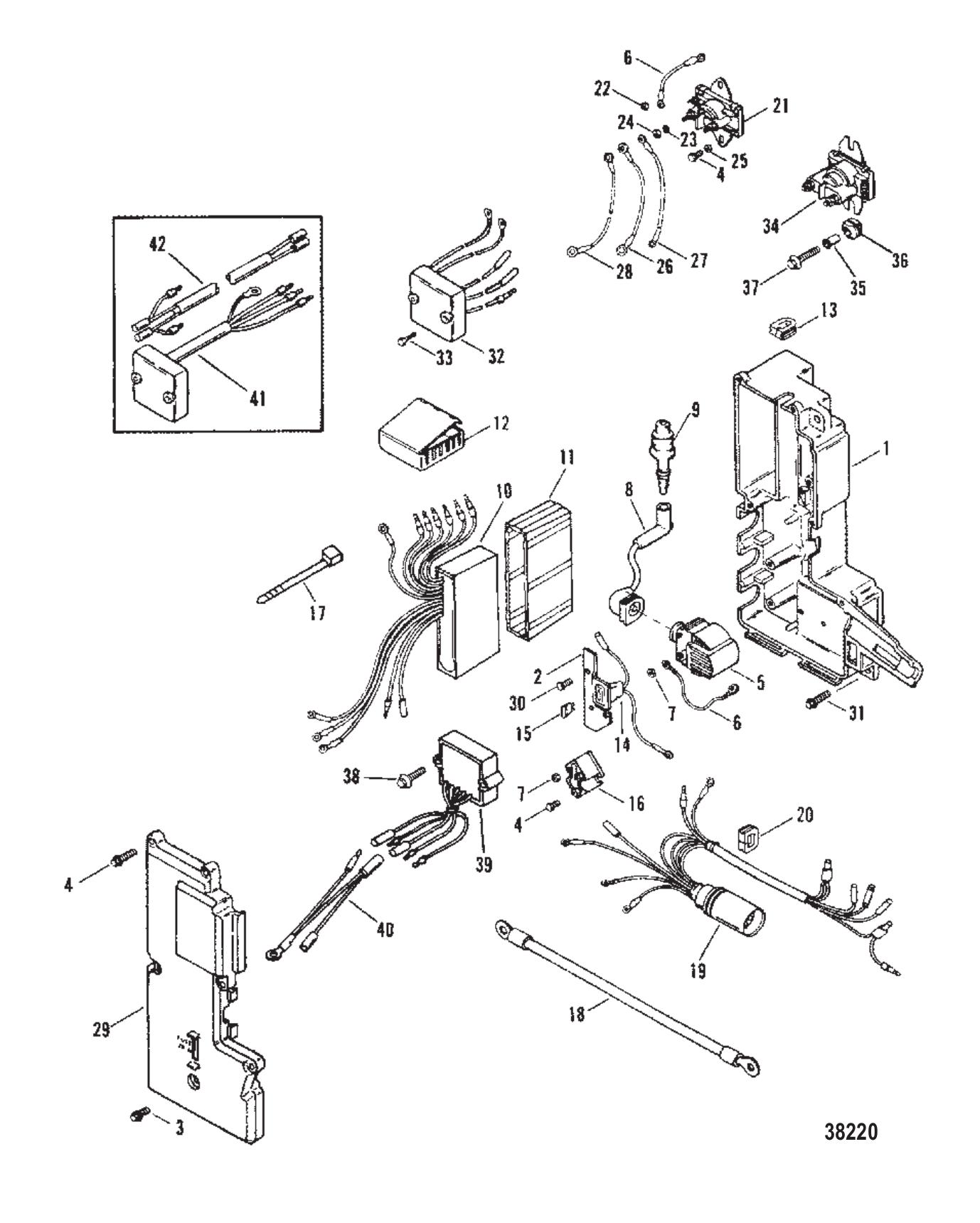

Electrical Components (50 / 60)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	19745A8	ELECTRICAL PLATE (W/ 6MM SCREW HOLES) (1 required per assembly)
		19745A 8 - ELECTRICAL PLATE ,NLA [ More info ] Unavailable
#2	814674A1	PLATE ASSEMBLY RETAINING (1 required per assembly)
		814674A 1 - Fuse Plate, NLA [ More info ] Unavailable
#3	8240631	SCREW (6MM) (1 required per assembly)
		10-824063 1 - Screw, NLA [ More info ] $1.98 $1.68 10+ In Stock.
#3	40011106	SCREW (M5 X 13) STAINLESS STEEL (USE W/REF. #39) (5MM) (1 required per assembly)
		10-40011106 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#4	824063	SCREW (6MM) (5 required per assembly)
		10-824063 - Screw, NLA [ More info ] $1.99 $1.68 10+ In Stock.
#4	40011109	SCREW (5MM) (5 OR 6 required per assembly)
		10-40011109 - Screw [ More info ] $2.89 $2.32 3 In Stock.
#5	832757A4	COIL KIT [0G116485] & Up (3 required per assembly) — Replaces: 7370A13, 7370A19
		339-832757A 4 - Ignition Coil [ More info ] Unavailable
		18-5186 - Ignition Coil 339-7370A13 [ More info ] $61.99 $58.62 9 In Stock.
		8M0230859 - Ignition Coil [ More info ] $124.33 2 In Stock.
#6	88807A6	WIRE ASSY (4 required per assembly)
		84-88807A 6 - Wire Assembly [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#7	45076	NUT @10 (9 required per assembly)
		11-45076 - Nut (#10-32) (brass) [ More info ] $1.80 10+ In Stock.
#8	821945A52	CABLE ASSY (1 required per assembly)
		84-821945A52 - Cable Assembly [ More info ] $100.26 1 In Stock.
#9	13686Q	NGK BU8H @10 (NGK #BU8H) (3 required per assembly) — Replaces: 136862
		33-13686Q - NGK BU8H - Priced Individually [ More info ] Unavailable
		BU8H - NGK Spark Plug, 6431 [ More info ] $7.18 10+ In Stock.
		L6VC - CHAMPION Spark Plug (#885M) [ More info ] $4.27 10+ In Stock.
#9	14103568	SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM) (3 required per assembly)
		33-14103568 - NGK BUZ8H - Priced Individually [ More info ] Unavailable
		BUZ8H - NGK Spark Plug, 7447 [ More info ] $19.24 10+ In Stock.
		33-896329885 - Spark Plug - L6VC - Priced Individually [ More info ] $21.59 Available to Order: Shipping delay up to 10 days.
#9	816737Q	NGK BP8HN-10@10 (NGK #BP8H-N-10) (3 required per assembly) — Replaces: 8167372
		33-816737Q - NGK BP8HN-10 - Priced Individually [ More info ] Unavailable
		BP8H-N-10 - NGK Spark Plug, 4838 [ More info ] $5.71 10+ In Stock.
#9	938	SP #QL78YC @4 (NGK #BPZ8H-N-10 - CANADA) (3 required per assembly) — Replaces: 8168372, 816837Q
		33-938 - Spark Plug - QL78YC - Priced Individually [ More info ] Unavailable
		QL78YC - Champion Spark Plug ( #938M) [ More info ] $7.73 10+ In Stock.
#10	19052A8	SWITCHBOX (1 required per assembly) — Replaces: 19052A5
		19052A 8 - Switch Box [ More info ] $439.99 Available to Order: Shipping delay up to 10 days.
		18-5791 - Switch Box Assembly 19052A8 [ More info ] $434.83 4 In Stock.
#11	813643	BOOT (1 required per assembly)
		813643 - Boot, NLA [ More info ] $6.04 $5.11 10+ In Stock.
#12	814760	RETAINER (OLD DESIGN) (1 required per assembly)
		814760 - Retainer,NLA [ More info ] Unavailable
#13	813742	GROMMET (1 required per assembly)
		25-813742 - Grommet, NLA [ More info ] Unavailable
#14	19637A2	SOCKET ASSEMBLY FUSE (1 RING/1 BULLET CONNECTOR) (1 required per assembly)
		88-19637A 2 - Socket, NLA [ More info ] $7.00 $5.93 10 In Stock.
#14	19637A3	SOCKET ASSEMBLY FUSE (2 BULLET CONNECTORS) (1 required per assembly)
		88-19637A 3 - Fuse Socket Assembly [ More info ] $36.99 $35.12 5 In Stock.
#15	812619	FUSE-YELLOW-20AMP (1 required per assembly)
		88-812619 - Fuse - Yellow - 20 Amp [ More info ] $4.69 10+ In Stock.
#16	8M0058226	RECTIFIER (OLD DESIGN) (1 required per assembly) — Replaces: 816770, 816770T
		8M0058226 - Rectifier - Outboard [ More info ] $99.99 In Stock
		18-99416 - Regulated Rectifier 445114, 193-5114 [ More info ] $119.79 $110.72 In Stock
		18-5707 - Rectifier 816770 [ More info ] $55.99 $54.04 1 In Stock.
		300-01404 - Rectifier, 8M0058226 [ More info ] $46.99 $42.60 1 In Stock.
		AR351 - Rectifier [ More info ] $49.15 $45.57 In Stock
#17	816311T	TIE STRAP @100 (1 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#18	88439A4	CABLE ASSY-NEG (1 required per assembly)
		84-88439A 4 - Cable Assembly -neg [ More info ] $48.89 2 In Stock.
#19	19061A4	HARNESS ASSEMBLY ( LEAD HAS BULLET CONNECTOR) (GRAY) (1 required per assembly) — Replaces: 19061A2
		84-19061A 4 - Harness Assembly [ More info ] $340.99 Available to Order: Shipping delay up to 10 days.
#20	813741	GROMMET (1 required per assembly)
		25-813741 - Grommet, NLA [ More info ] $4.50 $3.82 6 In Stock.
#21	96054T	SOLENOID ASSEMBLY STARTER (DESIGN I) (1 required per assembly) — Replaces: 96054
		89-96054T - Solenoid [ More info ] Unavailable
		18-5816 - Solenoid, 89-96054 [ More info ] $31.35 In Stock
		89-8M0185149 - Start Solenoid [ More info ] $38.99 Available to Order: Shipping delay up to 10 days.
		89-02719 - Solenoid, 89-96054T [ More info ] $20.72 10+ In Stock.
		SW054 - Solenoid [ More info ] $28.65 $27.68 In Stock
#22	26419	NUT @5 (2 required per assembly)
		11-26419 - Nut (#8-32) (brass) [ More info ] $1.70 10+ In Stock.
#23	26992	LOCKWASHER @5 (2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#24	64015	NUT @3 (2 required per assembly)
		11-64015 - Nut (1 /4-20) [ More info ] $2.79 10+ In Stock.
#25	4002314	WASHER @5 (2 required per assembly)
		12-40023 14 - Washer - Priced Individually [ More info ] $3.69 $2.96 10+ In Stock.
#26	79139A24	CABLE ASSEMBLY (9-1/4&QUOT;) (1 required per assembly)
		84-79139A24 - Cable Assembly, NLA [ More info ] $5.43 $4.60 10 In Stock.
#27	88807A31	CABLE ASSEMBLY (7&QUOT;) (2 required per assembly)
		84-88807A31 - Cable Assembly [ More info ] $11.89 Available to Order: Shipping delay up to 10 days.
#28	88439A9	CABLE ASSEMBLY BATTERY - POSITIVE (96&QUOT;) (1 required per assembly)
		84-88439A 9 - Battery Cable, Positive [ More info ] $44.99 Available to Order: Shipping delay up to 10 days.
#29	814795T	COVER (1 required per assembly)
		814795T - COVER [ More info ] Unavailable
#30	40007107	SCREW (4 OR 6 required per assembly)
		10-40007107 - Screw [ More info ] $0.50 Available to Order: Shipping delay up to 10 days.
#31	40011149	SCREW (3 required per assembly)
		10-40011149 - Screw [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#32	14857A16	MODULE-OILWARNING [0G116485] & Up (1 required per assembly) — Replaces: 14857A6, 14857A10
		14857A16 - Oil Warning Module [ More info ] $195.99 In Stock
		18-99411 - Oil Warning Module, 14857A16, 144-4857-16 [ More info ] $182.98 2 In Stock.
#33	40011109	SCREW (2 required per assembly)
#34	8M0185147	SOLENOID ASSY (DESIGN II) (1 required per assembly) — Replaces: 850188T1
		89-8M0185147 - Starter Solenoid [ More info ] $68.99 In Stock
#35	818968	BUSHING (DESIGN II) (2 required per assembly)
		23-818968 - Bushing [ More info ] Unavailable
		238M0214955 - Bushing [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#36	8M0207785	GROMMET (DESIGN II) (2 required per assembly) — Replaces: 818967
		258M0207785 - Grommet [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#37	40011110	SCREW (DESIGN II) (2 required per assembly)
		10-40011110 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#38	400039	SCREW (2 required per assembly)
		10-40003 9 - Screw [ More info ] $0.70 $0.56 5 In Stock.
#39	8301792	REGULATOR-VOLTAGE (1 required per assembly) — Replaces: 815279T, 8152795
		830179 2 - Voltage Regulator [ More info ] Unavailable
		854515 - Voltage Regulator [ More info ] Unavailable
		854515T 1 - Voltage Regulator [ More info ] Unavailable
		883072T - Voltage Regulator [ More info ] Unavailable
		8M0084173 - Voltage Regulator [ More info ] $285.99 In Stock
		18-5743-1 - Voltage Regulator, Mercury [ More info ] $199.66 $184.76 Available to Order: Shipping delay up to 10 days.
		18-5743 - Voltage Regulator, 815279-3, 81527 [ More info ] $216.99 $204.88 10+ In Stock.
		300-76382 - Rectifier/Regulator, Mercury Mariner, EMP [ More info ] $134.99 $103.22 1 In Stock.
#40	813524A2	CABLE ASSY (1 required per assembly)
		84-813524A 2 - Cable Assembly [ More info ] $25.49 $24.48 2 In Stock.
#41	821889A31	REV LIMITER KIT (MARATHON 60) (1 required per assembly) — Replaces: 821889A12
		821889A31 - Rev Limiter Kit [ More info ] Unavailable
#42	823147A6	HARNESS, ADAPTOR (MARATHON 60) (1 required per assembly)
		84-823147A 6 - Harness Adaptor, NLA [ More info ] Unavailable
