Parts for 30 (2 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Electrical Components (2)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 30 (2 Cyl.) > 0G055314 - 0G760299 - USA > Electrical Components (2)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Electrical Components (2)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	808569T02	PH 30-2S 2CYL (1 required per assembly) — Replaces: 808569A97, 808569T97
		808569T02 - Powerhead 30-2S 2CYL [ More info ] Unavailable
#1	4013930	SCREW @5 MANUAL (5 required per assembly) — Replaces: 4007330
		10-40139 30 - Screw - Priced Individually [ More info ] $2.89 $2.32 2 In Stock.
#2	832074A11	STATOR KIT MANUAL (1 required per assembly) — Replaces: 832074A5
		398-832074A11 - Stator Kit [ More info ] $405.49 Available to Order: Shipping delay up to 10 days.
		18-99596 - Stator, Mercury 398-832074A11, CDI 174-2075K1 [ More info ] $451.56 $398.18 1 In Stock.
		18-99162 - Stator, Mercury 174-9710K 1, 398-9710K1 16AMP, NOT for use with Flywheels with Bolted-In Magnets [ More info ] $514.70 2 In Stock.
#3	62457	O RING @4 MANUAL (1 required per assembly)
		25-62457 - O-Ring - Priced Individually [ More info ] $0.70 $0.14 10+ In Stock.
#4	99021A14	TRIGGER ASSY MANUAL (1 required per assembly)
		99021A14 - Trigger Assembly [ More info ] $82.00 1 In Stock.
		18-99452 - Trigger, 2 Cylinder, 99021A14, 134-9021-2 [ More info ] $123.78 $121.52 1 In Stock.
#5	850187T1	SOLENOID ASSY ELECTRIC (1 required per assembly) — Replaces: 818998A2, 850187A1
		89-850187T 1 - Solenoid Assembly [ More info ] Unavailable
		89-8M0185146 - Solenoid, Starter or Trim [ More info ] $62.49 2 In Stock.
		SW097 - Solenoid [ More info ] $43.00 $42.29 8 In Stock.
#6	818968	BUSHING ELECTRIC (2 required per assembly)
		23-818968 - Bushing [ More info ] Unavailable
		238M0214955 - Bushing [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#7	8M0207785	GROMMET ELECTRIC (2 required per assembly) — Replaces: 818967
		258M0207785 - Grommet [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#8	26419	NUT @5 ELECTRIC (2 required per assembly)
		11-26419 - Nut (#8-32) (brass) [ More info ] $1.70 10+ In Stock.
#9	40011129	SCREW ELECTRIC (2 required per assembly)
		10-40011129 - Screw [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#10	64015	NUT @3 ELECTRIC (2 required per assembly)
		11-64015 - Nut (1 /4-20) [ More info ] $2.79 10+ In Stock.
#11	26992	LOCKWASHER @5 ELECTRIC (2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#12	830233	BOOT (RED) ELECTRIC (1 required per assembly)
		85-830233 - Boot (red) [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#13	8275101	RETAINER (ELECTRIC HANDLE) (1 required per assembly)
		827510 1 - Retainer [ More info ] Unavailable
#14	878609	SCREW (1 required per assembly) — Replaces: 8128321
		10-878609 - Screw [ More info ] $2.59 8 In Stock.
#15	88439A4	CABLE ASSEMBLY BATTERY - NEGATIVE (ELECTRIC) (1 required per assembly)
		84-88439A 4 - Cable Assembly -neg [ More info ] $48.89 2 In Stock.
#16	827509T7	CDM MODULE ASSY (2 required per assembly) — Replaces: 827509A1, 827509A7
		827509T 7 - CDM Module Assembly [ More info ] Unavailable
		18-99161 - CDI Module MERCURY 114-7509 827509A10 [ More info ] $126.84 $124.52 10+ In Stock.
#17	821945A61	CABLE ASSEMBLY HI TENSION (2 required per assembly)
		84-821945A61 - Cable Assembly - Black [ More info ] $17.49 10+ In Stock.
#18	63709A1	BOOT/TERMINAL KIT (1 required per assembly)
		85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ] $8.19 7 In Stock.
#19	816737Q	NGK BP8HN-10@10 (NGK# BP8H-N-10) (2 required per assembly) — Replaces: 8167372
		33-816737Q - NGK BP8HN-10 - Priced Individually [ More info ] Unavailable
		BP8H-N-10 - NGK Spark Plug, 4838 [ More info ] $5.71 10+ In Stock.
#19	938	SP #QL78YC @4 (NGK#BPZ-8H-N-10) (2 required per assembly) — Replaces: 8168372, 816837Q
		33-938 - Spark Plug - QL78YC - Priced Individually [ More info ] Unavailable
		QL78YC - Champion Spark Plug ( #938M) [ More info ] $7.73 10+ In Stock.
#20	82129116	SCREW @5 (4 required per assembly)
		10-821291 16 - Screw - Priced Individually [ More info ] $2.39 $1.34 10+ In Stock.
#21	8302361	PLATE-ELECTRICAL (1 required per assembly)
		830236 1 - Electrical Plate [ More info ] $47.49 Available to Order: Shipping delay up to 10 days.
#22	86322A32	CABLE ASSEMBLY (MANUAL) (1 required per assembly)
		84-86322A32 - Cable Assembly, NLA [ More info ] Unavailable
#23	82129114	SCREW (1 required per assembly)
		10-821291 14 - Screw [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#24	82239312	SCREW (M5 X 12) (ELECTRIC) (1 required per assembly)
		10-822393 12 - SCREW (M5 x 12) [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#25	81893412	SCREW (M8 X 12) (MANUAL) (1 required per assembly)
		10-818934 12 - Screw [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#26	8318701	BUSHING DESIGN I (6 required per assembly)
		23-831870 1 - Bushing [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#27	822002	GROMMET DESIGN I (3 required per assembly)
		25-822002 - Grommet [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#28	40011130	SCREW DESIGN I (3 required per assembly)
		10-40011130 - Screw [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#29	831870	BUSHING DESIGN II (3 required per assembly)
		23-831870 - Bushing, NLA [ More info ] $1.00 $0.85 10+ In Stock.
#30	822002	GROMMET DESIGN II (3 required per assembly)
#31	831869	WASHER DESIGN II (3 required per assembly)
		12-831869 - Washer, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#32	40011131	SCREW DESIGN II (3 required per assembly)
		10-40011131 - Screw [ More info ] $7.59 $6.08 10+ In Stock.
#33	823251A6	TPM ASSY (1 required per assembly)
		823251A 6 - TPM ASSY,NLA [ More info ] Unavailable
#34	82239320	SCREW (3 required per assembly)
		10-822393 20 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#35	816311T	TIE STRAP @100 (3 required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#36	854515	REGULATOR-VOLTAGE ELECTRIC (1 required per assembly) — Replaces: 8152795, 8301792
		854515 - Voltage Regulator [ More info ] Unavailable
		854515T 1 - Voltage Regulator [ More info ] Unavailable
		883072T - Voltage Regulator [ More info ] Unavailable
		8M0084173 - Voltage Regulator [ More info ] $285.99 In Stock
		18-5743-1 - Voltage Regulator, Mercury [ More info ] $199.66 $184.76 Available to Order: Shipping delay up to 10 days.
		18-5743 - Voltage Regulator, 815279-3, 81527 [ More info ] $216.99 $204.88 10+ In Stock.
		300-76382 - Rectifier/Regulator, Mercury Mariner, EMP [ More info ] $134.99 $103.22 Available to Order: Shipping delay up to 10 days.
#37	82129135	SCREW ELECTRIC (2 required per assembly)
		10-821291 35 - Screw [ More info ] $3.69 $0.74 10+ In Stock.

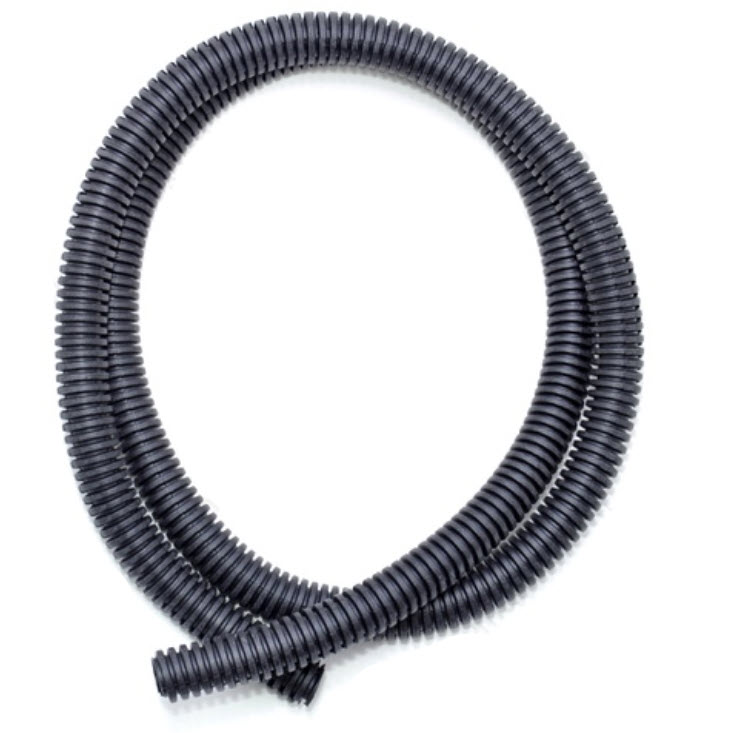

#38	828547353	CONDUIT-.35 X 3FT (1 required per assembly)
		32-828547353 - Conduit 0.350 x 36 inches [ More info ] $28.49 Available to Order: Shipping delay up to 10 days.
#39	638131	BLOCK-TERMINAL MANUAL (1 required per assembly)
		86-63813 1 - Terminal Block [ More info ] $2.39 10+ In Stock.
#40	48408	SCREW @5 MANUAL (2 required per assembly)
		10-48408 - Screw - Priced Individually [ More info ] $2.37 Available to Order: Shipping delay up to 10 days.
#41	82239312	SCREW (2 required per assembly)
#42	830575A2	HARNESS ASSY (MANUAL) (1 required per assembly)
		84-830575A 2 - Harness Assembly, NLA [ More info ] Unavailable
#43	830574A2	HARNESS ASSY (ELECTRIC) (1 required per assembly)
		84-830574A 2 - Harness Assembly [ More info ] $156.41 1 In Stock.
#44	852375A4	HARNESS ASSY (ELECTRIC) (1 required per assembly)
		84-852375A 4 - Harness Assembly [ More info ] $97.99 Available to Order: Shipping delay up to 10 days.
