Parts for 10 Sea Pro 2-Stroke Carbureted Mercury Outboard Motor Ignition Components

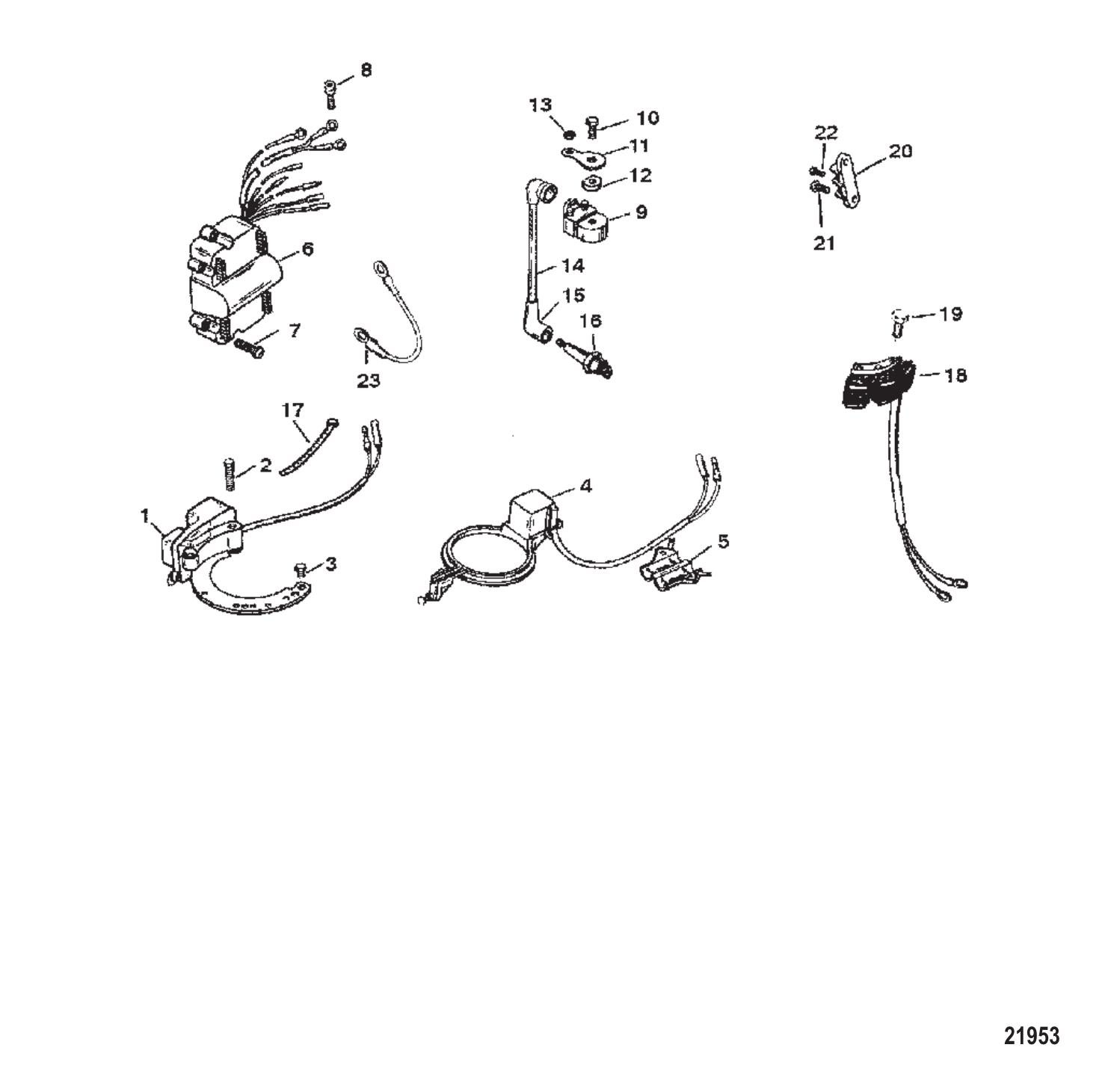

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 86617A20 | STATOR ASSY (1 required per assembly) |
  |
|
86617A20 - Stator [ More info ]
|
 |
|
18-58641 - Stator, Mercury MC#86617A20 [ More info ]
|
| #2 | 4000120 | SCREW @2 (2 required per assembly) |
  |
|
10-40001 20 - Screw, NLA [ More info ]
|
| #3 | 400018 | SCREW @2 (1 required per assembly) |
  |
|
10-40001 8 - Screw - Priced Individually [ More info ]
|
| #4 | 98450A10 | TRIGGER ASSY (1 required per assembly) — Replaces: 98450A5 |
  |
|
98450A10 - Trigger Assembly [ More info ]
|
| #5 | 11100 | CLIP (1 required per assembly) |
  |
|
11100 - Trigger Lead Clip [ More info ]
|
| #6 | 7452A19 | SWITCHBOX ASSY (1 required per assembly) |
  |
|
339-7452A19 - Switch Box [ More info ]
|
  |
|
18-5777-1 - Switch Box [ More info ]
|
  |
|
18-5777 - Switch Box 339-7452A19 [ More info ]
|
  |
|
300-33900 - Switch Box, 339-7452A19 [ More info ]
|
| #7 | 40019108 | SCREW (3 required per assembly) |
  |
|
10-40019108 - Screw [ More info ] Unavailable |
| #8 | 48408 | SCREW @5 (1 required per assembly) |
  |
|
10-48408 - Screw - Priced Individually [ More info ]
|
| #9 | 832757A4 | COIL KIT (2 required per assembly) |
  |
|
339-832757A 4 - Ignition Coil [ More info ] Unavailable |
  |
|
18-5186 - Ignition Coil 339-7370A13 [ More info ]
|
  |
|
8M0230859 - Ignition Coil [ More info ]
|
| #10 | 40112 | SCREW (2 required per assembly) |
  |
|
10-40112 - Screw [ More info ] Unavailable |
| #11 | 88173 | TAB (2 required per assembly) |
  |
|
88173 - Tab [ More info ]
|
| #12 | 88171 | BUSHING (2 required per assembly) |
  |
|
23-88171 - Bushing [ More info ]
|
| #13 | 45076 | NUT @10 (4 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #14 | 813715A2 | CABLE SET-IGN (1 required per assembly) |
  |
|
84-813715A 2 - Ignition Cable Set [ More info ]
|
| #15 | 63709A1 | BOOT/TERMINAL KIT (2 required per assembly) |
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #16 | 14814568 | SPARK PLUG (NGK#BPZ8HS) (2 required per assembly) |
  |
|
33-14814568 - NGKBPZ8HS-15 - Priced Individually [ More info ] Unavailable |
  |
|
BPZ8HS-10 - NGK Spark Plug, 3133 [ More info ]
|
  |
|
QL78YC - Champion Spark Plug ( #938M) [ More info ]
|
| #16 | 8M0114746 | S PLUG BP8HS@4 (NGK#BP8HS-15) (2 required per assembly) — Replaces: 19424 |
  |
|
33-8M0114746 - Spark Plug BP8HS-15 - Priced Individually [ More info ] Unavailable |
  |
|
BP8HS-15 - NGK Spark Plug, 6729 [ More info ]
|
| #17 | 816311T | TIE STRAP @100 (1 required per assembly) — Replaces: 816311 |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #18 | 86704A10 | STATOR ASSY (1 required per assembly) — Replaces: 86704A2, 86704T2 |
  |
|
86704A10 - Stator Assembly [ More info ]
|
| #19 | 4000123 | SCREW (3 required per assembly) |
  |
|
10-40001 23 - Screw [ More info ]
|
| #20 | 638131 | BLOCK-TERMINAL (1 required per assembly) |
  |
|
86-63813 1 - Terminal Block [ More info ]
|
| #21 | 48409 | SCREW @2 (2 required per assembly) |
  |
|
10-48409 - Screw - Priced Individually [ More info ]
|
| #22 | 62568 | SCREW @4 (2 required per assembly) |
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
| #23 | 88807A16 | CABLE ASSY (1 required per assembly) |
  |
|
84-88807A16 - Cable Assembly [ More info ]
|
