Parts for 454 Mag. Bravo GM 454 V-8 7.4L (454 Cu In) V8 GM MerCruiser Engines - Gas Starter Motor Delco Remy #9000762 8

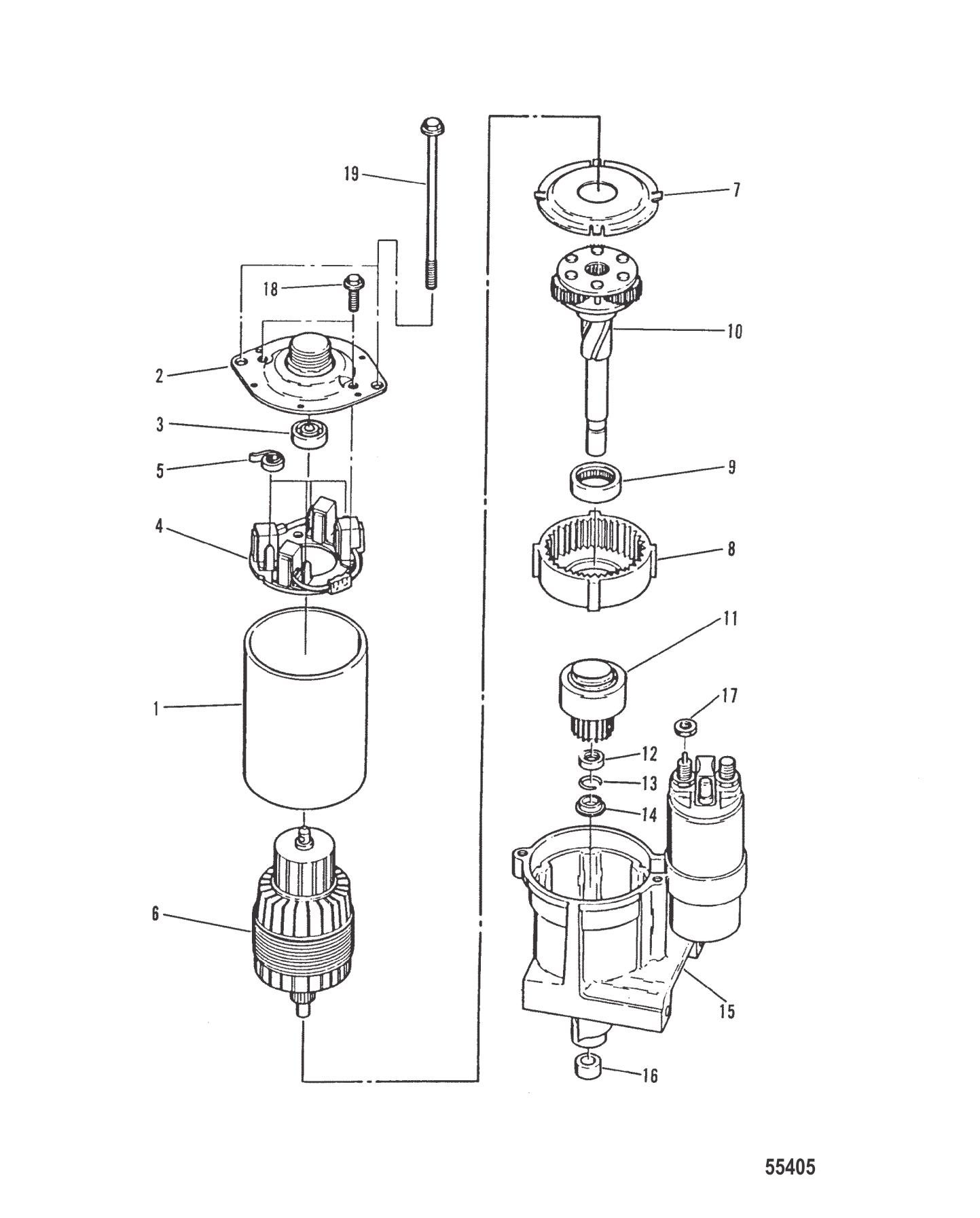

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 806964A2 | STARTER ASSY (1 required per assembly) — Replaces: 812428A3, 812604A2 |
  |
50-806964A 2 - Starter [ More info ] Unavailable |
|
  |
50-806964A 3 - Starter [ More info ] Unavailable |
|
  |
50-806964A 4 - Starter [ More info ] Unavailable |
|
  |
|
50-863007A 1 - Starter, Offset Bolt Pattern. [ More info ]
|
  |
50-864340A 2 - Starter Assembly [ More info ] Unavailable |
|
  |
|
18-6275-1 - Inboard Starter [ More info ]
|
  |
|
18-5913-1 - Starter, 50-812428A3, Gear Reduction, Offset Bolt Pattern [ More info ]
|
  |
|
30460 - Starter, 50-806963A2, Straight Across Bolt Pattern [ More info ]
|
  |
|
30433 - Premium Inboard Starter, Staggered Bolt Pattern [ More info ]
|
| #2 | 814464 | FRAME (1 required per assembly) |
  |
|
814464 - Frame, NLA [ More info ] Unavailable |
| #3 | 814465 | BEARING BALL (1 required per assembly) |
  |
|
30-814465 - Ball Bearing, NLA [ More info ]
|
| #4 | 814466 | HOLDER BRUSH (1 required per assembly) |
  |
|
814466 - Brush Holder Assembly, NLA [ More info ] Unavailable |
| #5 | 814467 | SPRING (4 required per assembly) |
  |
|
24-814467 - Spring-brush,NLA [ More info ] Unavailable |
| #6 | 814469 | ARMATURE (1 required per assembly) |
  |
|
814469 - Armature, NLA [ More info ] Unavailable |
| #7 | 811882 | SHIELD (1 required per assembly) — Replaces: 814470 |
  |
|
811882 - SHIELD,NLA [ More info ] Unavailable |
| #8 | 814471 | GEAR AND BEARING (1 required per assembly) |
  |
|
814471 - GEAR & BRG ASSY,NLA [ More info ] Unavailable |
| #9 | 814479 | BEARING ROLLER (1 required per assembly) |
  |
|
814479 - Bearing-ROLLER,NLA [ More info ] Unavailable |
| #10 | 806964A2 | STARTER MOTOR ASSEMBLY 2-7/8 DIAMETER END CAP (1 required per assembly) — Replaces: 814472, 822330A2 |
| #11 | 811896 | DRIVE (1 required per assembly) — Replaces: 814473 |
  |
|
811896 - Drive [ More info ] Unavailable |
| #12 | 33291 | COLLAR (1 required per assembly) |
  |
|
|
| #13 | 33290 | RING RETAINING (1 required per assembly) |
  |
|
53-33290 - Ring - Retaining - Priced Individually [ More info ]
|
| #14 | 809457 | THRUST COLLAR (1 required per assembly) — Replaces: 814474 |
  |
|
23-809457 - Thrust Collar, NLA [ More info ] Unavailable |
| #15 | 814475 | HOUSING DRIVE (1 required per assembly) |
  |
|
814475 - Drive Housing Assembly, NLA [ More info ]
|
| #16 | 814476 | BUSHING (1 required per assembly) |
  |
|
23-814476 - Bearing [ More info ]
|
| #17 | N.S.S. | NOT SOLD SEPARATE (1 required per assembly) |
  |
|
N.S.S. - Not Sold Separate [ More info ] Unavailable |
| #18 | 814468 | SCREW (2 required per assembly) |
  |
|
10-814468 - SCREW,NLA [ More info ] Unavailable |
| #19 | 814477 | THRU BOLT (2 required per assembly) |
  |
|
10-814477 - BOLT-THRU,NLA [ More info ] Unavailable |
