Parts for MerCruiser Zeus 3000 JH Cooling System (Without Drop Box)

Revise Search: All Models > Zeus 3000 JH > 0M963371 & Up > Cooling System (Without Drop Box)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

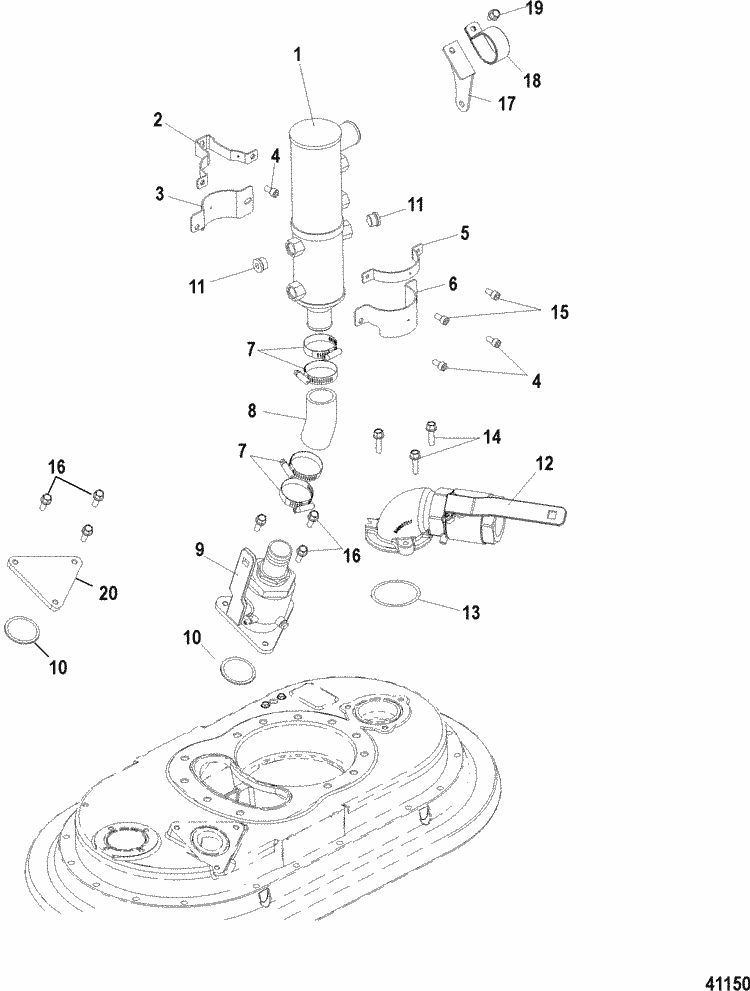

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	879148T59	COOLER, Oil (1 required per assembly)
		879148T59 - COOLER-OIL [ More info ] Unavailable
		8M0046594 - Oil Cooler [ More info ] Unavailable
		8M0181739 - COOLER-OIL [ More info ] $1,322.49 Available to Order: Shipping delay up to 10 days.
#2	8M0007715	BRACKET (1 required per assembly)
		8M0007715 - Bracket [ More info ] $120.99 Available to Order: Shipping delay up to 10 days.
#3	8M0007713	BRACKET (1 required per assembly)
		8M0007713 - Bracket [ More info ] $61.49 Available to Order: Shipping delay up to 10 days.
#4	10-40089 16	SCREW, (M8 x 16) Stainless Steel (3 required per assembly)
		10-40089 16 - Screw [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#5	8M0007716	BRACKET (1 required per assembly)
		8M0007716 - Bracket [ More info ] $36.99 Available to Order: Shipping delay up to 10 days.
#6	8M0007714	BRACKET (1 required per assembly)
		8M0007714 - Bracket [ More info ] $59.99 Available to Order: Shipping delay up to 10 days.
#7	54-815504224	CLAMP, Worm Gear (4 required per assembly)
		54-815504224 - Clamp [ More info ] $5.19 1 In Stock.
#8	32-8M0037197	HOSE (1 required per assembly)
		32-8M0037197 - Hose [ More info ] $19.79 Available to Order: Shipping delay up to 10 days.
#9	879345T58	BALL VALVE ASSMBLY, 1.5 Inch (1 required per assembly)
		879345T58 - Ball Valve - 1.5 [ More info ] $422.99 Available to Order: Shipping delay up to 10 days.
#10	25-38106	O-RING (1 required per assembly)
		25-38106 - O-Ring,Oil Seal Carrier [ More info ] $4.69 $0.94 10+ In Stock.
#11	19-8M0025635	PLUG (1 required per assembly)
		19-8M0025635 - Plug [ More info ] $41.49 Available to Order: Shipping delay up to 10 days.
#12	879150A63	BALL VALVE ASSEMBLY, Short Neck, 2.0 Inch (1 required per assembly)
		20-879150A63 - Water Valve Assembly [ More info ] Unavailable
		208M0089447 - Water Valve [ More info ] $493.49 Available to Order: Shipping delay up to 10 days.
#12	879150A64	BALL VALVE ASSEMBLY, 2.5 Inch (1 required per assembly)
		20-879150A64 - Water Valve - 2.5 [ More info ] Unavailable
		208M0089449 - Water Valve [ More info ] $941.49 Available to Order: Shipping delay up to 10 days.
#14	10-8M0041198	SCREW, (M8 x 30) (3 required per assembly)
		10-8M0041198 - Screw - Priced Individually [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#15	10-40003 27	SCREW, (M6 x 14) (2 required per assembly)
		10-40003 27 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#16	10-8M0039671	SCREW, (M8 x 20) (3 required per assembly)
		10-8M0039671 - Screw - Priced Individually [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#17	8M0026220	BRACKET (1 required per assembly)
		8M0026220 - Bracket [ More info ] $65.99 Available to Order: Shipping delay up to 10 days.
#18	54-8M0041193	CLIP (1 required per assembly)
		54-8M0041193 - Clip [ More info ] $13.39 Available to Order: Shipping delay up to 10 days.
#19	10-818934 14	SCREW, (M8 x 14) (1 required per assembly)
		10-818934 14 - Screw [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#20	8M0046084	COVER PLATE (1 required per assembly) Zorro
		8M0046084 - Cover Plate [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
