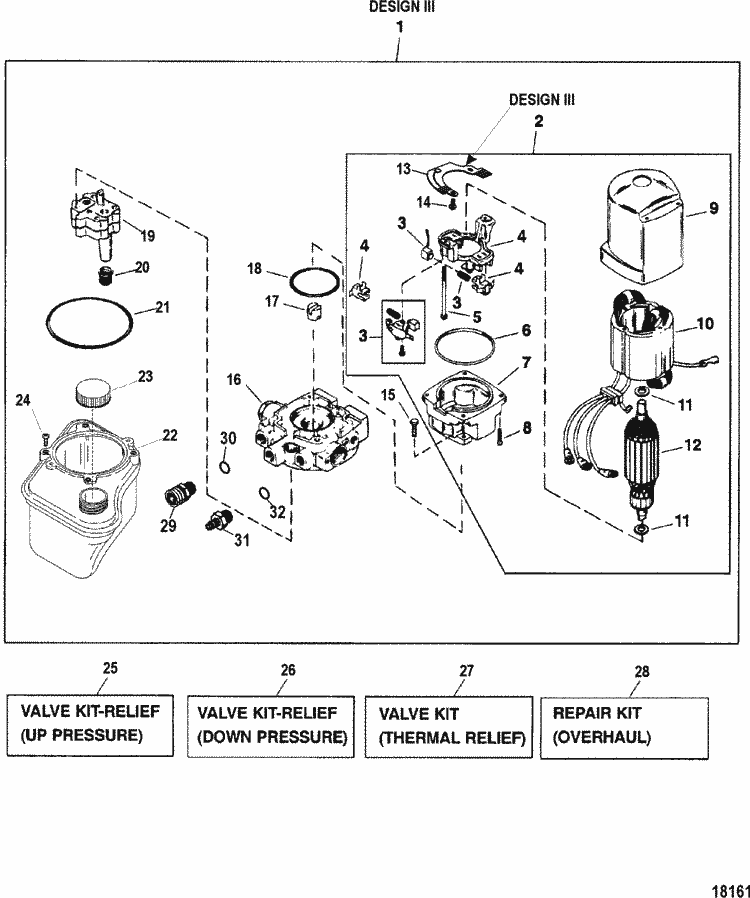

Parts for MerCruiser Bravo Two Pump / Motor (Top Mount Reservoir) (Design III - 14336A31)
Tap to zoom. Scroll down to order.
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
#1 | 14336A31 | PUMP/MOTOR ASSEMBLY (1 required per assembly) (Design III, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) |
![]() |
14336A31 - Pump/Motor Assembly [ More info ] Unavailable |
|
![]() |
865380A03 - Pump/Motor Assembly [ More info ] Unavailable |
|
![]() ![]() |
||
![]() ![]() |
||
![]() ![]() |
18-6274 - Tilt Trim Motor [ More info ]
|
|
![]() ![]() |
||
#2 | 891736T | MOTOR ASSEMBLY, Complete (1 required per assembly) (Design II, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) |
![]() ![]() |
||
![]() ![]() |
||
![]() ![]() |
||
![]() ![]() |
||
![]() |
||
![]() ![]() |
||
#3 | 891737 | BRUSH KIT (1 required per assembly) |
![]() ![]() |
||
#4 | 891738 | HOLDER ASSEMBLY, Brushes (1 required per assembly) |
![]() ![]() |
891738 - Holder Assembly - Brush [ More info ]
|
|
#5 | 10-891739 | SCREW, Brush Holder (2 required per assembly) |
![]() ![]() |
||
#6 | 25-891740 | O-RING (1 required per assembly) |
![]() |
||
#7 | NSS | NOT SOLD SEPARATE, End Cap Assembly (1 required per assembly) |
![]() |
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
|
#8 | 10-891741 | SCREW (4 required per assembly) |
![]() ![]() |
||
#13 | 892608 | BOARD ASSEMBLY, Circuit - Radio Frequency Interference Filter (1 required per assembly) |
![]() ![]() |
||
#15 | 10-823444 | SCREW (2 required per assembly) |
![]() ![]() |
||
#16 | 808728T | ADAPTER ASSEMBLY (1 required per assembly) |
![]() ![]() |
||
#17 | 803852 | COUPLING (1 required per assembly) |
![]() ![]() |
||
#18 | 25-89498 | O-RING, Motor End (1 required per assembly) |
![]() ![]() |
||
#19 | 18529 | PUMP ASSEMBLY, Includes Screws (1 required per assembly) |
![]() ![]() |
||
#20 | 35-89496 | FILTER (2 required per assembly) |
![]() ![]() |
||
#21 | 25-17645 | O-RING, Reservoir End (1 required per assembly) |
![]() ![]() |
||
#22 | 883166A 2 | RESERVOIR KIT, With Filters And O-Ring (1 required per assembly) (Reference 20 And Reference 21) |
![]() ![]() |
||
![]() ![]() |
||
![]() ![]() |
||
#23 | 36-861597 | CAP, Standard (1 required per assembly) |
![]() ![]() |
||

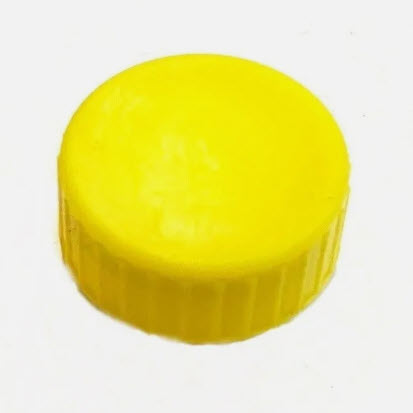

#23 | 36-865448A01 | CAP, Oil Reservoir, Rough Water Application (OPT required per assembly) |
![]() ![]() |
||
#24 | 10-883167 | SCREW, (#8-32) (4 required per assembly) |
![]() ![]() |
||
#25 | 812498A 1 | VALVE KIT, Relief, Up Pressure (1 required per assembly) |
![]() ![]() |
||
#26 | 812499A 1 | VALVE KIT, Relief, Down Pressure (1 required per assembly) |
![]() ![]() |
||
#27 | 95353A 1 | VALVE KIT, Relief, Thermal (1 required per assembly) |
![]() ![]() |
||
#28 | 18545A 1 | REPAIR KIT (1 required per assembly) |
![]() ![]() |
||

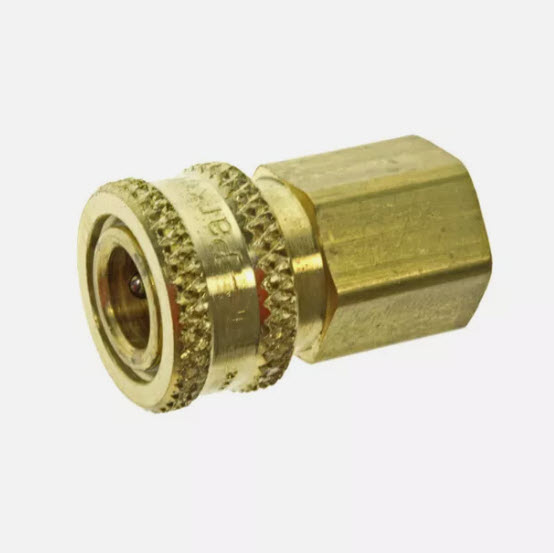

#29 | 22-865413001 | FITTING, Stainless Steel (1 required per assembly) SN# 0W100000 & Up |
![]() |
22-865413001 - Fitting-Q/C FEMAL [ More info ] Unavailable |
|
![]() ![]() |
||
#30 | 25-891868 | O-RING (1 required per assembly) SN# 0W100000 & Up |
![]() ![]() |
||

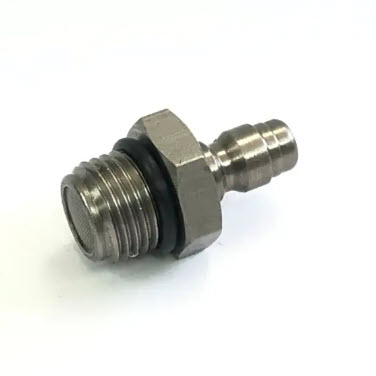

#31 | 22-865412001 | FITTING, Stainless Steel (1 required per assembly) SN# 0W100000 & Up |
![]() ![]() |
