Parts for MerCruiser Black Scorpion 350 Mag MPI Electrical Components

Revise Search: All Models > Black Scorpion 350 Mag MPI > 0M391600 - 0W689999 > Electrical Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	87-815425T	SENDER ASSEMBLY, Oil Pressure (1 required per assembly)
		815425T - Sender [ More info ] Unavailable
		8M0068784 - Sender Assembly [ More info ] $88.50 In Stock
		18-5899 - Sender, 982650, 815425T [ More info ] $42.99 $38.54 10+ In Stock.
#2	881879A 6	SENSOR, (0 - 100 PSI), Oil Pressure (1 required per assembly)
		881879A 6 - Sensor Kit [ More info ] Unavailable
		881879011 - Pressure Sensor [ More info ] Unavailable
		881879T11 - Pressure Sensor [ More info ] $189.25 In Stock
#3	805218T	SENSOR, Coolant (1 required per assembly)
		805218T - Temperature Sensor [ More info ] $67.58 In Stock
		18-7600 - Sensor 805218T [ More info ] $57.49 $52.08 3 In Stock.
		E13-0009 - Coolant Temp Sensor [ More info ] $37.53 1 In Stock.
#4	806490T	SENDER, Coolant Temperature (1 required per assembly)
		806490T - Water Temperature Sender [ More info ] $39.50 1 In Stock.
		18-5897 - Sender, 97257A1 [ More info ] $35.99 $32.24 10+ In Stock.
#5	865155T01	ECM, Engine Control Module (1 required per assembly) (350 MPI ) SN# 0W395629 & Below
		865155T01 - ECM [ More info ] Unavailable
		865155T02 - ECM [ More info ] Unavailable
		865155T03 - ECM [ More info ] Unavailable
		865155T04 - ECM [ More info ] Unavailable
		865155T05 - ECM [ More info ] Unavailable

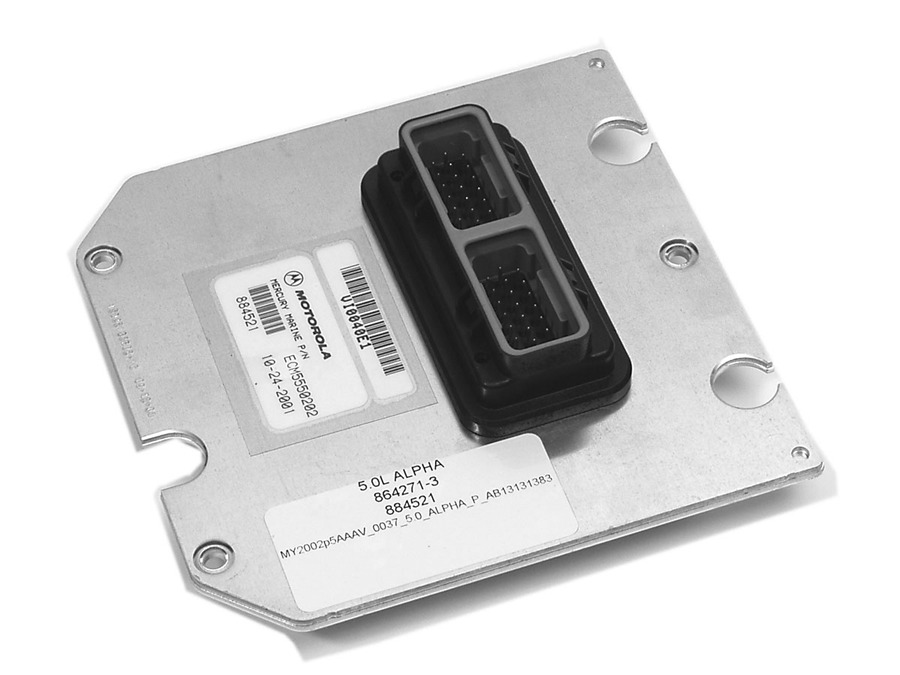

		865155T06 - ECM [ More info ] Unavailable
#5	865155T03	MODULE ASSEMBLY, ECM (1 required per assembly) (350 MPI ) SN# 0W395630 & Up
#5	865156T01	MODULE ASSEMBLY, ECM (1 required per assembly) (6.2L MPI) SN# 0W395624 & Below
		865156T01 - ECM [ More info ] Unavailable
		865156T02 - ECM [ More info ] Unavailable
		865156T03 - ECM [ More info ] Unavailable
		865156T04 - ECM [ More info ] Unavailable
		865156T05 - ECM [ More info ] Unavailable
		865156T06 - ECM [ More info ] Unavailable
		865156T07 - ECM Engine Control Modu [ More info ] Unavailable
#5	865156T04	MODULE ASSEMBLY, ECM (1 required per assembly) (6.2L MPI) SN# 0W395625 & Up
#6	10-821300 25	SCREW, (M6 x 25) (3 required per assembly)
		10-821300 25 - Screw [ More info ] $3.90 5 In Stock.
#7	12-65567	WASHER, (.265 x .750 x .048) Stainless Steel (3 required per assembly)
		12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ] $2.80 1 In Stock.
#8	25-834985	GROMMET (3 required per assembly)
		25-834985 - Grommet [ More info ] $3.00 Available to Order: Usually ships within 10 days.
#9	23-856954	BUSHING (3 required per assembly)
		23-856954 - Bushing [ More info ] $6.70 6 In Stock.
#10	865218T	BRACKET , ECM Mounting (1 required per assembly)
		865218T - ECM Bracket/Lift [ More info ] $19.99 10+ In Stock.
#11	10-860008	SCREW, (.250-20 x .625) Torx (2 required per assembly)
		10-860008 - Bolt [ More info ] $3.10 1 In Stock.
#12	84-865245T02	HARNESS ASSEMBLY (1 required per assembly)
		84-865245T02 - Engine Harness [ More info ] $800.21 Available to Order: Usually ships within 10 days.
#13	86-865205	CLIP, Relay Mounting (2 required per assembly)
		86-865205 - Clip - Priced Individually [ More info ] $2.90 Available to Order: Usually ships within 10 days.

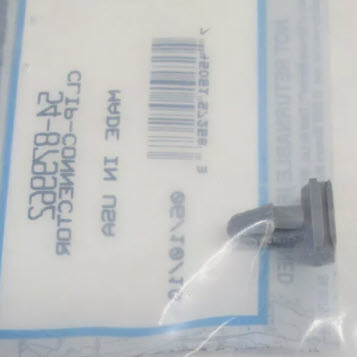

#14	54-879962	CLIP, Fuse Block Mounting (1 required per assembly)
		54-879962 - Clip [ More info ] $1.90 Available to Order: Usually ships within 10 days.
#15	831960	COVER, Fuse (1 required per assembly)
		831960 - Fuse Cover [ More info ] $6.80 1 In Stock.
#16	86-865202T	RELAY (2 required per assembly)
		86-865202T - Relay [ More info ] $43.08 In Stock
		18-5851 - Relay, 86-865202T [ More info ] $38.99 $32.31 In Stock
#17	88-832969 20	FUSE, Mini - Yellow - 20 Ampere (3 required per assembly)
		88-832969 20 - Fuse-Yellow-20AMP [ More info ] Unavailable
		88-832969T20 - Fuse - Yellow - 20 Amp [ More info ] $6.30 Available to Order: Usually ships within 10 days.
#18	865220T	BRACKET, Relay Mounting (1 required per assembly)
		865220T - Bracket - Relay [ More info ] $22.58 Available to Order: Usually ships within 10 days.
#19	88-806950	BREAKER, Circuit - 50 Ampere (1 required per assembly)
		88-806950 - Circuit Breaker 50 amp w/ screw connections. Ord 88-11178A01 [ More info ] Unavailable
#20	13-26996	LOCKWASHER, (#10) Stainless Steel (2 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#21	10-68513	SCREW, (#10-32 x .375) Stainless Steel (2 required per assembly)
		10-68513 - Screw [ More info ] $1.30 10 In Stock.
#22	10-57583	SCREW, (#8-32 x .375) (2 required per assembly)
		10-57583 - Screw - Priced Individually [ More info ] $1.11 4 In Stock.
		10-57583T - Screw - Priced Individually [ More info ] $1.30 10+ In Stock.
#23	89-96158T	SOLENOID, Starter (1 required per assembly)
		89-96158T - Solenoid, NLA Order 8M0185622 [ More info ] Unavailable
		8M0185622 - Solenoid, Starter or Trim [ More info ] $35.17 2 In Stock.
		18-5817 - Solenoid 89-96158 [ More info ] $28.99 $24.87 10+ In Stock.
		SW058 - Solenoid [ More info ] $27.55 $25.23 10+ In Stock.
#24	13-26992	LOCKWASHER, (.250) Stainless Steel (2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#25	11-26419	NUT, (#8-32) Brass (2 required per assembly)
		11-26419 - Nut (#8-32) (brass) [ More info ] $1.60 10+ In Stock.
#26	10-41508	SCREW, (.250-20 x .500) Stainless Steel (2 required per assembly)
		10-41508 - Screw [ More info ] $3.70 Available to Order: Usually ships within 10 days.
#27	13-26995	LOCKWASHER, (#8) Stainless Steel (2 required per assembly)
		13-26995 - Lock Washer - Priced Individually [ More info ] $1.10 $0.62 10+ In Stock.

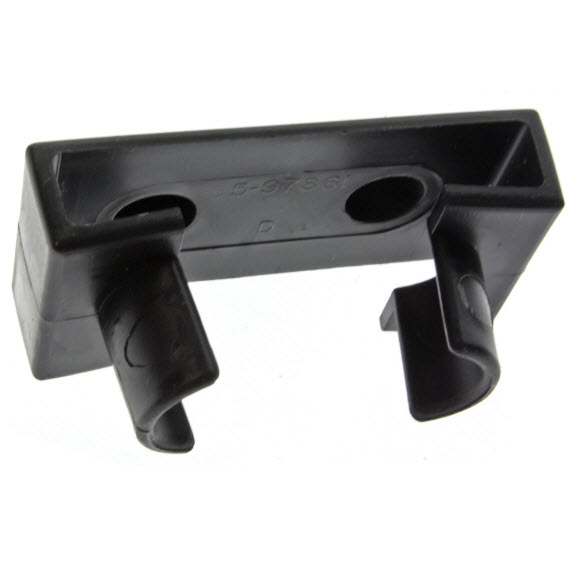

#29	85-97861	INSULATOR, Starter Solenoid (1 required per assembly)
		85-97861 - Insulator [ More info ] $5.00 10+ In Stock.
#30	816492A 6	ALARM KIT (1 required per assembly)
		816492A 6 - Alarm Kit [ More info ] $119.46 10+ In Stock.
#31	10-98261	SCREW, (.375-16 x .750) (3 required per assembly)
		10-98261 - Screw [ More info ] $1.20 10 In Stock.
#32	84-861940T 1	HARNESS ASSEMBLY, Neutral Safety Switch (1 required per assembly)
		84-861940T 1 - Harness Assembly [ More info ] $30.08 Available to Order: Usually ships within 10 days.
#33	84-862021T 1	HARNESS ASSEMBLY, Transmission Temperature (1 required per assembly)
		84-862021T 1 - Harness Assembly [ More info ] $26.37 1 In Stock.

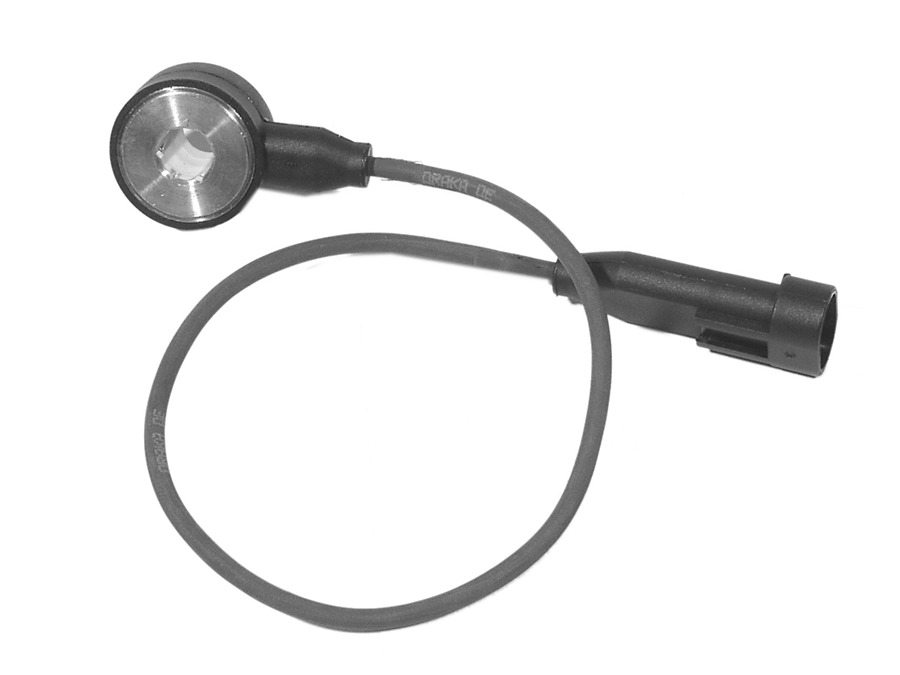

#35	878187	SENSOR ASSEMBLY, Knock (11 required per assembly)
		878187 - Knock Sensor [ More info ] $60.49 2 In Stock.

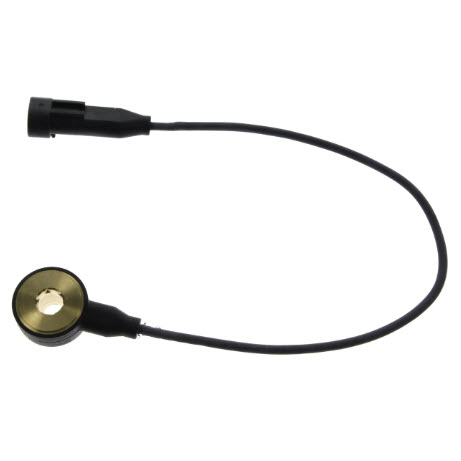

		8M6003194 - Knock Sensor [ More info ] $74.92 In Stock
		18-7554 - Knock Sensor 878187 [ More info ] $81.39 $73.67 2 In Stock.
#36	84-865145T02	HARNESS ASSEMBLY, Wiring (1 required per assembly) (In Gear Indicator)
		865145T02 - Harness, Adaptor [ More info ] $43.00 Available to Order: Usually ships within 10 days.
#37	891735	CAP, Weather Proof, 10 Pin Harness Plug (1 required per assembly)
		891735 - CAP-WEATHER [ More info ] Unavailable
		8M3000055 - Female Weather Cap [ More info ] $19.83 Available to Order: Usually ships within 10 days.

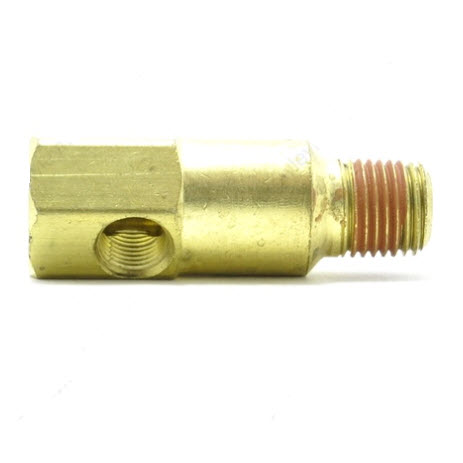

#38	22-864669	FITTING (1 required per assembly)
		22-864669 - Fitting [ More info ] $29.92 In Stock
