Parts for Mariner 8A Intake Manifold
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 81033M | MANIFOLD, INTAKE (1 required per assembly) |
  |
|
81033M - Intake Manifold [ More info ] Unavailable |
| #2 | 27-81034M | GASKET, INTAKE MANIFOLD... (2 required per assembly) |
  |
|

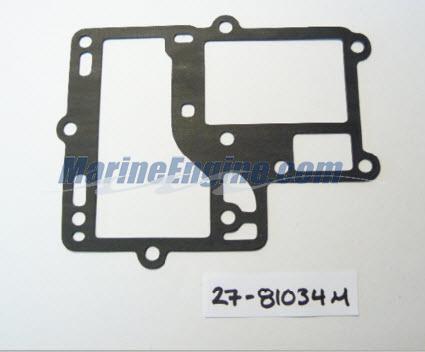

27-81034M - Intake Manifold Gasket [ More info ]
|
| #3 | 81032M | REED VALVE... (2 required per assembly) |
  |
|
81032M - Reed Valve,NLA [ More info ] Unavailable |
| #4 | 27-80425M | GASKET, REED VAVLE... (2 required per assembly) |
  |
|

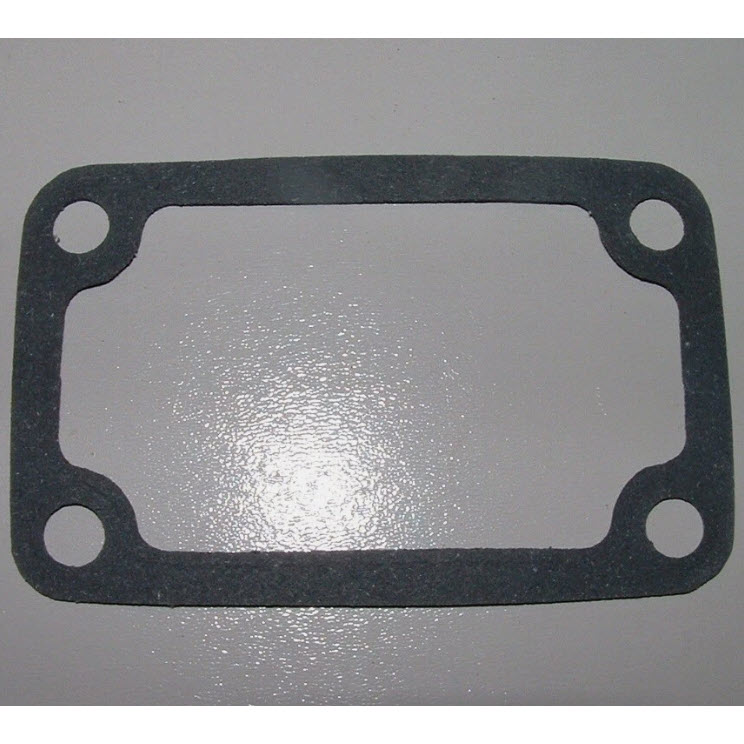

27-80425M - Reed Vavle Gasket [ More info ]
|
| #5 | 10-82535M | SCREW, VALVE ATTACHING... (8 required per assembly) |
  |
10-82535M - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-82969M - SCREW,NLA [ More info ] Unavailable |
| #6 | 80426M | COVER, INTAKE MANIFOLD... (1 required per assembly) |
  |
|
80426M - Cover, NLA [ More info ] Unavailable |
| #7 | 27-81035M | GASKET, INTAKE MANIFOLD COVER... (1 required per assembly) |
  |
|
27-81035M - Intake Manifold Cover Gasket [ More info ]
|
| #8 | 10-82431M | BOLT, MANIFOLD ATTACHING... (3 required per assembly) |
  |
10-82431M - BOLT Note: Priced Individually [ More info ] Unavailable |
|
  |
10-92534M - BOLT [ More info ] Unavailable |
|
  |
|
10-852776 5 - Bolt, NLA [ More info ]
|
| #9 | 10-82429M | BOLT, MANIFOLD ATTACHING... (3 required per assembly) |
  |
10-82429M - BOLT Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-84657M - Screw, NLA [ More info ]
|
| #10 | 10-82425M | BOLT, MANIFOLD ATTACHING... (4 required per assembly) |
  |
10-82425M - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-82405M - Screw, NLA [ More info ]
|
| #11 | 13-82199M | WASHER... (12 required per assembly) |
  |
13-82199M - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #12 | 27-80427M | GASKET, CARBURTOR TO MANIFOLD... (2 required per assembly) SERIAL 00000000-00021180 |
  |
|
27-80427M - Carburetor To Manifold Gasket [ More info ] Unavailable |
| #13 | 80428M | SPACER, CARBURETOR TO MANIFOLD... . (1 required per assembly) SERIAL 00000000-00021180 |
  |
|
80428M - SPACER,NLA [ More info ] Unavailable |
| #14 | 16-81732M | STUD, CARBURETOR ATTACHING... (1 required per assembly) |
  |
|
16-81732M - STUD,NLA [ More info ] Unavailable |
| #15 | 16-81731M | STUD, CARBURETOR ATTACHING... . (1 required per assembly) SERIAL 00000000-00021180 |
  |
|
16-81731M - Stud, NLA [ More info ]
|
| #15 | 16-81728M | .. (1 required per assembly) SERIAL 00021181-09999999 |
  |
16-81728M - STUD [ More info ] Unavailable |
|
  |
|
16-811028M - Stud, NLA [ More info ] Unavailable |
| #16 | 11-82381M | NUT, CARBURETOR ATTACHING... (2 required per assembly) |
  |
11-82381M - Nut - Priced Individually [ More info ] Unavailable |
|
  |
|
11-82390M - Nut, (M6) [ More info ]
|
| #17 | 81036M | COVER, AIR INTAKE... (1 required per assembly) |
  |
|
81036M - Cover [ More info ] Unavailable |
| #18 | 10-82481M | SCRE, COVER ATTACHING... (2 required per assembly) |
  |
10-82481M - SCREW Note: Priced Individually [ More info ] Unavailable |
|
  |
|
10-82528M - Screw, NLA [ More info ]
|
| #19 | 81046M | PLATE, MANIFOLD... (1 required per assembly) |
  |
|
81046M - PLATE,NLA [ More info ] Unavailable |
| #20 | 80483M | CHOKE ASS'Y... (1 required per assembly) |
  |
|
80483M - CHOKE,NLA [ More info ] Unavailable |
| #21 | 80624M | KNOB, CHOKE... (1 required per assembly) |
  |
|
80624M - Choke Knob, NLA [ More info ]
|
| #22 | 10-80485M | SCRWE... (1 required per assembly) |
  |
|
10-80485M - SCREW,NLA [ More info ] Unavailable |
| #23 | 80482M | CABLE, CHOKE... (1 required per assembly) |
  |
|
80482M - CHOKE Cable, NLA [ More info ] Unavailable |
| #24 | 10-82520M | SCREW, PANHEAD... (2 required per assembly) |
  |
10-82520M - SCREW [ More info ] Unavailable |
|
  |
|
10-83356M - Screw, NLA [ More info ]
|
| #25 | 12-82196M | WASHER, PLATE... (2 required per assembly) |
  |
12-82196M - WASHER Note: Priced Individually [ More info ] Unavailable |
|
  |
|
12-82211M - Washer - Priced Individually [ More info ]
|
