Parts for Mariner 20 HP (2 Cylinder) Ignition / Electrical Components

Revise Search: All Models > 20 HP (2 Cylinder) > 9507381 - 9807908 (Belgium) > Ignition / Electrical Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

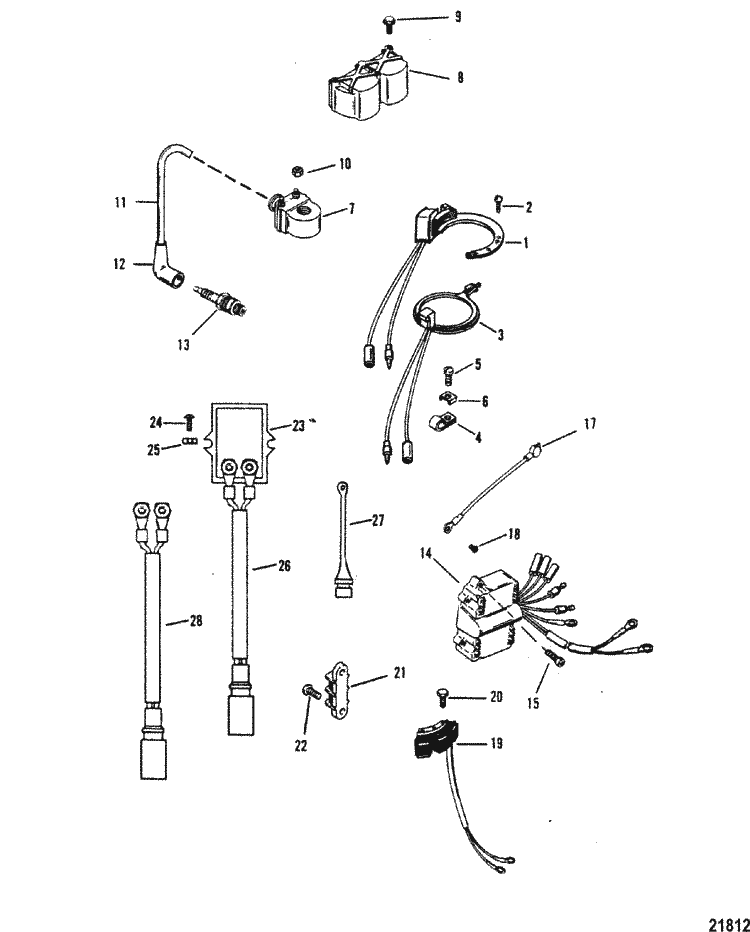

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	86617A13	STATOR ASSEMBLY (1 required per assembly)
		86617A13 - Stator [ More info ] Unavailable
		86617A20 - Stator [ More info ] $268.49 In Stock
		18-58641 - Stator, Mercury MC#86617A20 [ More info ] $219.13 2 In Stock.
#2	10-40001 20	SCREW, (M5 x 25) (2 required per assembly)
		10-40001 20 - Screw, NLA [ More info ] $2.21 $1.88 1 In Stock.
#2	10-40001 5	SCREW, (M5 x 10), STATOR ATTACHING (2 required per assembly)
		10-40001 5 - Screw, NLA [ More info ] $1.82 $1.54 10+ In Stock.
#3	98450A 5	TRIGGER ASSEMBLY (1 required per assembly)
		98450A 5 - Trigger Assembly [ More info ] Unavailable
		98450A10 - Trigger Assembly [ More info ] $107.49 2 In Stock.
#4	54-24836	CLIP, TRIGGER LEADS (1 required per assembly) (Manual)
		54-24836 - Clip - Priced Individually [ More info ] $4.19 10+ In Stock.
#4	54-22740	CLIP, TRIGGER LEADS (1 required per assembly) (Electric/Manual Alternator)
		54-22740 - Clip [ More info ] $5.09 2 In Stock.
#5	10-48408	SCREW, (#10-16 x .500), CLIP TO CRANKCASE (1 required per assembly)
		10-48408 - Screw - Priced Individually [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#6	69205	C WASHER, CLIP SCREW (1 required per assembly)
		69205 - C Washer [ More info ] Unavailable
		8M0084613 - Washer [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#7	339-7370A13	IGNITION COIL ASSEMBLY (2 required per assembly)
		339-7370A13 - Ignition Coil [ More info ] Unavailable
		339-832757A 4 - Ignition Coil [ More info ] Unavailable
		8M0230859 - Ignition Coil [ More info ] $124.33 3 In Stock.
		18-5186 - Ignition Coil 339-7370A13 [ More info ] $61.99 $58.62 9 In Stock.
#8	99762	COVER, IGNITION COIL (1 required per assembly)
		99762 - Cover [ More info ] Unavailable
		99762 1 - Cover [ More info ] $16.59 Available to Order: Shipping delay up to 10 days.
#9	10-40105 55	SCREW, IGNITION COIL COVER (3 required per assembly)
		10-40105 55 - SCREW [ More info ] Unavailable
		10-19941 55 - Screw [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#10	11-45076	NUT, (#10-32), COIL TERMINAL (4 required per assembly)
		11-45076 - Nut (#10-32) (brass) [ More info ] $1.80 10+ In Stock.
#11	84-813715A 3	HIGH TENSION LEADS (1 required per assembly)
		84-813715A 3 - WIRE KIT [ More info ] Unavailable
		84-813715A 2 - Ignition Cable Set [ More info ] $40.28 5 In Stock.
#11	84-813715A 2	LEAD CABLE SET, High Tension (5 and 8.25 Inch) (COMMERCIAL ENGINES) (1 required per assembly)
#12	85-63709A 1	BOOT/TERMINAL KIT, SPARK PLUG (2 required per assembly)
		85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ] $8.19 10 In Stock.
#13	33-97180	SPARK PLUG (NGK #BUZHW) (2 required per assembly) (See Service Bulletin 91-36)
		33-97180 - NGK BUHW Note: Priced Individually [ More info ] Unavailable
		33-97180Q - NGK Spark Plug Buhw - Priced Individually [ More info ] Unavailable
		33-896329827 - Spark Plug - L76V - Priced Individually [ More info ] Unavailable
		BUH - NGK Spark Plug, 2422 [ More info ] $8.14 10+ In Stock.
		L76V - Champion Spark Plug ( #827M) [ More info ] $15.33 10+ In Stock.
#13	33-14103570	SPARK PLUG (NGK #BUZHW-2) (2 required per assembly) (See Service Bulletin 91-36)
		33-14103570 - NGK Spark Plug BUZHW-2 - Priced Individually [ More info ] Unavailable
		33-14103Q - NGK BUZHW-2 - Priced Individually [ More info ] Unavailable
#13	33-13686 2	SPARK PLUG (NGK #BU8H) (2 required per assembly) (See Service Bulletin 91-36)
		33-13686 2 - NGK BU8H Note: Priced Individually [ More info ] Unavailable
		33-13686Q - NGK BU8H - Priced Individually [ More info ] Unavailable
		BU8H - NGK Spark Plug, 6431 [ More info ] $7.18 10+ In Stock.
		L6VC - CHAMPION Spark Plug (#885M) [ More info ] $4.27 10+ In Stock.
#13	33-816737 2	SPARK PLUG (NGK #BP8H-N-10) (2 required per assembly) (See Service Bulletin 91-36)
		33-816737 2 - NGK BP8HN-10 Note: Priced Individually [ More info ] Unavailable
		33-816737Q - NGK BP8HN-10 - Priced Individually [ More info ] Unavailable
		BP8H-N-10 - NGK Spark Plug, 4838 [ More info ] $5.71 10+ In Stock.
#13	33-816837 2	SPARK PLUG (NGK #BPZ8H-N-10) (2 required per assembly) (See Service Bulletin 91-36)
		33-816837 2 - NGKBPZ8HN-10 Note: Priced Individually [ More info ] Unavailable
		33-816837Q - NGKBPZ8HN-10 - Priced Individually [ More info ] Unavailable
		33-938 - Spark Plug - QL78YC - Priced Individually [ More info ] Unavailable
		BPZ8H-N-10 - NGK Spark Plug, 4495 [ More info ] $17.03 10+ In Stock.
		QL78YC - Champion Spark Plug ( #938M) [ More info ] $7.73 10+ In Stock.
#14	339-7452A15	SWITCH BOX (1 required per assembly)
		339-7452A15 - Switch Box [ More info ] Unavailable
		339-7452A19 - Switch Box [ More info ] $311.99 $308.13 In Stock
		18-5777-1 - Switch Box [ More info ] $211.43 $191.91 In Stock
		18-5777 - Switch Box 339-7452A19 [ More info ] $224.99 $204.65 10+ In Stock.
		300-33900 - Switch Box, 339-7452A19 [ More info ] $224.99 $172.03 1 In Stock.
#15	10-40019108	SCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCK (3 required per assembly)
		10-40019108 - Screw [ More info ] Unavailable
#17	84-88807A10	WIRE ASSEMBLY, AUXILIARY (2 required per assembly)
		84-88807A10 - Cable Assembly [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#19	86704A 2	STATOR ASSEMBLY, AUXILIARY (1 required per assembly)
		86704A 2 - Stator Assembly [ More info ] Unavailable
		86704T 2 - Stator Assembly [ More info ] Unavailable
		86704A10 - Stator Assembly [ More info ] $311.81 4 In Stock.
#20	10-40001 23	SCREW, (M5 x 30), STATOR ATTACHING (3 required per assembly)
		10-40001 23 - Screw [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#21	86-63813	TERMINAL BLOCK MARINER (1 required per assembly)
		86-63813 - Terminal BLOCK [ More info ] Unavailable
		86-63813 1 - Terminal Block [ More info ] $2.39 10+ In Stock.
#22	10-48409	SCREW, (#10-16 x .625), TERMINAL BLOCK (2 required per assembly)
		10-48409 - Screw - Priced Individually [ More info ] $2.49 7 In Stock.
#23	95845	VOLTAGE REGULATOR (1 required per assembly)
		95845 - Voltage Regulator [ More info ] Unavailable
		95845T - Voltage Regulator, NLA [ More info ] $129.99 $110.09 10+ In Stock.
#24	10-92799	SCREW, (#10-16 x 1.12) (2 required per assembly)
		10-92799 - Screw [ More info ] $1.80 4 In Stock.
#26	84-74725A 2	HARNESS ASSEMBLY (BLACK/RED) (1 required per assembly)
		84-74725A 2 - Harness Assembly [ More info ] $26.59 Available to Order: Shipping delay up to 10 days.
#27	71663	PLUG (1 required per assembly)
		71663 - Plug [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#28	84-65017A 2	HARNESS ASSEMBLY (EXTERNAL) (1 required per assembly)
		84-65017A 2 - Harness Assembly [ More info ] $53.16 1 In Stock.
