Parts for Force 9.9 HP (1996) Cylinder Block Assembly

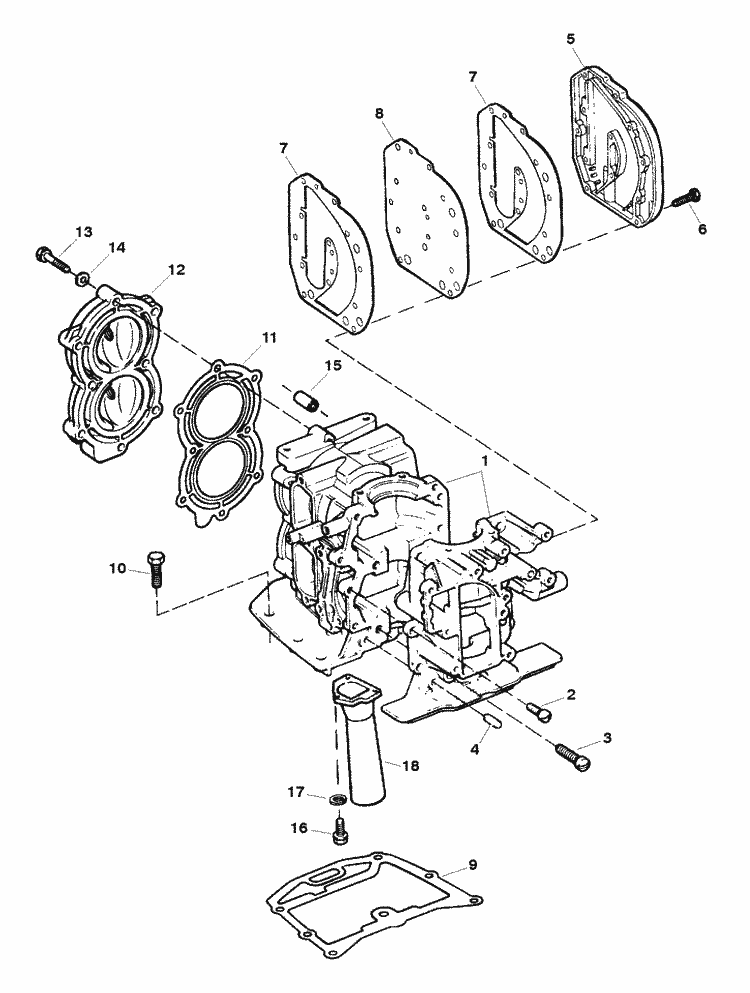

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | FG1036 | GASKET SET-Short Block (1 required per assembly) (9.9 HP MODEL) |
  |
|
FG1036 - Gasket Set -9.9 H, NLA [ More info ] Unavailable |
| # | FG1035 | GASKET SET-Short Block (1 required per assembly) (15 HP MODEL) |
  |
|
FG1035 - Gasket Set-15 HP, NLA [ More info ] Unavailable |
| #1 | 800-819553A14 | SHORT BLOCK ASSEMBLY (Painted) (1 required per assembly) |
  |
800-819553A14 - SHORT BLOCK KIT [ More info ] Unavailable |
|
  |
|
800-819553A15 - Short Block , 9.9 - 15HP, NO Head [ More info ] Unavailable |
| #1 | 800-819553A12 | CYLINDER BLOCK KIT (1 required per assembly) |
  |
|
800-819553A12 - Cylinder Kit, NLA [ More info ] Unavailable |
| #2 | 10-F1107 | SCREW (.250-20 x .750) (8 required per assembly) TORQUE 70 LB IN 7.8 N-M |
  |
|
10-F1107 - Screw [ More info ]
|
| #3 | 10-F1335 | SCREW (.312-18 x 1.250) (4 required per assembly) TORQUE 160 LB IN 18.1 N-M |
  |
|
10-F1335 - Screw, NLA [ More info ] Unavailable |
| #4 | 17-F8559 | PIN-Dowel (2 required per assembly) |
  |
|
17-F8559 - Pin, Dowel [ More info ]
|
| #5 | 824141T | COVER-Exhaust (Painted) (1 required per assembly) |
  |
824141T - Exhaust Cover [ More info ] Unavailable |
|
  |
|
824141T 1 - Exhaust Cover Kit, NLA [ More info ]
|
| #6 | 10-28668 | SCREW (.250-20 x .875) (12 required per assembly) TORQUE 90 LB IN 10.3 N-M |
  |
|
10-28668 - Screw - Priced Individually [ More info ]
|

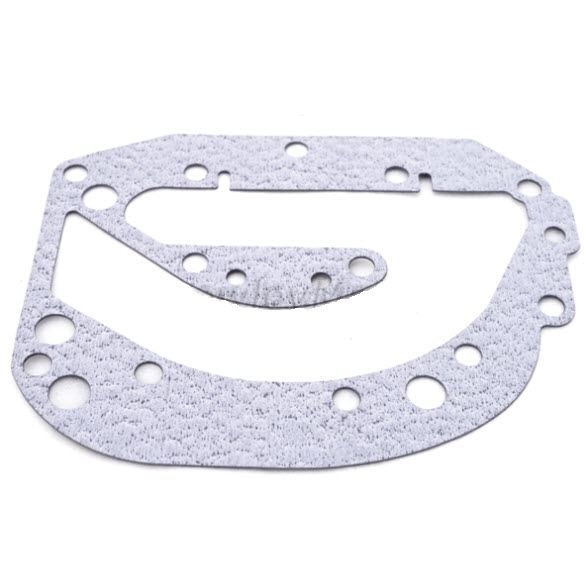

| #7 | 27-F715154 | GASKET-Exhaust Port Cover (2 required per assembly) |
  |
|
27-F715154 - Exhaust Port Cover Gasket [ More info ]
|
| #8 | F715151 | PLATE-Exhaust (1 required per assembly) |
  |
|
F715151 - Exhaust Plate [ More info ]
|
| #9 | 27-F715279 1 | GASKET-Cylinder Mounting (1 required per assembly) |
  |
27-F715279-1 - Cylinder Mounting Gasket [ More info ] Unavailable |
|
  |
|

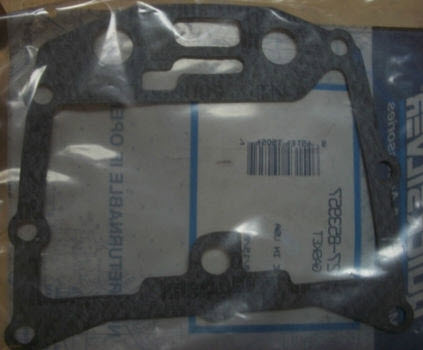

27-853957 - Cylinder Mounting Gasket [ More info ]
|
| #10 | 10-35386 | SCREW (.312-18 x 1.00) (6 required per assembly) TORQUE 160 LB IN 18.1 N-M |
  |
|
10-35386 - Screw - Priced Individually [ More info ]
|

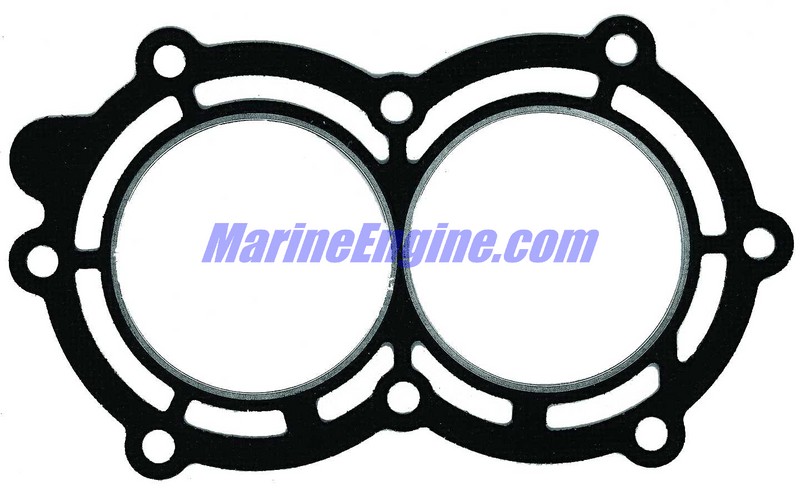

| #11 | 27-F286529 3 | GASKET-Cylinder Head (1 required per assembly) |
  |
27-F286529-3 - Gasket - Unavailable [ More info ] Unavailable |
|
| #12 | 900-F703518T | HEAD-Cylinder (Painted) (1 required per assembly) (9.9 HP MODEL) |
  |
|
900-F703518T - Cylinder Head [ More info ]
|
  |
|

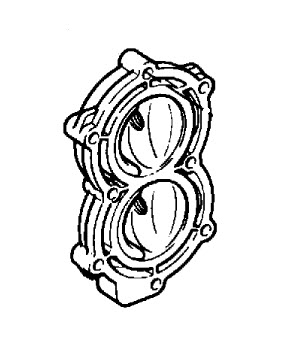

900-F703518T1 - Cylinder Head [ More info ]
|
| #12 | 900-F286518T | HEAD-Cylinder (Painted) (1 required per assembly) (15 HP MODEL) |
  |
900-F286518T - Cylinder Head [ More info ] Unavailable |
|
  |
|
900-F286518T1 - Cylinder Head [ More info ]
|
| #13 | 10-F901938 1 | SCREW-Cylinder Head (Special) (8 required per assembly) TORQUE 130 LB IN 14.7 N-M |
  |
|
10-F901938-1 - Screw, NLA [ More info ]
|
| #14 | 12-37998 | WASHER (8 required per assembly) |
  |
|
12-37998 - Washer - Priced Individually [ More info ]
|
| #15 | 32-F715943 | TUBE-Cylinder Water Jacket (1 required per assembly) |
  |
|
32-F715943 - Water Tube Jacket, NLA [ More info ]
|
| #16 | 10-28636 | SCREW (.250-20 x .750) (3 required per assembly) (15 HP MODEL) TORQUE 70 LB IN 7.8 N-M |
  |
|
10-28636 - Screw - Priced Individually [ More info ]
|
| #17 | 13-26992 | LOCKWASHER (.250) (3 required per assembly) (15 HP MODEL) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #18 | F715660 | TUBE-Exhaust (1 required per assembly) (15 HP MODEL) |
  |
F715660 - Exhaust Tube [ More info ] Unavailable |
|
  |
F715660T - TUBE-EXHAUST [ More info ] Unavailable |
|
  |
|
855993 - TUBE-EXHAUST,NLA [ More info ]
|
