Parts for Force 9.9 HP (1996) Crankshaft & Piston

Revise Search: All Models > 9.9 HP (1996) > 0E127700 & E202999 ( ) > Crankshaft & Piston

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

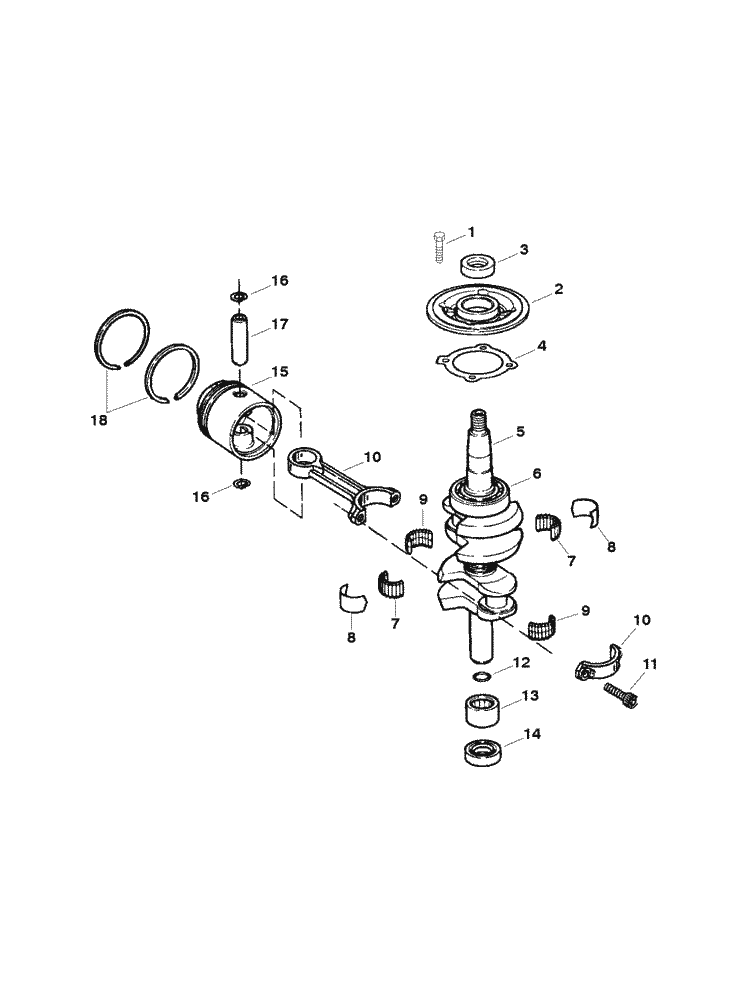

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	800-819553A12	CYLINDER BLOCK KIT (1 required per assembly)
		800-819553A12 - Cylinder Kit, NLA [ More info ] Unavailable
#	FG1036	GASKET SET-Short Block (1 required per assembly) (9.9 HP MODEL)
		FG1036 - Gasket Set -9.9 H, NLA [ More info ] Unavailable
#	800-819553A14	SHORT BLOCK ASSEMBLY (1 required per assembly)
		800-819553A14 - SHORT BLOCK KIT [ More info ] Unavailable
		800-819553A15 - Short Block , 9.9 - 15HP, NO Head [ More info ] Unavailable
#	FG1035	GASKET SET-Short Block (1 required per assembly) (15 HP MODEL)
		FG1035 - Gasket Set-15 HP, NLA [ More info ] Unavailable
#1	10-F1914	SCREW (.250-20 x .750) (4 required per assembly) TORQUE 70 LB IN 7.8 N-M
		10-F1914 - Screw, NLA [ More info ] $2.14 10+ In Stock.
#2	1100-817753A 1	CAGE ASSEMBLY-Crankshaft Bearing (1 required per assembly)
		1100-817753A 1 - Cage Assembly, NLA [ More info ] Unavailable
#3	26-819801	SEAL-Crankshaft-Upper (1 required per assembly)
		26-819801 - Seal [ More info ] $21.99 $18.62 2 In Stock.
#4	27-F286277	GASKET-Crankshaft Bearing Cage (1 required per assembly)
		27-F286277 - Crankshaft Bearing Cage Gasket [ More info ] $2.99 $2.53 10+ In Stock.
#5	400-819803A 2	CRANKSHAFT ASSEMBLY (1 required per assembly)
		400-819803A 2 - CrankShaft Assembly, NLA [ More info ] $150.00 $127.05 8 In Stock.
#6	30-F286028	BEARING-Ball (1 required per assembly)
		30-F286028 - Ball Bearing, NLA [ More info ] $32.00 $27.10 4 In Stock.
#7	29-F286571	ROLLER SET (26 Per Set) (1 required per assembly)
		29-F286571 - Roller Set [ More info ] $7.99 $6.76 10+ In Stock.
#8	FA286155	LINER SET-Centermain Bearing (1 required per assembly)
		FA286155 - Liner Set [ More info ] $17.78 $15.06 10+ In Stock.
#9	FA712228	ROLLER SET (2 Strips-28 Per) (2 required per assembly)
		FA712228 - Roller Set - 2 Strips - 28 Per Strip, NLA [ More info ] Unavailable
#10	600-FS715016	CONNECTING ROD ASSEMBLY (2 required per assembly)
		600-FS715016 - Connecting Rod Assembly, NLA [ More info ] Unavailable
#11	10-F175634	SCREW-Conn Rod (4 required per assembly) TORQUE 80 LB IN 9.0 N-M
		10-F175634 - Screw, NLA [ More info ] Unavailable
#12	25-32509	O RING (1 required per assembly)
		25-32509 - O-ring, (.489 X .070) [ More info ] $2.39 10+ In Stock.
		18-7165-9 - O-Ring (PK5) , 0304174 [ More info ] $10.38 Available to Order: Shipping delay up to 10 days.
#13	31-F343014	BEARING-Crankshaft Lower Main (1 required per assembly)
		31-F343014 - Bearing, NLA [ More info ] Unavailable
#14	26-819396	SEAL-Crankshaft Lower (1 required per assembly)
		26-819396 - Seal [ More info ] $11.49 4 In Stock.
#15	700-819946A 3	PISTON KIT (2 required per assembly)
		700-819946A 3 - Piston Kit-STD [ More info ] Unavailable
#16	53-F31410	RING-Retaining (4 required per assembly)
		53-F31410 - Ring - Retaining [ More info ] Unavailable
#17	41-F712017	PIN-Piston (2 required per assembly)
		41-F712017 - Piston Pin, NLA [ More info ] $8.00 $6.78 10+ In Stock.
#18	39-820484A 1	RING SET-Piston (2 Rings) (2 required per assembly)
		39-820484A 1 - Ring Set-2,NLA [ More info ] Unavailable
