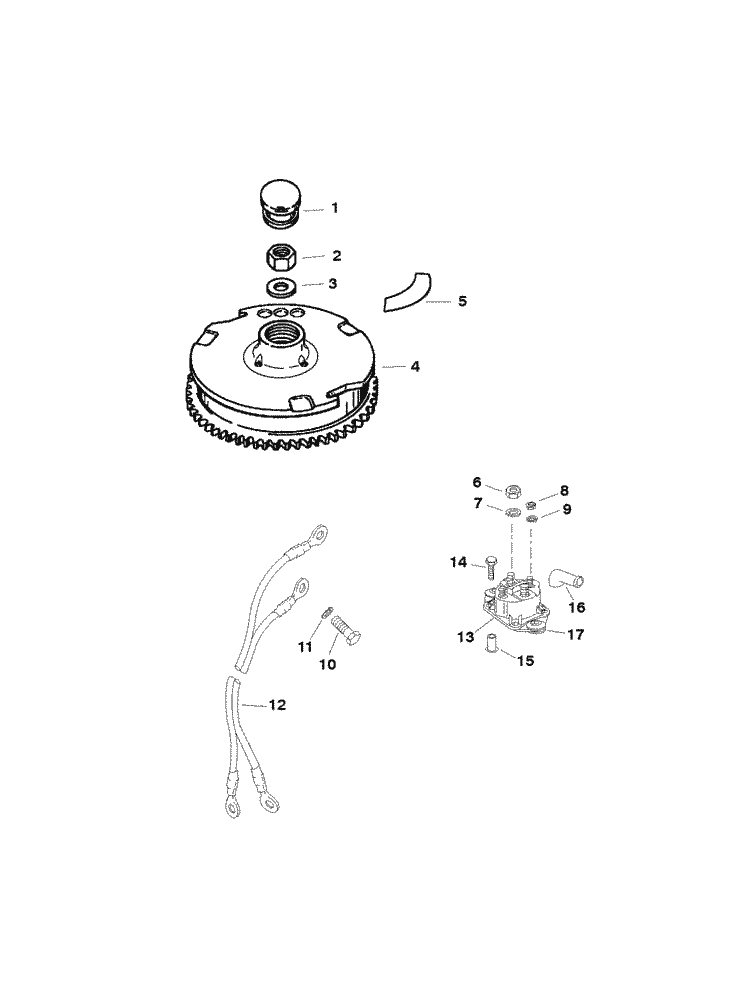

Parts for Force 90 HP (1998) Ignition Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 19-45907 | PLUG (Yellow)-Crankshaft/Flywheel (1 required per assembly) |
  |
|
|
| #2 | 11-42979 | NUT (M16) (1 required per assembly) TORQUE 125 LB. FT. 169.5 N-M |
  |
|
11-42979 - Nut (M16 X 1.5) [ More info ]
|
| #3 | 12-68229 | WASHER (1 required per assembly) |
  |
12-68229 - Washer, (.641 X 1.250 X .190), Flywheel Nut [ More info ] Unavailable |
|
  |
|
12-33001 - Washer, Flywheel Nut [ More info ]
|
| #4 | 261-9008A54 | FLYWHEEL ASSEMBLY (1 required per assembly) |
  |
261-9008A54 - Flywheel [ More info ] Unavailable |
|
  |
261-859236T 6 - Flywheel [ More info ] Unavailable |
|
  |
261-878227T 8 - Flywheel [ More info ] Unavailable |
|
  |
261-859236T07 - Flywheel [ More info ] Unavailable |
|
  |
|
261-859236T14 - Flywheel Assembly [ More info ] Unavailable |
| #5 | 37-825149A 1 | DECAL KIT-Shift To Neutral (1 required per assembly) |
  |
|
37-825149A 1 - Decal Kit [ More info ] Unavailable |
| #6 | 11-68292 | NUT (.312-18) (2 required per assembly) |
  |
|
11-68292 - Nut (5/16 Inch) [ More info ]
|
  |
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #7 | 13-53166 | LOCKWASHER (.312) (2 required per assembly) |
  |
|
13-53166 - LockWasher - Priced Individually [ More info ]
|
| #8 | 11-68219 | NUT (#10-32) (2 required per assembly) |
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #9 | 13-26996 | LOCKWASHER (#10) (2 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #10 | 10-39349 | SCREW (.312-18 x .750)-Ground (1 required per assembly) |
  |
|
10-39349 - Screw - Priced Individually [ More info ]
|
| #12 | 84-F381896 4 | CABLE ASSEMBLY-Battery (1 required per assembly) |
  |
84-F381896-4 - Battery Cable [ More info ] Unavailable |
|
  |
84-855844A 1 - Battery Cable Assembly [ More info ] Unavailable |
|
  |
|
84-88439A50 - Battery Cable Kit [ More info ]
|
  |
|
84-8M0210761 - CABLE KIT-BATTERY Q=T [ More info ] In Stock |
| #13 | 89-817109A 3 | SOLENOID KIT (1 required per assembly) |
  |
|
89-817109A 3 - Solenoid Kit [ More info ]
|
  |
|
18-5835 - Solenoid, 89-817109A3 - 4 Post [ More info ]
|
  |
|
SW109 - Solenoid [ More info ]
|
| #14 | 10-853652 | SCREW (.250-20 x 1.125) (2 required per assembly) TORQUE 75 LB. IN. 8.4 N-M |
  |
|
10-853652 - Screw [ More info ]
|
| #15 | 23-818968 | BUSHING (2 required per assembly) |
  |
23-818968 - Bushing [ More info ] Unavailable |
|
  |
|
238M0214955 - Bushing [ More info ]
|
| #16 | 85-830233 | BOOT (1 required per assembly) |
  |
|
85-830233 - Boot (red) [ More info ]
|
| #17 | 25-822179 | GROMMET (2 required per assembly) |
  |
|
25-822179 - Grommet [ More info ]
|
