Parts for Force 90 HP (1998) Ignition Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 800-818153A64 | POWERHEAD ASSEMBLY (1 required per assembly) |
  |
|
800-818153A64 - PH F75/90 99,NLA [ More info ] Unavailable |
| #1 | 398-832075A 4 | STATOR ASSEMBLY (RED) (1 required per assembly) |
  |
398-832075A 4 - Stator Assembly [ More info ] Unavailable |
|
  |
|
398-832075A21 - Stator Assembly [ More info ]
|
  |
|
18-5870-1 - Stator, 16 AMP , Mercury 398-832075A21 [ More info ]
|
  |
|
18-5870 - Stator, 398-832075A4 [ More info ]
|
| #2 | 10-19926100 | SCREW (#10-24 x 1.00) With Dri Lok (6 required per assembly) TORQUE 50 LB. IN. 5.6 N-M |
  |
|
10-19926100 - Screw - Priced Individually [ More info ]
|

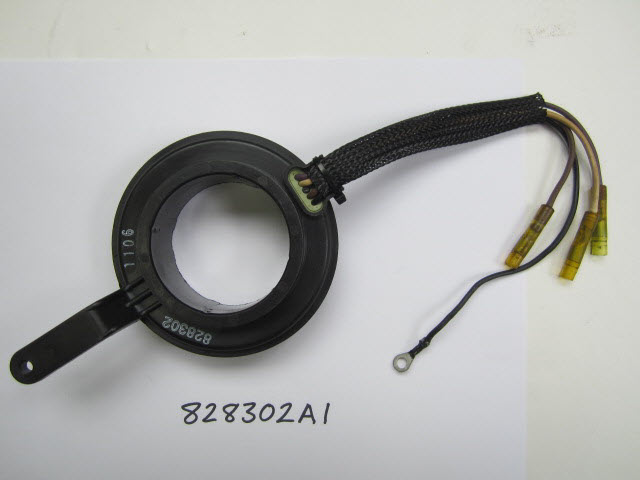

| #3 | 828302A 1 | TRIGGER ASSEMBLY (1 required per assembly) |
  |
|
828302A 1 - Trigger, 3 Cylinder [ More info ] Unavailable |
  |
|

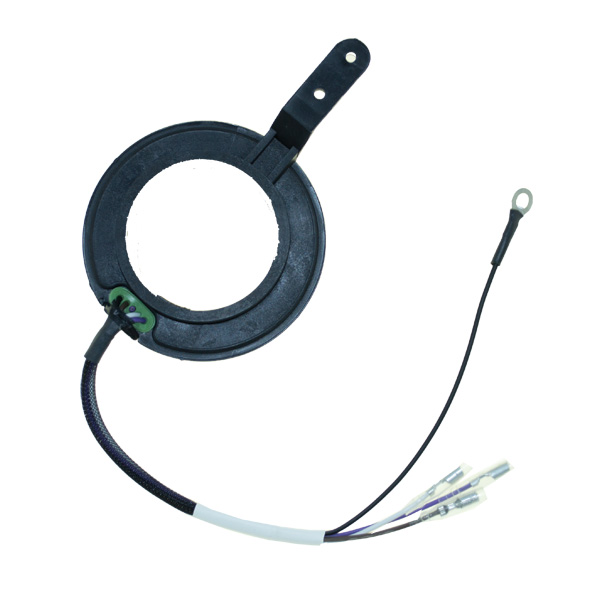

18-99433 - CDM Trigger, Chrysler Force 4 Cylinder 828302A1, 134-8302-3 [ More info ]
|
| #4 | 84-828298A 1 | HARNESS ASSEMBLY-Ignition (1 required per assembly) |
  |
|
84-828298A 1 - Harness Assembly [ More info ]
|
| #5 | 828312 1 | PLATE-Ignition Components (1 required per assembly) |
  |
|
828312 1 - Ignition Mount Plate, NLA [ More info ] Unavailable |
| #6 | 11-826833 6 | NUT (M6) (2 required per assembly) |
  |
11-826833 6 - Nut , Priced Individually [ More info ] Unavailable |
|
  |
11-40144 - NUT Note: Priced Individually [ More info ] Unavailable |
|
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #7 | 54-820437 | CLIP-Harness Retainer (2 required per assembly) |
  |
|
54-820437 - Clip, NLA [ More info ]
|
| #8 | 16-830228 | STUD (.312-18 And .250-28 x 1.750) (3 required per assembly) |
  |
16-830228 - Stud [ More info ] Unavailable |
|
  |
|
16-830228 1 - Stud [ More info ] Unavailable |
| #9 | 828791 | CLIP-Harness Hold Down (1 required per assembly) |
  |
|
|
| #10 | 92753 | RETAINER-Harness (1 required per assembly) |
  |
|
92753 - Harness Retainer [ More info ]
|

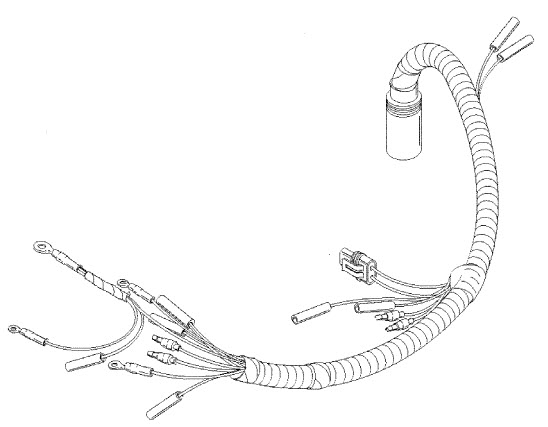

| #11 | 84-828297A 1 | HARNESS ASSEMBLY (1 required per assembly) |
  |
|
84-828297A 1 - Harness Assembly [ More info ] Unavailable |
| #12 | 13541 | PLUG-Male (2 required per assembly) |
  |
|
|
| #13 | 88-812619 | FUSE (20 AMP) (1 required per assembly) |
  |
|
88-812619 - Fuse - Yellow - 20 Amp [ More info ]
|
| #14 | 828054 | COVER-Fuse Housing (1 required per assembly) |
  |
|
828054 - Fuse Cover [ More info ]
|
| #15 | 54-828991 | CLIP-Fuse Holder (1 required per assembly) |
  |
54-828991 - CLIP [ More info ] Unavailable |
|
  |
|
54-828991T - Clip [ More info ]
|
| #16 | 10-822393 12 | SCREW (M5 x 12) (2 required per assembly) |
  |
|
10-822393 12 - SCREW (M5 x 12) [ More info ]
|
| #17 | 44552 | RETAINER-Thermoswitch To Cylinder Head (1 required per assembly) |
  |
44552 - Retainer [ More info ] Unavailable |
|
  |
|
889733 - Retainer [ More info ]
|
| #18 | 87-819022 1 | THERMOSWITCH (1 required per assembly) |
  |
87-819022 1 - ThermoSwitch [ More info ] Unavailable |
|
  |
|
87-819022T01 - ThermoSwitch [ More info ]
|
| #19 | 84-88807A21 | CABLE ASSEMBLY-Black (1 required per assembly) |
  |
|
84-88807A21 - Cable Assembly [ More info ] Unavailable |
| #20 | 10-821291 35 | SCREW (M6 x 35) (2 required per assembly) |
  |
|
10-821291 35 - Screw [ More info ]
|
| #21 | 54-54457 | CLIP (1 required per assembly) |
  |
|
54-54457 - J Clip [ More info ]
|
| #22 | 854514A 1 | VOLTAGE REGULATOR KIT (1 required per assembly) |
  |
854514A 1 - Voltage Regulator [ More info ] Unavailable |
|
  |
|
883071A 1 - Voltage Regulator [ More info ]
|
  |
|
18-5743-1 - Voltage Regulator, Mercury [ More info ]
|
| #23 | 25-822002 | GROMMET (3 required per assembly) |
  |
|
25-822002 - Grommet [ More info ]
|
| #24 | 25-828836 | GROMMET (1 required per assembly) |
  |
|
25-828836 - Grommet, NLA [ More info ] Unavailable |
| #25 | 10-40106 20 | SCREW (M6 x 20) (1 required per assembly) |
  |
|
10-40106 20 - Screw [ More info ]
|
| #26 | 10-821291 16 | SCREW (M6 x 16) (6 required per assembly) |
  |
|
10-821291 16 - Screw - Priced Individually [ More info ]
|
| #27 | 23-822003 | BUSHING (3 required per assembly) |
  |
|
23-822003 - Bushing [ More info ]
|
| #28 | 12-40023 16 | WASHER (3 required per assembly) |
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
| #29 | 11-828451 | NUT (.250-28) (3 required per assembly) TORQUE 40 LB. IN. 4.5 N-M |
  |
|
11-828451 - Nut (.250-28) [ More info ]
|
| #30 | 33-827C | SPARK PLUG (3 required per assembly) (CHAMPION # L76V) TORQUE 20 LB. FT. 27 N-M |
  |
33-827C - SP #L76V Note: Priced Individually [ More info ] Unavailable |
|
  |
|
33-896329827 - Spark Plug - L76V - Priced Individually [ More info ] Unavailable |
  |
|
L76V - Champion Spark Plug ( #827M) [ More info ]
|
| #30 | 33-898 | SPARK PLUG (OPT required per assembly) TORQUE 20 LB. FT. 27 N-M (RFI) (CHAMPION # QL76V) |
  |
33898 - Rod, NLA [ More info ] Unavailable |
|
  |
|
33-896329898 - Spark Plug - QL76V - Priced Individually [ More info ] Unavailable |
  |
|
QL76V - Champion Spark Plug ( #898M) [ More info ]
|
| #31 | 827509A10 | CDM MODULE ASSEMBLY-Ignition (3 required per assembly) (CUT WIRE AS REQUIRED) |
  |
|
827509A10 - CDM Module Assembly [ More info ] Unavailable |
  |
|
18-99161 - CDI Module MERCURY 114-7509 827509A10 [ More info ]
|
| #32 | 84-821945A61 | CABLE ASSY-Hi Tension (3 required per assembly) (BLACK-7MM CABLE) (CUT AS REQUIRED) |
  |
|
84-821945A61 - Cable Assembly - Black [ More info ]
|
| #32 | 84-857124A 1 | CABLE ASSY-Hi Tension (3 required per assembly) (GRAY-8MM CABLE) (CUT AS REQUIRED) |
  |
|
84-857124A 1 - Cable Assembly - Gray [ More info ]
|
| #33 | 85-63709A 1 | BOOT/TERMINAL KIT-Ignition Cable (3 required per assembly) (BLACK-FOR 7MM CABLE) |
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #33 | 85-857074A 1 | BOOT/TERMINAL KIT-Ignition Cable (3 required per assembly) (GRAY-FOR 8MM CABLE) |
  |
|
85-857074A 1 - Boot Kit - Gray [ More info ]
|
| #34 | 54-816311 | CABLE TIE (8.00 Inch) (AR required per assembly) |
  |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #35 | 37-819526 | DECAL-Throttle Cable Adjustment (1 required per assembly) |
  |
|
37-819526 - Decal - Cable Adj, NLA [ More info ] Unavailable |
| #36 | 12-89302 | WASHER (1 required per assembly) |
  |
|
12-89302 - Washer (.203 X .406 X .040) [ More info ]
|
| #37 | 12-29245 | WASHER (1 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
