Parts for Force 120 HP (1990 L-Drive) Crankshaft & Piston

Revise Search: All Models > 120 HP (1990 L-Drive) > 120LD90A ( ) > Crankshaft & Piston

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

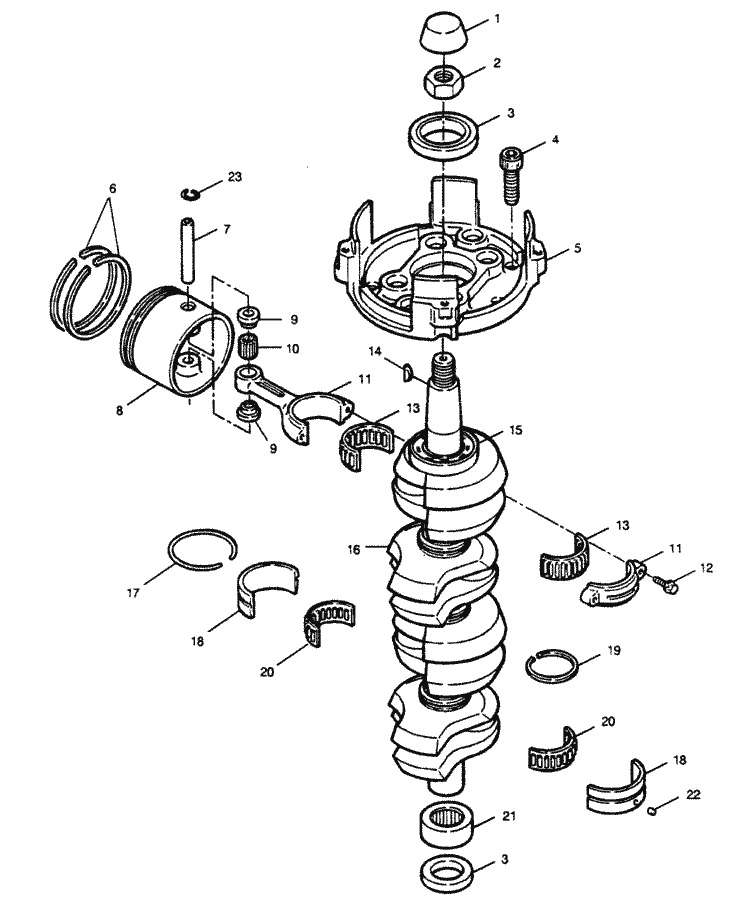

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	39-817869A 3	RING, PISTON - .030 OVERSIZE (4 required per assembly)
		39-817869A 3 - Rings - 2-.030 [ More info ] $28.00 $23.72 3 In Stock.
#	FSA694015	PISTON - .010 OVERSIZE (4 required per assembly)
		700-FSA694015 - Piston - .010 [ More info ] Unavailable
#	FSA663260	RING, PISTON - .010 OVERSIZE (4 required per assembly)
		FSA663260 - Ring Set-2-.010 [ More info ] Unavailable
		39-817869A 2 - Rings - 2-.010, NLA [ More info ] $27.78 $23.53 10 In Stock.
#	700-818134A 1	PISTON - .030 OVERSIZE (4 required per assembly)
		700-818134A 1 - Piston-.030, NLA [ More info ] Unavailable
#1	F2067	CAP (1 required per assembly)
		19-F2067 - Cap, NLA [ More info ] Unavailable
#2	F1968	NUT, 3/4 - 16 (1 required per assembly)
		11-F1968 - Nut (3/4-16) [ More info ] $19.69 10+ In Stock.
#3	F523146-1	SEAL, CRANKSHAFT (2 required per assembly)
		26-F523146-1 - Seal [ More info ] Unavailable
		26-828627 - Seal [ More info ] $22.92 $19.81 10+ In Stock.
#4	F2081	SCREW, 1/4 - 20 X 3/4 (5 required per assembly)
		F2081 - Screw [ More info ] Unavailable
		10-92160 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#5	F2A615144	CAGE, BEARING W/SEAL (1 required per assembly)
		F2A615144 - Cage Assembly [ More info ] $41.85 1 In Stock.
		1100-818070A 1 - Cage Assembly, NLA [ More info ] Unavailable
#6	39-817869A 1	RING, PISTON - STANDARD (4 required per assembly)
		39-817869A 1 - Rings - 2 - Standard [ More info ] $46.18 4 In Stock.
		18-39010 - Rings, 39-817869A1 [ More info ] $56.71 $41.12 1 In Stock.
#7	F694017	PIN, PISTON (4 required per assembly)
		41-F694017 - 41F6940171 [ More info ] Unavailable
		41-F694017-1 - Piston Pin, NLA [ More info ] Unavailable
#8	F694015	PISTON - STANDARD (4 required per assembly)
		700-F694015 - Piston-STD, NLA [ More info ] $95.20 $80.63 7 In Stock.
#9	F366215	SPACER, PISTON PIN (8 required per assembly)
		23-F366215 - Spacer - Piston Pin [ More info ] $6.66 $5.64 3 In Stock.
#10	F335217-1	BEARING, PISTON PIN (26 PER SET) (4 required per assembly)
		31-F335217-1 - Bearing - Piston Pin [ More info ] $6.99 $5.91 10+ In Stock.
#11	600-818052A 4	ROD, CONNECTING W/CAP AND SCREW (4 required per assembly)
		600-818052A 4 - Connecting Rod Assembly [ More info ] Unavailable
		600-818052A 6 - Connecting Rod [ More info ] Unavailable
		600-818052T 6 - Connecting Rod [ More info ] $53.88 10+ In Stock.
#12	F85634-2	SCREW, CONNECTING ROD (8 required per assembly)
		10-F85634-2 - Connecting Rod Screw [ More info ] Unavailable
		10-91012 - Screw - Special - Priced Individually [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#13	FK85228-1	BEARING CAGE W/ROLLERS (4 required per assembly)
		FK85228-1 - Cage/Roller Set [ More info ] Unavailable
		31-62596A 2 - Cage Roller, for One Rod Only [ More info ] $199.99 $169.38 10+ In Stock.
#14	F85498-1	KEY, FLYWHEEL (1 required per assembly)
		28-F85498-1 - Key [ More info ] $12.09 2 In Stock.
#15	F284659-2	BEARING, UPPER CRANKSHAFT MAIN (1 required per assembly)
		30-F284659-2 - Ball Bearing [ More info ] $43.99 1 In Stock.
		30-803893T - Ball Bearing [ More info ] $109.30 4 In Stock.
#16	FA698018	CRANKSHAFT W/UPPER MAIN BEARING (1 required per assembly)
		FA698018 - Crankshaft [ More info ] Unavailable
		400-819462A 1 - Crankshaft [ More info ] Unavailable
		400-819448A 6 - Crankshaft Kit [ More info ] Unavailable
		400-819448A 9 - Crankshaft Kit,NLA [ More info ] Unavailable
#17	F85410	SNAP RING (3 required per assembly)
		53-F85410 - Ring, Snap, NLA [ More info ] Unavailable
#18	FA85655-1	RACE, CRANKSHAFT MAIN BEARING W/SNAP RING (3 required per assembly)
		31-FA85655-1 - Bearing - Center Main [ More info ] Unavailable
		31-803604T - Bearing - Center Main [ More info ] $83.49 $79.92 7 In Stock.
#19	F316579	SEAL, CRANKCASE (3 required per assembly)
		F316579 - Crankcase Seal [ More info ] $18.09 1 In Stock.
#20	F85571	BEARING (3 required per assembly)
		F85571 - Bearing Cage with Roller [ More info ] $34.99 $29.63 3 In Stock.
		31-819193 - Bearing Assembly [ More info ] Unavailable
#21	31-818050A 2	BEARING, CRANKSHAFT LOWER W/SEAL (1 required per assembly)
		31-818050A 2 - Bearing - Crankshaft Lower Main [ More info ] Unavailable
		31-818050A 3 - Bearing - Lower [ More info ] Unavailable
		31-818050T 3 - Bearing Assembly [ More info ] $256.58 Available to Order: Shipping delay up to 10 days.
#22	F85909-1	PIN, BEARING LOCATING (PRESSED INTO BLOCK) (4 required per assembly)
		17-F85909-1 - PIN-LOCATING [ More info ] Unavailable
		17-823605 - Locating Pin [ More info ] $4.54 10+ In Stock.
#23	F694096	RETAINER (8 required per assembly)
		40-F694096 - Lock Ring, NLA [ More info ] $1.39 $1.17 3 In Stock.
