Parts for Force 120 HP (1990 L-Drive) Carburetor Adapters & Fuel Lines

Revise Search: All Models > 120 HP (1990 L-Drive) > 120LD90A ( ) > Carburetor Adapters & Fuel Lines

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

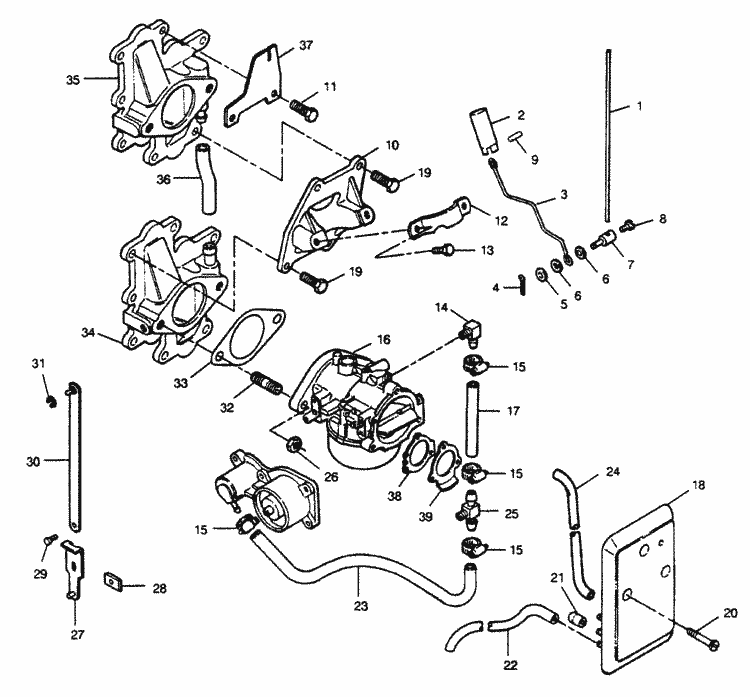

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	F184033-1	SWIVEL, CHOKE (TOP CARBURETOR) (1 required per assembly)
		F184033-1 - Swivel [ More info ] $9.12 10+ In Stock.
#	F699061	CARBURETOR COMPLETE (BOTTOM) (1 required per assembly)
		F699061 - Carburetor [ More info ] Unavailable
		1300-F699061-3 - Carburetor, NLA [ More info ] Unavailable
#1	F85509-1	LINK, CHOKE (1 required per assembly)
		F85509-1 - Choke Link E, NLA [ More info ] Unavailable
#2	F391926-1	PLUNGER, CHOKE SOLENOID (1 required per assembly)
		F391926-1 - Choke Plunger, NLA [ More info ] $41.85 $35.45 3 In Stock.
#3	F440925	ROD, CHOKE SOLENOID (1 required per assembly)
		F440925 - Choke Rod, NLA [ More info ] $2.78 $2.36 10+ In Stock.
#4	F1014	COTTER PIN (1 required per assembly)
		F1014 - Cotter Pin - Priced Individually [ More info ] Unavailable
		18-26953 - Cotter Pin - Priced Individually [ More info ] $4.19 7 In Stock.
#5	F8080	WASHER (3 required per assembly)
		F8080 - Lock Washer - Priced Individually [ More info ] Unavailable
		13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable
#6	F184579	SEAL (5 required per assembly)
		25-F184579 - O-Ring [ More info ] Unavailable
		25-68211 - O-Ring [ More info ] $1.40 Available to Order: Shipping delay up to 10 days.
#7	F85033	SWIVEL, CHOKE (BOTTOM CARBURETOR) (1 required per assembly)
		F85033 - Swivel [ More info ] $49.99 $42.33 10+ In Stock.
#8	F1059	SCREW, 6 - 32 X 1/4 (2 required per assembly)
		10-F1059 - Screw -ss, NLA [ More info ] $2.93 10+ In Stock.
#9	F2033	GROOVE PIN (1 required per assembly)
		17-F2033 - Pin, Groove, NLA [ More info ] $1.53 $1.29 10+ In Stock.
#10	F372958	BRACKET, CHOKE SOLENOID (1 required per assembly)
		F372958 - Bracket,NLA [ More info ] $7.00 $5.93 1 In Stock.
#11	F2008	SCREW, 1/4 - 20 X 7/8 (10 required per assembly)
		10-F2008 - Screw -ss, NLA [ More info ] $3.22 10+ In Stock.
#12	F85317-3	CLAMP, CHOKE SOLENOID (1 required per assembly)
		54-F85317-3 - Clamp [ More info ] $4.83 $4.10 10+ In Stock.
#13	F1236	SCREW, 1/4 - 20 X 1/2 (2 required per assembly)
		F1236 - Screw [ More info ] Unavailable
		10-98253 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#14	F695314	ELBOW, FUEL (TOP CARBURETOR (1 required per assembly)
		22-F695314 - Elbow, NLA [ More info ] $17.09 $14.48 4 In Stock.
#15	F698772	CLAMP (4 required per assembly)
		54-F698772 - Clamp [ More info ] $5.69 $4.56 6 In Stock.
#16	F698061	CARBURETOR COMPLETE (TOP) (1 required per assembly)
		F698061 - Carburetor [ More info ] Unavailable
		1300-F698061-3 - Carburetor [ More info ] Unavailable
#17	FS698865	HOSE (1 required per assembly)
		FS698865 - Hose W/TAPE [ More info ] Unavailable
		32-827228 81 - Hose-38 INCH [ More info ] Unavailable
#18	F698826	COVER, CARBURETOR (2 required per assembly)
		F698826 - Cover, NLA [ More info ] Unavailable
#19	F1532	SCREW, 1/4 - 20 X 1 (4 required per assembly)
		10-F1532 - Screw [ More info ] Unavailable
		10-819110100 - Screw [ More info ] $0.50 Available to Order: Shipping delay up to 10 days.
#20	F525064	SCREW, 1/4 - 20 X 1-3/4 (6 required per assembly)
		10-F525064 - SCREW,NLA [ More info ] Unavailable
#21	F698942	BUMPER (1 required per assembly)
		19-F698942 - BUMPER,NLA [ More info ] Unavailable
#22	F698758	HOSE, CARBURETOR COVER DRAIN (2 required per assembly)
		F698758 - 32F691796 [ More info ] Unavailable
		32-F691796 - Hose [ More info ] Unavailable
		32-819029 62 - Hose -22.5 Inch, NLA [ More info ] $11.84 10+ In Stock.
#23	F695754	HOSE, FUEL LINE (1 required per assembly)
		32-F695754 - Hose-19.5 INCH [ More info ] Unavailable
#24	F698360	HOSE, FUEL BOWL VENT (2 required per assembly)
		F698360 - 32F695865 [ More info ] Unavailable
		32-F695865 - TUBING [ More info ] Unavailable
		32-99126 88 - Tubing - 36 Inch [ More info ] $30.09 Available to Order: Shipping delay up to 10 days.
#25	F85314-1	FITTING, FUEL (BOTTOM CARBURETOR) (1 required per assembly)
		22-F85314-1 - Fitting [ More info ] Unavailable
		22-64706001 - Fitting [ More info ] $35.54 Available to Order: Shipping delay up to 10 days.
#26	F1346	NUT, 3/8 - 16 (4 required per assembly)
		11-F1346 - Hex Nut, 3/8 - 16 [ More info ] $0.44 2 In Stock.
		11-86226 - Nut (3/8-16) [ More info ] $2.21 10 In Stock.
		11-8M0204671 - NUT [ More info ] Unavailable
#27	FA85193	TIE BAR END W/SWIVEL (1 required per assembly)
		FA85193 - Bar Assembly - Throttle, NLA [ More info ] $16.76 10+ In Stock.
#28	F1693	NUT, TIE BAR RETAINER (1 required per assembly)
		11-F1693 - Nut (#8-32) [ More info ] $2.99 3 In Stock.
#29	F1064	SCREW, #8 - 32 X 3/8 (1 required per assembly)
		10-F1064 - Screw -ss [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#30	FA178233	TIE BAR, THROTTLE W/SWIVEL (1 required per assembly)
		FA178233 - Bar Assembly, NLA [ More info ] $14.48 $12.26 10+ In Stock.
#31	F90807	RING, RETAINING (2 required per assembly)
		53-F90807 - Retainer [ More info ] Unavailable
		53-21058 - E-Ring, NLA [ More info ] Unavailable
#32	F440209	STUD (4 required per assembly)
		16-F440209 - STUD [ More info ] Unavailable
		16-819194 - STUD [ More info ] Unavailable
		16-826387 - STUD [ More info ] Unavailable
		16-826387 1 - STUD [ More info ] $1.88 1 In Stock.
		16-826387 2 - Stud [ More info ] $1.67 $1.42 10 In Stock.
#33	F440906	GASKET, CARBURETOR (2 required per assembly)
		27-F440906 - Carburetor Gasket [ More info ] $3.09 8 In Stock.
#34	FA698167	ADAPTER, LOWER CARBURETOR W/FITTING & STUDS (1 required per assembly)
		FA698167 - FA698167 - ADAPTER ASSY [ More info ] Unavailable Replaced by -817879A1
		817879A 1 - Adapter,NLA [ More info ] Unavailable
#35	FA440157	ADAPTER, UPPER CARBURETOR W/FITTING & STUDS (1 required per assembly)
		FA440157 - Adapter-UPPER [ More info ] Unavailable
		817799A 1 - Adapter Assembly - Upper, NLA [ More info ] $36.00 $30.49 3 In Stock.
#36	F440254	HOSE (BALANCE TUBE) (1 required per assembly)
		F440254 - Hose - Balance Tube [ More info ] Unavailable
		32-817736A 1 - Hose Kit [ More info ] Unavailable
		32-817736 - Hose -6 Inch [ More info ] Unavailable
		32-830758 21 - Hose -6 Inch [ More info ] $13.89 Available to Order: Shipping delay up to 10 days.
#37	F500894	POINTER, TIMING (1 required per assembly)
		F500894 - Pointed- Timing, NLA [ More info ] $4.79 10+ In Stock.
#38	F698836	GASKET (2 required per assembly)
		27-F698836 - Carburetor Intake Gasket [ More info ] $12.39 Available to Order: Shipping delay up to 10 days.
#39	F698404	PLATE, DEFLECTOR (2 required per assembly)
		F698404 - Plate [ More info ] $5.39 4 In Stock.
