TT3005 - Johnson Evinrude Power Tilt and Trim
|
  |
Your Price
$1,099.00
Available to Order SPEEDY DELIVERY
30-DAY RETURN
FULL WARRANTY
Part Number
TT3005
Manufacturer
SEI Marine
Replaces OEM 0438962.
TT3005 - Johnson / Evinrude Power Tilt and Trim Unit from the API Marine division of SEI.

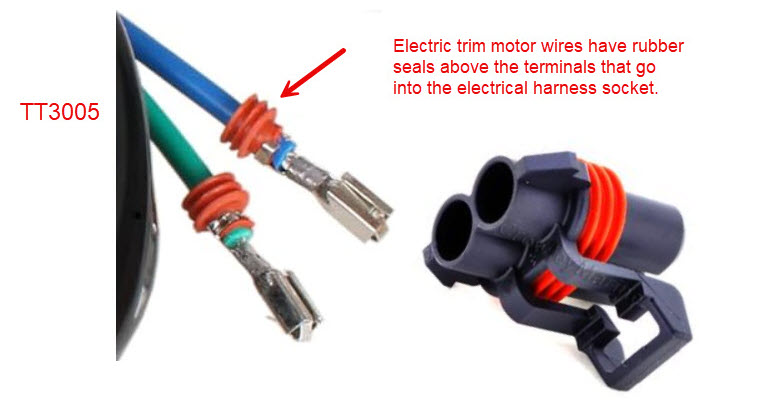

NOTE: Confirm your trim motor wires have the type of terminals shown in the photos. Contact us with your engine model number for assistance if needed. If your wires have different terminals you may need TT3003 which has flat unsealed connectors.
Complete 3-Ram Power Tilt Trim system with Composite Housing Motor.
Replaces SHOWA style PTT systems. Does not include mounting rod (pin). The bushings are included.
Motor is supplied with sealed female push on terminals.
Fits:
1998 75-150 HP Ficht Fuel Injected models
1999 & newer 75-115 HP V4 and 135-175 HP V6.
Also covers some higher horsepower models if the OEM number matches those shown below. Please include your model number in the comments section of the shopping cart.
The API warranty on this Power Tilt and Trim unit is 12 months (not 3 years).
Replaces OMC Numbers:
0438962
5005113
5005114
5005115
5007473
5007662
All SEI Trim Tilt systems are factory filled with Automatic Transmission Fluid (Type Dexron III) and cycled 25-35 cycles to Bleed any air from the system. The Trim Tilt system is under pressure and ready to be installed when you receive them.
*** NOTE: If you have a dual engine installation you should replace BOTH Tilt and Trim units rather than just one in order to maintain consistent speed and range of travel. ***
SEI Marine Tt3005 - Johnson Evinrude Power Tilt And Trim is equivalent to parts:
- 5007662 Evinrude Johnson OMC BRP
- 5007473 Evinrude Johnson OMC BRP
- 5005429 Evinrude Johnson OMC BRP
- 5005115 Evinrude Johnson OMC BRP
- 5005114 Evinrude Johnson OMC BRP
- 5005113 Evinrude Johnson OMC BRP
- 438962 Evinrude Johnson OMC BRP
SEI Gearcases & Complete Outdrives
SEI Complete Trim & Tilt Units
SEI is the largest manufacturer of aftermarket sterndrives and outboard lower units in the world. Every SEI complete gearcase and outdrive carries a 3-Year No-Fault Warranty. SEI also manufactures complete tilt and trim uints as well as shafting and other individual parts. Their subsidiary company API Marine manfuactures a quality line of aftermarket outboard starter and trim motors.
Replaces OEM 0438962.TT3005 - Johnson / Evinrude Power Tilt and Trim Unit from the API Marine division of SEI. NOTE: Confirm your trim motor wires have the type of terminals shown in the photos. Contact us with your engine model number for assistance if needed. If your wires have different terminals you may need TT3003 which has flat unsealed connectors. Complete 3-Ram Power Tilt Trim system with Composite Housing Motor. Replaces SHOWA style PTT systems. Does not include mounting rod (pin). The bushings are included. Motor is supplied with sealed female push on terminals. Fits: 1998 75-150 HP Ficht Fuel Injected models 1999 and newer 75-115 HP V4 and 135-175 HP V6.Also covers some higher horsepower models if the OEM number matches those shown below. Please include your model number in the comments section of the shopping cart. The API warranty on this Power Tilt and Trim unit is 12 months (not 3 years). Replaces OMC Numbers:043896250051135005114500511550074735007662 All SEI Trim Tilt systems are factory filled with Automatic Transmission Fluid (Type Dexron III) and cycled 25-35 cycles to Bleed any air from the system. The Trim Tilt system is under pressure and ready to be installed when you receive them.*** NOTE: If you have a dual engine installation you should replace BOTH Tilt and Trim units rather than just one in order to maintain consistent speed and range of travel. ***
