TT3003 - Johnson Evinrude 3 Ram Power Tilt and Trim
|
  |
Your Price
$1,099.00
Available to Order SPEEDY DELIVERY
30-DAY RETURN
FULL WARRANTY
Part Number
TT3003
Manufacturer
SEI Marine
Replaces OEM 0433460.
TT3003 - Johnson / Evinrude Power Tilt and Trim Unit from the API Marine division of SEI.

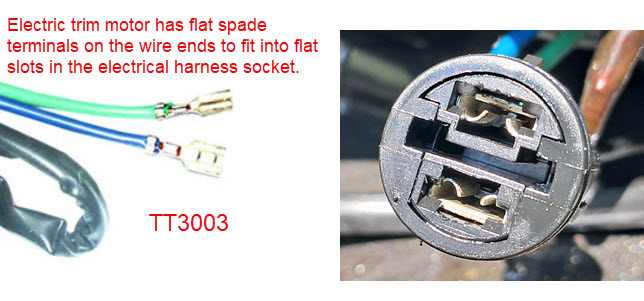

NOTE: Confirm your trim motor wires have the type of terminals shown in the photos. Contact us with your engine model number for assistance if needed. If your wires have different terminals you may need TT3005 which has sealed connectors.

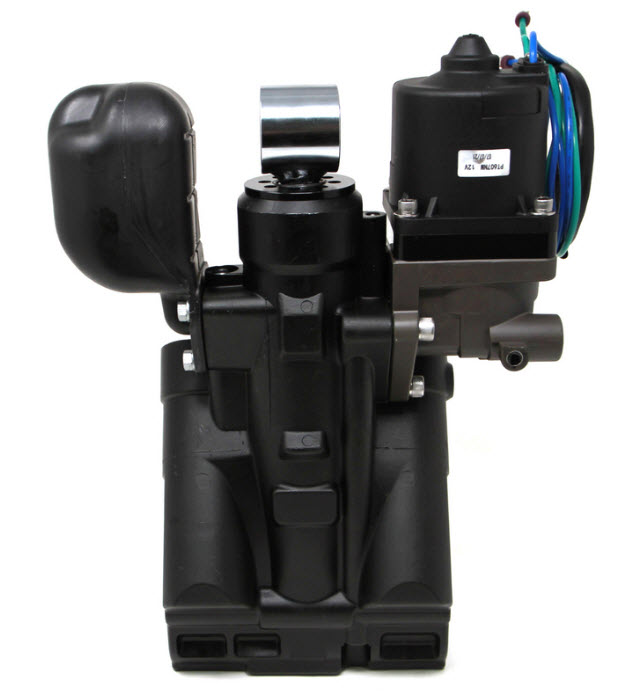

Complete 3-Ram Power Tilt Trim system with Composite Housing Motor.
Replaces SHOWA style PTT systems. Does not include mounting rod (pin). The bushings are included.
Fits Johnson/Evinrude 1988-1998 Carbureted 88-225 HP (also works for certain lower horsepower motors if the original part number cross references in the drawings. Contact us to confirm or include model number in comments in the shopping cart).
Motor is supplied with female spade terminals.
The API warranty on this Power Tilt and Trim unit is 12 months (not 3 years).
Replaces OMC Numbers:
0438528
0438534
0434396
0434397
5006421
0438533
5005429
All SEI Trim Tilt systems are factory filled with Automatic Transmission Fluid (Type Dexron III) and cycled 25-35 cycles to Bleed any air from the system. The Trim Tilt system is under pressure and ready to be install when you receive them.
*** NOTE: If you have a dual engine installation you should replace BOTH Tilt and Trim units rather than just one in order to maintain consistent speed and range of travel. ***
SEI Marine Tt3003 - Johnson Evinrude 3 Ram Power Tilt And Trim is equivalent to parts:
- 5006421 Evinrude Johnson OMC BRP
- 5005429 Evinrude Johnson OMC BRP
- 438534 Evinrude Johnson OMC BRP
- 438533 Evinrude Johnson OMC BRP
- 438528 Evinrude Johnson OMC BRP
- 434397 Evinrude Johnson OMC BRP
- 434396 Evinrude Johnson OMC BRP
- 433460 Evinrude Johnson OMC BRP
SEI Gearcases & Complete Outdrives
SEI Complete Trim & Tilt Units
SEI is the largest manufacturer of aftermarket sterndrives and outboard lower units in the world. Every SEI complete gearcase and outdrive carries a 3-Year No-Fault Warranty. SEI also manufactures complete tilt and trim uints as well as shafting and other individual parts. Their subsidiary company API Marine manfuactures a quality line of aftermarket outboard starter and trim motors.
Replaces OEM 0433460.TT3003 - Johnson / Evinrude Power Tilt and Trim Unit from the API Marine division of SEI. NOTE: Confirm your trim motor wires have the type of terminals shown in the photos. Contact us with your engine model number for assistance if needed. If your wires have different terminals you may need TT3005 which has sealed connectors. Complete 3-Ram Power Tilt Trim system with Composite Housing Motor. Replaces SHOWA style PTT systems. Does not include mounting rod (pin). The bushings are included. Fits Johnson/Evinrude 1988-1998 Carbureted 88-225 HP (also works for certain lower horsepower motors if the original part number cross references in the drawings. Contact us to confirm or include model number in comments in the shopping cart). Motor is supplied with female spade terminals. The API warranty on this Power Tilt and Trim unit is 12 months (not 3 years). Replaces OMC Numbers:0438528043853404343960434397500642104385335005429 All SEI Trim Tilt systems are factory filled with Automatic Transmission Fluid (Type Dexron III) and cycled 25-35 cycles to Bleed any air from the system. The Trim Tilt system is under pressure and ready to be install when you receive them. *** NOTE: If you have a dual engine installation you should replace BOTH Tilt and Trim units rather than just one in order to maintain consistent speed and range of travel. ***
