15171-001 - LED Indicator INT TACTILE SWTCH Kit W/PT
|
List Price
$559.99
Your Price
$553.22
1 in stock.
Item Number
2362079
Model Number
15171-001
Manufacturer
Lenco Marine
Category
Trim Tabs and Stablizers
Section
Lenco Led Trim Switch Indicator

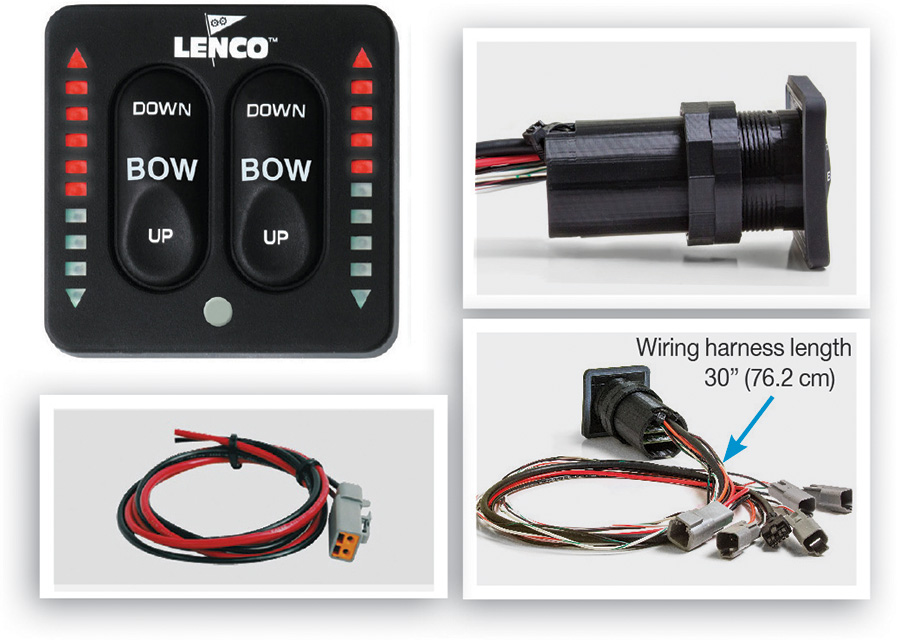

Complete your Lenco trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.Features Include:Simple, quick, Plug & Play installationInstant responseBuilt-in retractorLow profile designSelf-contained key pad with waterproof Plug & Play Deutsch connectorsWiring harness length 30" (76.2 cm) from the back of the switch bezel36" power pigtail for control box2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"4.08" clearance required from the back of the key pad's mounting location2 high-intensity LED Indicator displays show the exact position of your trim tabs at all timesPhoto Eye for optimum viewing in all light conditionsBacklit key pad for optimum viewing at nightSelf-Check feature only available on the 15170-001
