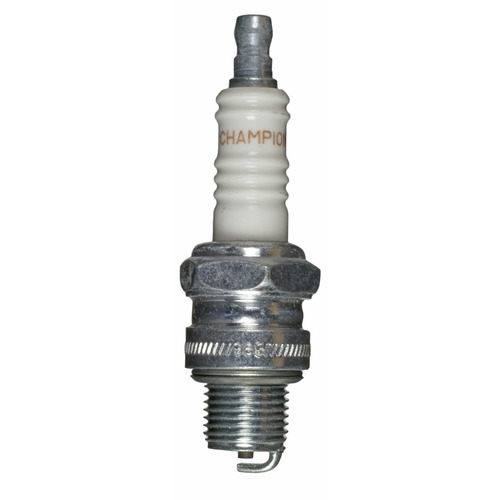

L86C - Champion Spark Plug ( #306)
List Price
Your Price
$3.25
Item Number
1383617
Model Number
L86C
Manufacturer
Champion Spark Plugs
Category
Spark Plugs
Section
Champion Spark Plugs
Sold in Full Boxes Only, PRICED PER PLUG. Complete Spark Plug Charts In Our Shop/Service Catalog
Additional Info
Replaces OEM 0502177.
Plug Type L86C
Seat Type Gasket
Hex Size (Inch) 0.813
Hex Size (MM) 20.650
Thread Size (Inch) 0.551
Thread Size (MM) 14.000
Thread Reach (Inch) 0.5
Taper Diameter (Inch) 0.31
Installed Height (Inch) 2.24
Gap (Inch) 0.022-0.028
Gap (MM) 0.56-0.71
Center Electrode Diameter (Inch) 0.1
Center Electrode Material Nickel Copper Alloy
Ground Electrode Material Nickel Copper Alloy
Ground Electrode Quantity 1
Classification Champion Copper Plus Small Engine
Resistor Plug No
Manufacturer Heat Range 86
Electrical Terminal Type Removable Nut
Champion Champion Spark Plug - L86c/306 is equivalent to parts:
502177 Evinrude Johnson OMC BRP
8M0114738 Mercury Marine
896329306 Mercury Marine
82370M1 Mercury Marine
33896329306 Mercury Marine
33896322 Mercury Marine
33 82370M 1 Mercury Marine
