APPLICATION GUIDE: TOURNAMENT SERIES CYLINDERS & TIE BARS
APPLICATIONS:
Ideal for nearly any multi-engine outboard-powered
boat which sees heavy use.
For use with SeaStar helms and hoses. (See SeaStar
Outboard Steering for list of helm and hose options.)
These cylinders and tie bars are application-specific.
Please see the chart below.
SEASTAR TOURNAMENT CYLINDERS
Tournament Series Cylinders & Tie Bars are ESSENTIAL
for multi-engine boats and recommended by
blue water pros, these rugged, high-performance
cylinders and tie bars are designed with professional
fishermen in mind.
STEERING - Outboard (Hydraulic)
FEATURES:
• Suitable for use with all SeaStar Helms & SeaStar Power Assist.
• Heavy duty universal cylinder.
• Bolt on stainless steel tie bar plates, also reversible
(patent pending).
• Robust design with heavy duty support brackets, barrel, shaft
& seals.
• Superior corrosion resistance.
• New pivot plate design provides smooth articulation and a
sealed joint (patent pending).
• Heavy duty adjustable tie bar (patent pending).
• Equipped with stainless steel adjustable o-ring sealed elbow
fittings which can be easily orientated in any direction.
CONFIGURATION
CYLINDER
HARDWARE KIT
TIE BAR
NOTES
PART NO.
QTY.
PART NO.
QTY.
PART
NO.
QTY.
CENTER TO
CENTER (IN.)
CENTER TO
CENTER (MM)
Single Engine
1
Included
N/A
N/A
N/A
N/A
N/A
Twin Engine -
Single Cylinder
(STBD)
1
1
1
1
1
25.0 - 25.6
25.7 - 30.6
30.7 - 39.0
635 - 650
653 - 777
780 - 991
1, 3, 4, 5, 7
1, 3, 4, 5, 7
1, 3, 4, 5, 7
Twin Engine -
Dual Cylinder
2
1
1
1
1
1
25.0 - 26.5
26.6 - 29.3
29.4 - 34.2
34.3 - 43.0
635 - 673
676 - 744
747 - 869
871 - 1092
1, 3, 4, 5
1, 3, 4, 5
1, 3, 4, 5
1, 3, 4, 5
Triple Engine -
Dual Cylinder
2
1
2
2
25.0 - 27.9
28.0 - 36.0
635 - 709
711 - 914
1, 2, 3, 4, 5, 6
1, 2, 3, 4, 5, 6
Quad Engine -
Dual Cylinder
2
1
Consult SeaStar Solutions technical service
1, 2, 3, 4, 5
Quintuplet Engine
(Plus)
Consult SeaStar Solutions technical service
1, 2, 3, 4, 5
NOTES
1. Installation may vary according to the following factors: engine mounting height,
transom thickness, use of transom savers, tiller bolt location, engine tilt range, and
engine size.
2. For center engine drops greater than 3 inches (76mm), please consult SeaStar Solutions
Technical Service.
3. Tie bar length may vary depending
on toe in/toe out setup. To allow for toe, add or
subtract from your nominal engine center to center distance.
4. Based on recommended engine manufacturer minimum center to center distances. Deviating from
these recommendations may require stroke limiting cylinders and/or engine tilt limiting, please
consult SeaStar Solutions Technical Service.
5. Cylinder's must be plumbed in parallel only, no series connections. Only exception is if cylinders are
utilizing liquid tie bar.
6. Maximum drop: <3 inches (76mm). Contact SeaStar Solutions Technical Support for center engine
drops greater than 3 inches.
7. Extra long tie bar kits available, contact SeaStar Solutions Technical Support for details
IMPORTANT: Each configuration requires a hardware kit and tie bar kit(s), with the exception of the single engine configuration.
NOTE: The Kicker Cable Tie bar will ONLY work with SeaStar HC5345-3, HC5358-3 and HC5348-3 steering cylinders.

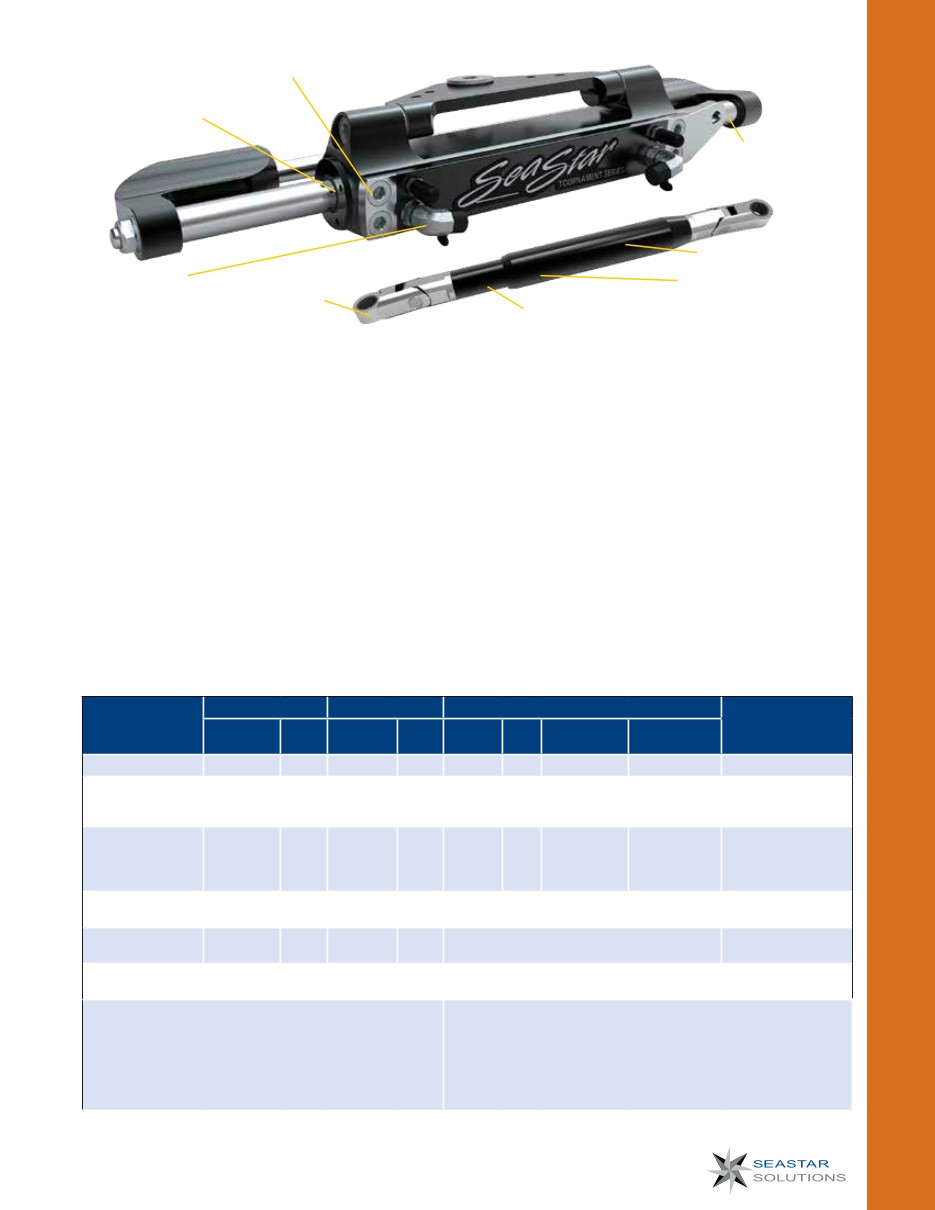

Secondary End Gland Retention
Using Plate Bolts
Robust Wipers
and Seals
Adjustable 90º Stainless
Steel ORB Elbow Fittings
Stainless Steel
Rod Ends
Anodized Aluminum Body
Robust Barrel/Shaft/
Support Brackets
Adjustable Threaded Design
Maximum Stroke Indicator
