BayStar 1.4 Steering Kit (Cont.)
| CSS Drop Down Menu by PureCSSMenu.com | < Previous Page|Next Page > |
46
®
MINIMUM
CYL
NO.
SPLASHWELL DIAG. DIM.
ENGINE
MODEL
OF
CENTER
NO.
ENG.
A
B
C
DISTANCE
1
21”
6”
5”
N/A
(534 mm) (153 mm) (127 mm) (N/A)
1
21”
6”
5”
N/A
(534 mm) (153 mm) (127 mm) (N/A)
1
21”
6”
5”
N/A
(534 mm) (153 mm) (127 mm) (N/A)
1
21”
6”
5”
N/A
(534 mm) (153 mm) (127 mm) (N/A)
(Twin engine applications not available at this time.)

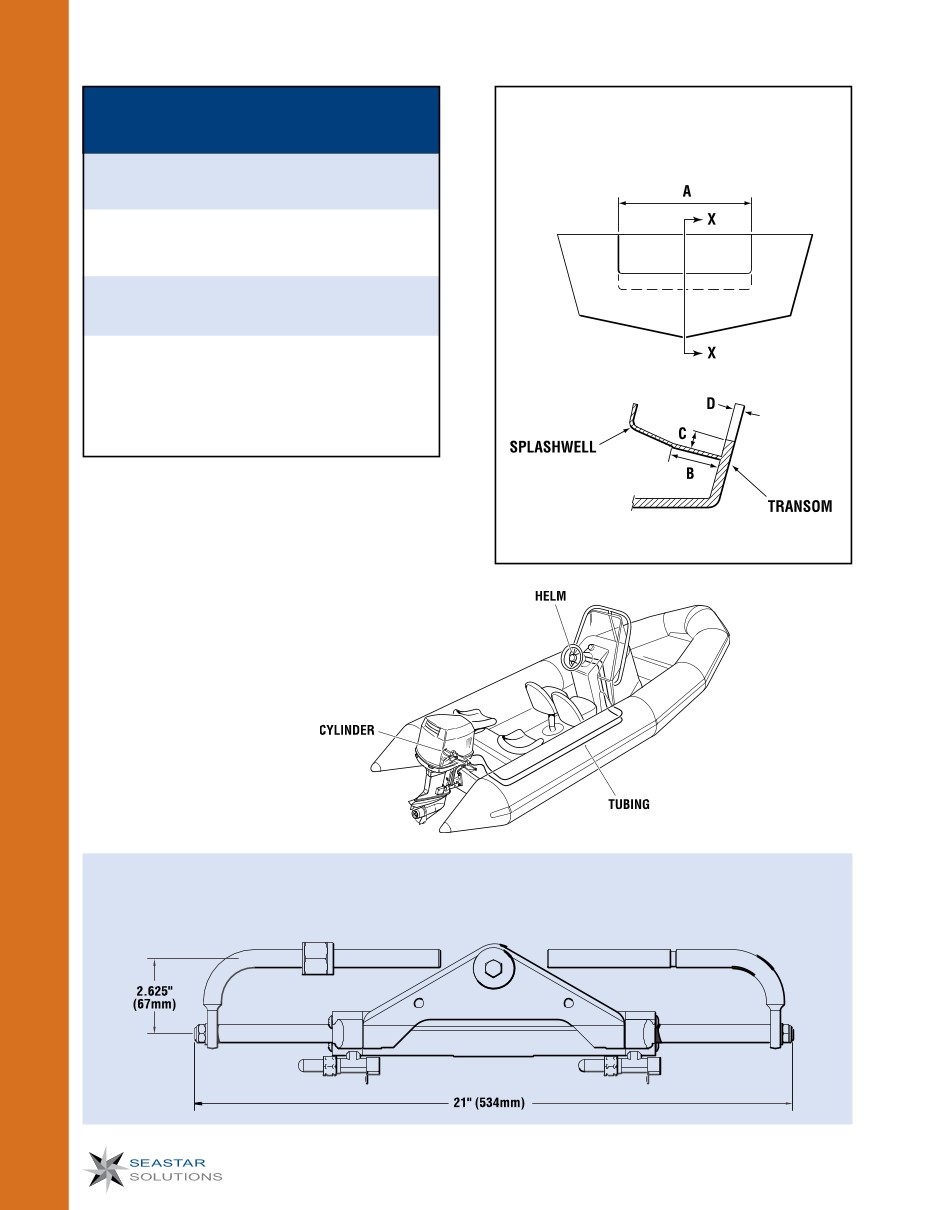

REQUIRED SPLASHWELL DIMENSIONS/
MINIMUM ENGINE CENTER DISTANCES:
(refer to chart at left)
SPLASHWELL SIZE REQUIREMENTS:
BAYSTAR CYLINDER DIMENSIONS:
NOTES:
1. Ensure there is no interference between the BayStar cylinder
rod and the splashwell boot or engine controls & cables.
2. Dimensional restrictions also apply to external motor mount
brackets.
3. Ensure dimension “A” can be maintained at 32" (813mm)
throughout the full trim/tilt range.
4. Maximum allowable transom thickness for BayStar cylinders is
3” (76mm).
5. Engines less than 70 HP may require up to 1” (25mm) of
additional splashwell clearance.
STEERING - Outboard (Hydraulic)
