20
®

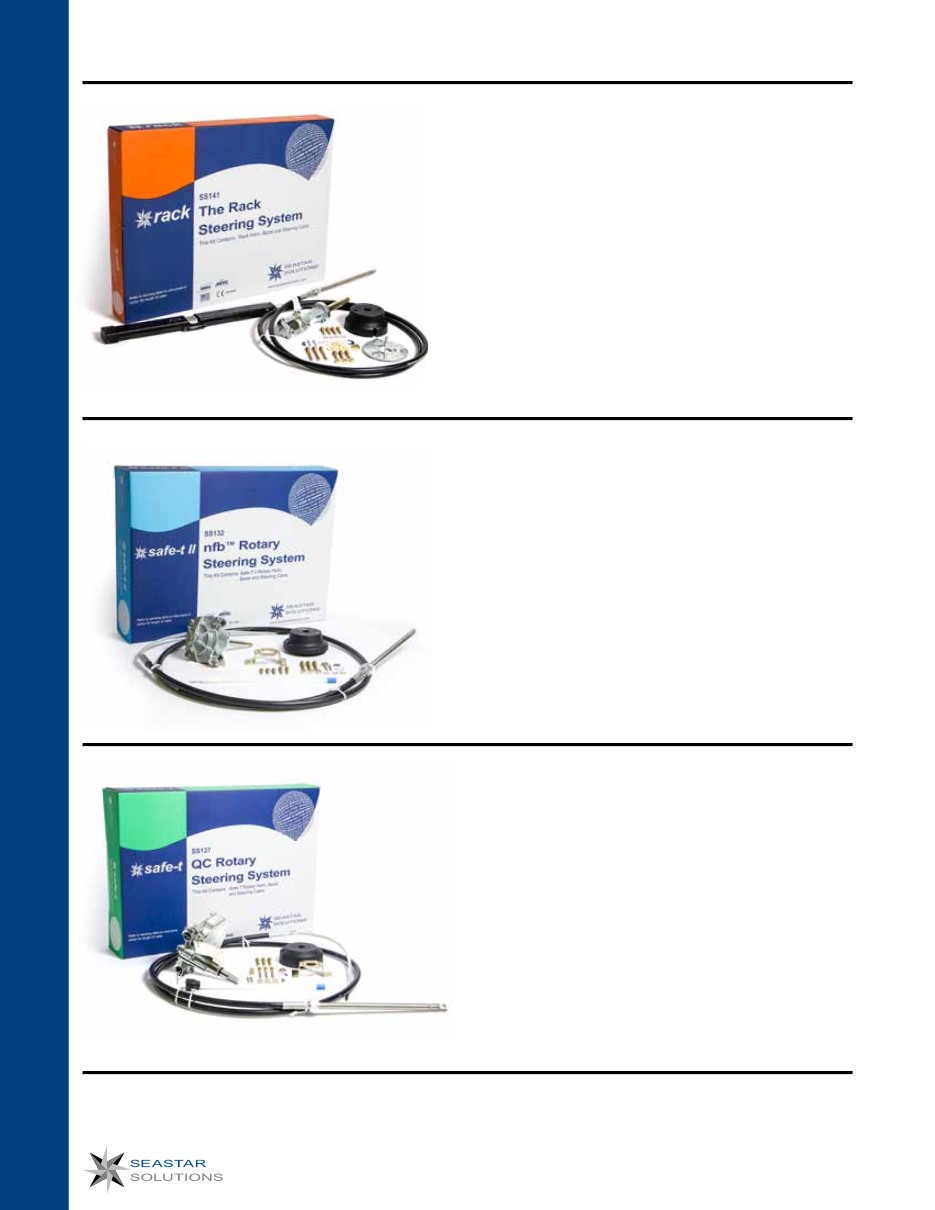

MECHANICAL STEERING KIT OVERVIEW (Continued):
BACK MOUNT RACK SS141xx
The kit contains the following:
1- SH5210P
Helm
1- SB39526P
90 Degree Bezel Kit
1- SSC134xx
Steering Cable
Hardware & Instruction sheets
Kit sizes:
8-23
feet (Single cable)
SSC154xx can be used as an upgrade replacement cable
(single cable systems only).
SSC124xx old style rack cables CANNOT be used with these systems.
APPLICATIONS:
Back Mount Rack Replaces 1984-date SeaStar Solutions “The Rack”
steering without dash modification. (Requires use of SSC134xx
Back Mount Rack cable.) For single station use only. Components
are available for dual cable systems, but we recommend No-
FeedBack steering for all dual cable steered, non-power-assisted
outboards and sterndrives.
4 steering
wheel turns
lock-to-lock
STEERING - Mechanical Kit Overview
SAFE-T QC® SS137xx (SINGLE)
The kit contains the following:
1- SH5094-1P
Helm
1- SB27484P
90 Degree Bezel Kit
1- SSC62xx
Steering Cable
Hardware & Instruction sheets
Kit sizes: 8-23
feet
SSC62xx can be used as a replacement cable.
APPLICATIONS:
Safe-T QC® replaces all SeaStar Solutions Safe-T helms made since
1968 with little or no dash modifications. Requires use of SSC62.
We recommend No FeedBack steering for all dual cable steered,
non-power-assisted outboards and sterndrives.
3 steering
wheel turns
lock-to-lock
NFB = No FeedBack, an exclusive SeaStar Solutions feature built into the helm to fight prop torque feedback.
Steering Wheel Turns Lock-to-lock = steering wheel revolutions from hard over port to hard over starboard.
NFB should not be used with autopilots or power assisted steering.
NFB™ SAFE-T II SS132xx
The kit contains the following:
1- SH5150P
No FeedBack Helm
1- SB27150P
90 Degree Bezel Kit
1- SSC62xx
Steering Cable
Hardware & Instruction sheets
Kit sizes:
10-20
feet
SSC62xx can be used as a replacement cable.
APPLICATIONS:
NFB Safe-T II single-cable systems are suitable for most single-
station boats with a single non-power-assisted outboard engine
up to V-4 and minimal engine flutter or steering instability. (NFB
Safe-T II is available in single cable configuration only).
3 steering
wheel turns
lock-to-lock
