152
®

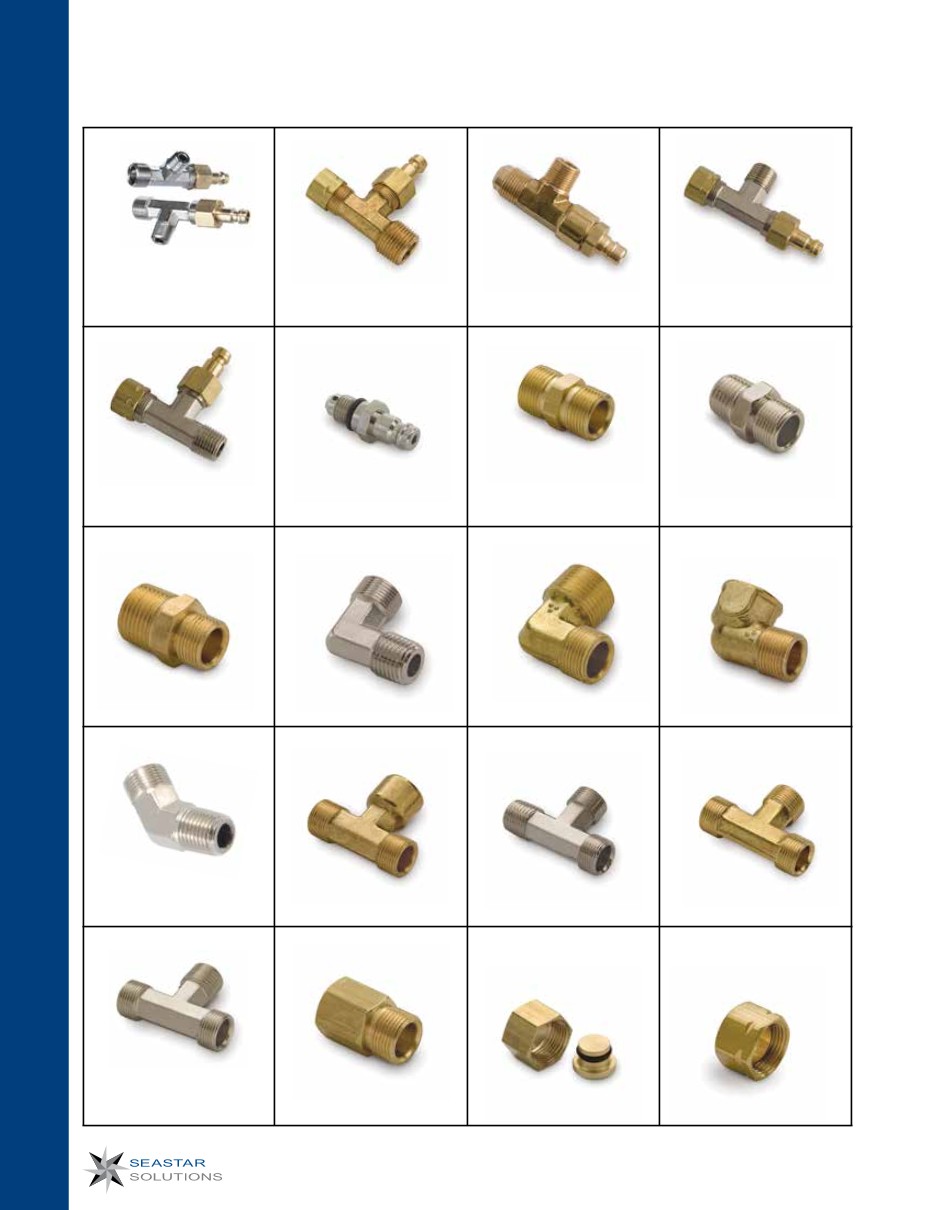

STEERING - Hydraulic Fittings
Vertical Bleeder Tee
Not for use with Baystar
NOT for use with -3 cylinders/helms
Bleed Nipple
1998 - Date Cylinders
Union Coupling Fitting
Straight Fitting
NOT for use with -3 cylinders/helms
Connector Fitting
Elbow Fitting
NOT for use with -3 cylinders/helms
Elbow Fitting
Street Elbow
45° Fitting
NOT for use with -3 cylinders/helms
Tee Fitting
Tee Fitting
NOT for use with -3 cylinders/helms
Tee Fitting
Tee Fitting
NOT for use with -3 cylinders/helms
Adapter Fitting
Cap Plug Nut
Tube Nut
Vertical Bleeder Tee
NOT for use with -3 cylinders/helms
HF4202
Horizontal Bleeder Tee
For Baystar Systems Only
All SeaStar Manual Hydraulic steering systems utilize the same style of fittings for all
applications. These are 3/8" compression fittings which utilize a 9/16"-24 extra fine thread.
2 per kit
2 per kit
2 per kit
Includes O-ring. For use with
Front Mount Cylinder ONLY.
3 per kit
3 per kit
2 per kit
2 per kit
3 per kit
2 per kit
3 per kit
2 per kit
3 per kit
3 per kit
3 per kit
3 per kit
2 per kit
3 per kit
3 per kit
3 per kit
6 per kit
For use with 3/8" Nylon
and/or 3/8" copper tubing
Bleed Tee (TM Cylinders)
Horizontal Bleeder Tee
Not for use with Baystar
NOT for use with -3 cylinders/helms
