Electrical Components(Mechanical Throttle & Shift) for Mercruiser (5.0l,350 Mag,mx 6.2l Mpi Sterndrive) Engine
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| #1 — 865480T — BRACKET, Harness Mounting/Lifting Eye (1 required per assembly) | ||
  |
|
865480T - Bracket [ More info ]
|
| #2 — 98261 — SCREW, (.375-16 x .750) (2 required per assembly) | ||
  |
|
10-98261 - Screw [ More info ]
|
| #3 — 866189T04 — ECM, Engine Control Module (1 required per assembly) — (5.0L MPI Alpha)(Standard Cooling) | ||
  |
866189T04 - ECM [ More info ] Unavailable |
|
  |
866189T05 - ECM [ More info ] Unavailable |
|
  |
|
866189T07 - ECM [ More info ] Unavailable |
| #3 — 866190T04 — ECM, Engine Control Module (1 required per assembly) — (5.0L MPI Alpha)(Closed Cooling) | ||
  |
|
866190T04 - 866190T04 - ECM Engine Contro [ More info ] Unavailable Replaced by -866190T05 |
  |
866190T05 - ECM [ More info ] Unavailable |
|
  |
|
866190T07 - ECM [ More info ] Unavailable |
| #3 — 866191T04 — ECM, Engine Control Module (1 required per assembly) — (5.0L MPI Bravo)(Standard Cooling) | ||
  |
866191T04 - ECM [ More info ] Unavailable |
|
  |
|
866191T05 - ECM [ More info ] Unavailable |
| #3 — 866192T04 — ECM, Engine Control Module (1 required per assembly) — (5.0L MPI Bravo)(Closed Cooling) | ||
  |
|
866192T04 - 866192T04 - ECM Engine Contro [ More info ] Unavailable Replaced by -866192T05 |
  |
|
866192T05 - ECM [ More info ] Unavailable |
| #3 — 866122T04 — ECM, Engine Control Module (1 required per assembly) — (350 Mag MPI Alpha)(Standard Cooling) | ||
  |
866122T04 - ECM [ More info ] Unavailable |
|
  |
|
866122T05 - ECM [ More info ] Unavailable |
| #3 — 866123T04 — ECM, Engine Control Module (1 required per assembly) — (350 Mag MPI Alpha)(Closed Cooling) | ||
  |
|
866123T04 - 866123T04 - ECM Engine Contro [ More info ] Unavailable Replaced by -866123T05 |
  |
|
866123T05 - ECM [ More info ] Unavailable |
| #3 — 866124T04 — ECM, Engine Control Module (1 required per assembly) — (350 Mag MPI Bravo)(Standard Cooling) | ||
  |
|
866124T04 - 866124T04 - ECM Engine Contro [ More info ] Unavailable Replaced by -866124T05 |
  |
|
866124T05 - ECM [ More info ] Unavailable |
| #3 — 866125T04 — ECM, Engine Control Module (1 required per assembly) — (350 Mag MPI Bravo)(Closed Cooling) | ||
  |
|
866125T04 - 866125T04 - ECM Engine Contro [ More info ] Unavailable Replaced by -866125T05 |
  |
|
866125T05 - ECM [ More info ] Unavailable |

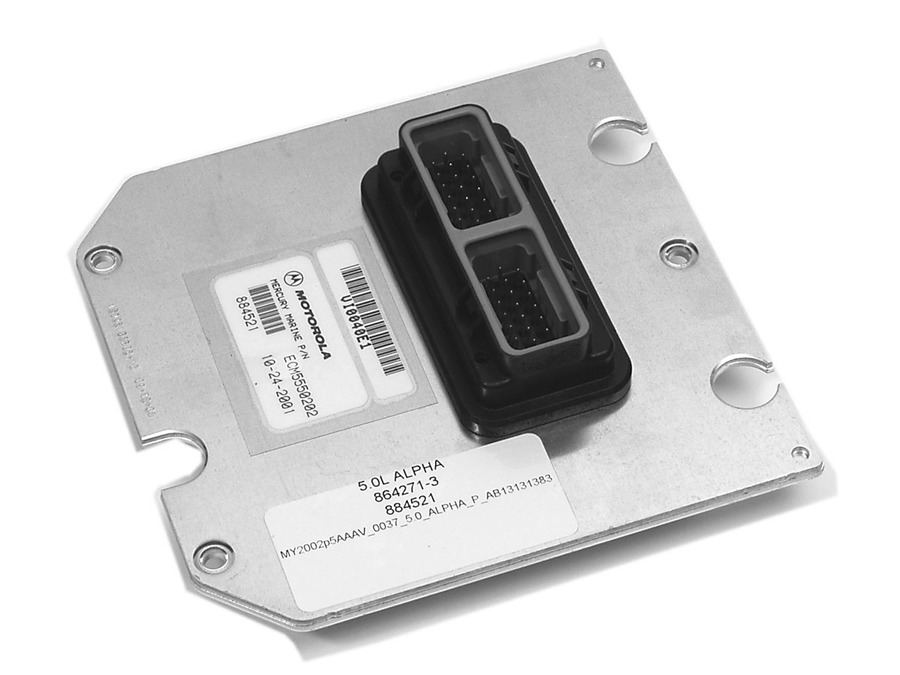

| #3 — 866129T04 — ECM, Engine Control Module (1 required per assembly) — (MX 6.2L MPI)(Standard Cooling) | ||
  |
|
866129T04 - 866129T04 - ECM Engine Contro [ More info ] Unavailable Replaced by -866129T05 |
  |
|
866129T05 - ECM [ More info ] Unavailable |
| #3 — 866130T04 — ECM, Engine Control Module (1 required per assembly) — (MX 6.2L MPI)(Closed Cooling) | ||
  |
866130T04 - ECM [ More info ] Unavailable |
|
  |
|
866130T05 - ECM [ More info ] Unavailable |
| #4 — 821300 25 — SCREW, (M6 x 25) (3 required per assembly) | ||
  |
|
10-821300 25 - Screw [ More info ]
|
| #5 — 65567 — WASHER, (.265 x .750 x .048) Stainless Steel (3 required per assembly) | ||
  |
|
12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ]
|
| #6 — 834985 — GROMMET (3 required per assembly) | ||
  |
|
25-834985 - Grommet [ More info ]
|
  |
|
25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ]
|
| #7 — 856954 — BUSHING (3 required per assembly) | ||
  |
|
23-856954 - Bushing [ More info ]
|
| #8 — 863424T — BRACKET, ECM (1 required per assembly) | ||
  |
|
863424T - Bracket [ More info ]
|
| #9 — 860008 — SCREW, (.250-20 x .625) Torx (3 required per assembly) | ||
  |
|
10-860008 - Bolt [ More info ]
|
| #10 — 866058T02 — HARNESS ASSEMBLY (1 required per assembly) — (Alpha) | ||
  |
|
84-866058T02 - Harness [ More info ]
|
| #10 — 866056T02 — HARNESS ASSEMBLY (1 required per assembly) — (Bravo) | ||
  |
|
84-866056T02 - Harness [ More info ]
|
| #11 — 865205 — CLIP, Relay Mounting (2 required per assembly) | ||
  |
|
86-865205 - Clip - Priced Individually [ More info ]
|
| #12 — 804352 — CLIP, Fuse Block Mounting (1 required per assembly) | ||
  |
|
54-804352 - Clip- Fuse Block [ More info ]
|
| #13 — 883562 — COVER, Fuse (1 required per assembly) | ||
  |
|
883562 - Fuse Block Cover [ More info ]
|
  |
|
831960 - Fuse Cover [ More info ]
|
| #14 — 882751 — RELAY (3 required per assembly) | ||
  |
882751 - Relay - Trim [ More info ] Unavailable |
|
  |
|
8M0207772 - RELAY-TRIM [ More info ]
|
  |
|
8M0219830 - RELAY-TRIM (8M0219830) [ More info ]
|
| #15 — 832969 15 — FUSE, Mini - Blue - 15 Ampere (2 required per assembly) | ||
  |
88-832969 15 - Fuse, Blue-15AMP [ More info ] Unavailable |
|
  |
|
88-832969T15 - Fuse -Blue-15AMP [ More info ]
|
| #15 — 832969 20 — FUSE, Mini - Yellow - 20 Ampere (3 required per assembly) | ||
  |
88-832969 20 - Fuse-Yellow-20AMP [ More info ] Unavailable |
|
  |
|
88-832969T20 - Fuse - Yellow - 20 Amp [ More info ]
|
| #16 — 865483T — BRACKET, Circuit Breaker and Relays (1 required per assembly) | ||
  |
|
865483T - Bracket [ More info ]
|
| #17 — 865827T — BREAKER, Circuit - 50 Ampere (1 required per assembly) | ||
  |
|
88-865827T - Circuit Breaker [ More info ] Unavailable |
| #18 — 826709106 — NUT, (#10-32) Stainless Steel (2 required per assembly) | ||
  |
|
11-826709106 - Nut, (#10-32) Stainless Steel [ More info ]
|
  |
|
11-8M0204718 - NUT [ More info ]
|
| #19 — 830861 — SCREW, (#8-32 x .625) (2 required per assembly) | ||
  |
|
10-830861 - Screw - Priced Individually [ More info ]
|
| #20 — 40136 6 — NUT, (M6) Stainless Steel (3 required per assembly) | ||
  |
|
11-40136 6 - Nut - Priced Individually [ More info ]
|
| #21 — 863439 — STUD (1 required per assembly) | ||
  |
|
16-863439 - Stud [ More info ]
|
| #22 — 865983T01 — HARNESS ASSEMBLY, Injectors (1 required per assembly) | ||
  |
|
84-865983T01 - Injector Harness [ More info ]
|
| #23 — 865677T02 — HARNESS ASSEMBLY, Transom (1 required per assembly) | ||
  |
|
84-865677T02 - Harness [ More info ]
|
| #24 — 888416T03 — HARNESS ASSEMBLY, Clean Power (1 required per assembly) | ||
  |
84-888416T03 - HARNES ASY-14 FT [ More info ] Unavailable |
|
  |
84-888416T04 - Harness Assembly [ More info ] Unavailable |
|
  |
|
848M0113732 - Harness, Clean Power [ More info ]
|
| #25 — 862646 — FUSE, Tan - 5 Ampere (1 required per assembly) | ||
  |
|
862646 - Fuse, Tan, 5 Amp [ More info ]
|
| #26 — 828054 — COVER, Fuse (1 required per assembly) | ||
  |
|
828054 - Fuse Cover [ More info ]
|
| #27 — 95084A10 — CABLE ASSEMBLY, (5.00 Inches) Red (1 required per assembly) — (Bravo) | ||
  |
84-95084A10 - Cable Assembly [ More info ] Unavailable |
|
  |
|
84-8M0207788 - CABLE ASSY [ More info ] Unavailable |
| #28 — 79091 — FUSE, 20 Ampere (1 required per assembly) — (Bravo) | ||
  |
|
88-79091 - Fuse - 20 Amp - Priced Individually [ More info ]
|
  |
|
888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ]
|
| #29 — 95084A 9 — CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip (1 required per assembly) — (Bravo) | ||
  |
|
84-95084A 9 - Cable Assembly [ More info ]
|
| #30 — 881879010 — SENSOR, Pressure (1 required per assembly) — (Steering Cooler) | ||
  |
881879010 - Sensor [ More info ] Unavailable |
|
  |
8M6000623 - Sensor [ More info ] Unavailable |
|
  |
|
71-8M0157742 - Water Pressure Sensor 50PSI [ More info ]
|
| #30 — 881879011 — SENSOR, Pressure (0 - 100 PSI), Pressure (1 required per assembly) — (Oil) | ||
  |
881879011 - Pressure Sensor [ More info ] Unavailable |
|
  |
|
881879T11 - Pressure Sensor [ More info ]
|
| #31 — 878187 — SENSOR ASSEMBLY, Knock (2 required per assembly) | ||
  |
878187 - Knock Sensor [ More info ] In Stock |
|
  |
|
8M6003194 - Knock Sensor [ More info ]
|
| #32 — 815425T — SENDER ASSEMBLY, Oil (1 required per assembly) | ||
  |
815425T - Sender [ More info ] Unavailable |
|
  |
|
8M0068784 - Sender Assembly [ More info ]
|
  |
|
18-5899 - Sender, 982650, 815425T [ More info ]
|
  |
|
75-24301 - Mercruiser and OMC Oil Pressure Sender [ More info ]
|
  |
|
75-24301 - Mercruiser and OMC Oil Pressure Sender [ More info ]
|
| #32 — 37293T — SENDER ASSEMBLY, Oil (1 required per assembly) — (Dual Station) | ||
  |
|
37293T - Oil Pressure Sender [ More info ]
|
| #33 — 816492A15 — ALARM KIT (1 required per assembly) | ||
  |
|
816492A15 - Alarm Kit [ More info ]
|
| #34 — 864337A 1 — CONNECTOR, Black, Jumper (1 required per assembly) — (Black Wire) | ||
  |
|
864337A 1 - Connector [ More info ]
|
| #35 — 889664 — NUT, (1.500-18) Black Nylon (1 required per assembly) | ||
  |
|
11-889664 - Nut, (1.500-18) Black Nylon [ More info ]
|
