Crankshaft, Pistons, & Connecting Rods for Mercury / Mariner (9.9 / 13.5 / 15 (4-Stroke) 323cc 8 / 9.9 / 15 Bodensee) Engine

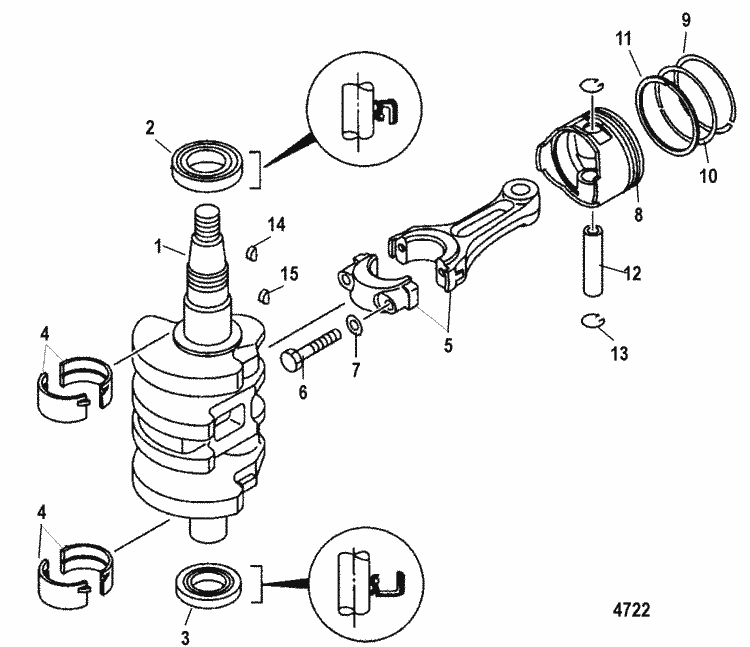

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| # — 802733A98 — POWERHEAD ASSEMBLY (1 required per assembly) — (Electric) | ||
  |
|
802733A98 - Powerhead, 4-stroke [ More info ] Unavailable |
| # — 879783A01 — POWERHEAD ASSEMBLY (1 required per assembly) — (Manual) SN# USA-0T178500/BEL-0P094500 & Up | ||
  |
|
879783A01 - Powerhead, 9.9 and 15HP 4 Stroke [ More info ] Unavailable |
| # — 835427A00 — GASKET SET, Powerhead (1 required per assembly) | ||
  |
|
27-835427A00 - Gasket Set [ More info ] Unavailable |
| #1 — 834957 — CRANKSHAFT (1 required per assembly) | ||
  |
|
400-834957 - CrankShaft, See Detail Page for Complete Powerhead [ More info ]
|
| #2 — 855680 — SEAL, Oil (1 required per assembly) | ||
  |
|
26-855680 - Seal [ More info ]
|
| #3 — 855681 — SEAL, Oil (1 required per assembly) | ||
  |
|
26-855681 - Seal [ More info ] Unavailable |
| #4 — 834960 — BEARING (AR required per assembly) — (Brown) | ||
  |
|
31-834960 - Ord 31-8M0054679 [ More info ] Unavailable |
| #4 — 834960 10 — BEARING (AR required per assembly) — (Black) | ||
  |
|
31-834960 10 - Bearing [ More info ]
|
| #4 — 834960 20 — BEARING (AR required per assembly) — (Blue) | ||
  |
|
31-834960 20 - Bearing [ More info ]
|
| #5 — 834961T 1 — CONNECTING ROD (2 required per assembly) | ||
  |
|
600-834961T 1 - Connecting Rod, See Detail Page for Complete Powerhead [ More info ] Unavailable |
| #6 — 850844 — BOLT, (M7 x 38) (4 required per assembly) | ||
  |
|
10-850844 - Bolt [ More info ]
|
| #7 — 855682 — WASHER (4 required per assembly) | ||
  |
|
12-855682 - Washer [ More info ] Unavailable |
| #8 — 834963T — PISTON (2 required per assembly) | ||
  |
|
700-834963T - Piston, See Detail Page for Complete Powerhead [ More info ]
|
| #9 — 850846 — RING, Piston (2 required per assembly) | ||
  |
|
39-850846 - Piston Ring [ More info ] Unavailable |
| #10 — 850847 — RING, Piston (2 required per assembly) | ||
  |
|
39-850847 - Piston Ring [ More info ]
|
| #11 — 825839 — RING, Oil (2 required per assembly) | ||
  |
|
39-825839 - Ring - Oil [ More info ] Unavailable |
| #12 — 825713 — PIN, Piston (2 required per assembly) | ||
  |
|
41-825713 - Piston Pin [ More info ]
|
| #13 — 82343M — CLIP (4 required per assembly) | ||
  |
|
53-82343M - Ring -snap - Priced Individually [ More info ]
|
| #14 — 825666 — KEY (1 required per assembly) — SN# USA-0T800999/BEL-0P267999 & Below | ||
  |
28-825666 - KEY [ More info ] Unavailable |
|
  |
|
28-81914M - Key - Priced Individually [ More info ]
|
  |
|
288M0057164 - Key , Priced Individually [ More info ]
|
| #14 — 81914M — KEY (1 required per assembly) — SN# USA-0T801000/BEL-0P268000 & Up | ||
| #15 — 84403M — KEY (1 required per assembly) | ||
  |
28-84403M - Key - Priced Individually [ More info ] Unavailable |
|
  |
|
288M0084803 - Key , Priced Individually [ More info ]
|
