Choke Kit for Mercury / Mariner (30 / 40 (2 Cylinder) 2-Stroke) Engine

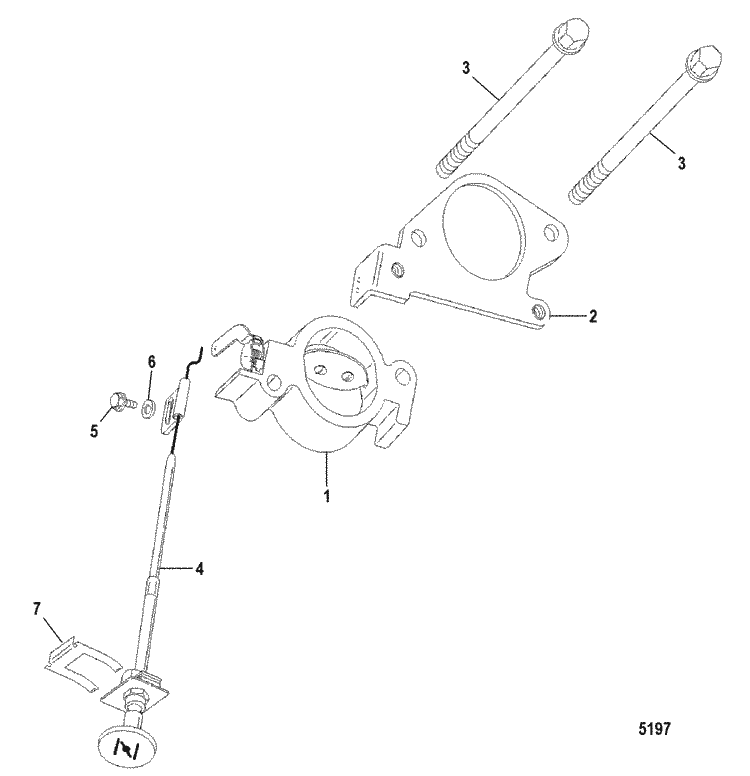

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

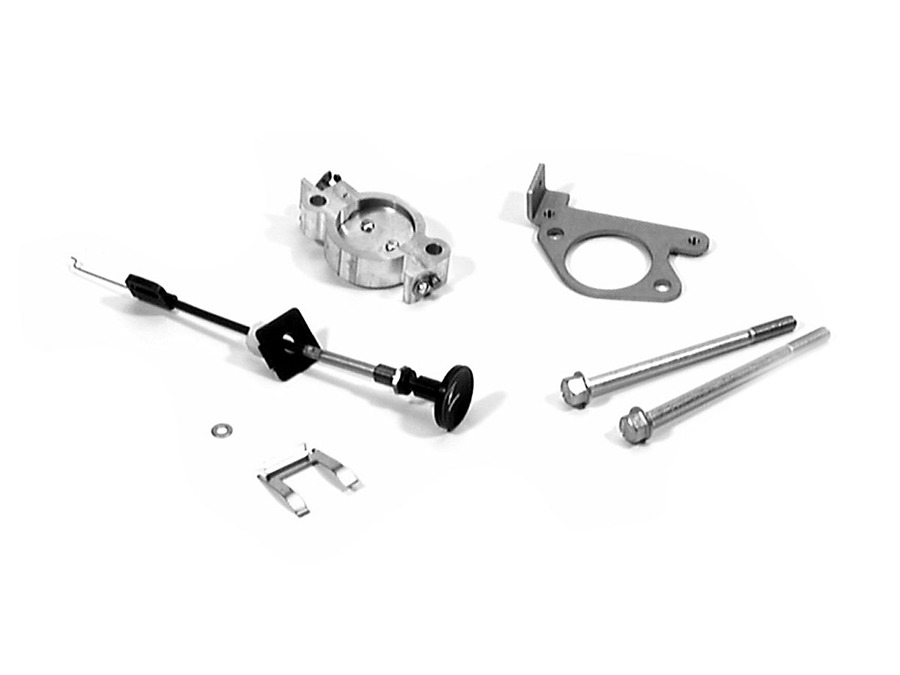

| # — 856116A 1 — CHOKE KIT (1 required per assembly) | ||
  |
|
856116A 1 - Choke Kit -manual [ More info ] Unavailable |
| #1 — 856116 — CHOKE (1 required per assembly) | ||
  |
|
856116 - Choke Assembly [ More info ] Unavailable |
| #2 — 856766 — PLATE (1 required per assembly) | ||
  |
|
856766 - Plate [ More info ] Unavailable |
| #3 — 824459120 — SCREW, (M8 x 120) (2 required per assembly) | ||
  |
|
10-824459120 - Screw [ More info ]
|
| #4 — 856155 — CHOKE CABLE (1 required per assembly) | ||
  |
|
856155 - Choke Cable [ More info ]
|
| #5 — 16122 — SCREW (10-16 X .625) (1 required per assembly) | ||
  |
10-16122 - Screw [ More info ] Unavailable |
|
  |
|
10-823042067 - Screw [ More info ]
|
| #6 — 89302 — WASHER, (.203 x .406 x .040) (1 required per assembly) | ||
  |
|
12-89302 - Washer (.203 X .406 X .040) [ More info ]
|
| #7 — 12044 1 — RETAINER, Switch (1 required per assembly) | ||
  |
12044 1 - Retainer [ More info ] Unavailable |
|
  |
|
8M0032846 - Brass Retainer [ More info ]
|
