Stator / Trigger(Electric Models) for Mercury / Mariner (30 / 40 (2 Cylinder) 2-Stroke) Engine

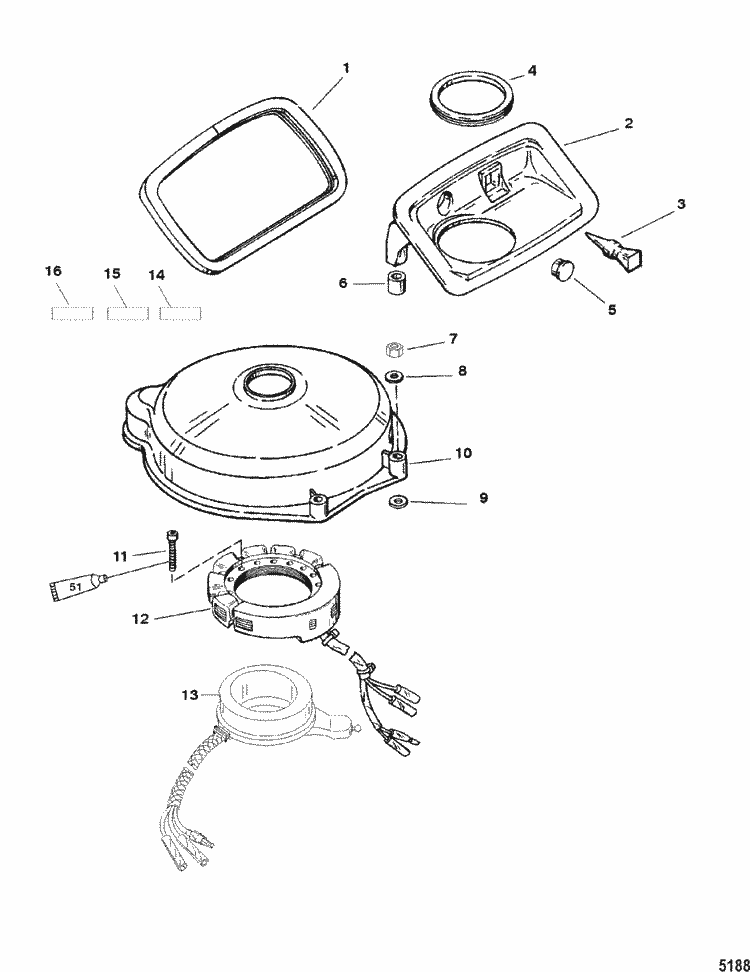

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| #1 — 824995 1 — SEAL (1 required per assembly) | ||
  |
824995 1 - SEAL-HANDLE REST [ More info ] Unavailable |
|
  |
|
8M0043416 - Seal - Handle Rest [ More info ]
|
| #2 — 821788A 1 — REST KIT, Oil Injection (1 required per assembly) | ||
  |
|
821788A 1 - Rest Kit [ More info ] Unavailable |
| #3 — 822513 1 — PLUG, Starter Handle (1 required per assembly) | ||
  |
19-822513 1 - PLUG [ More info ] Unavailable |
|
  |
|
19-822513002 - Plug [ More info ]
|
| #4 — 823771 — GROMMET, Oil Tank (1 required per assembly) | ||
  |
823771 - SEAL-OIL TANK [ More info ] Unavailable |
|
  |
|
823771001 - Oil Tank Seal [ More info ]
|
| #5 — 822464 — PLUG (1 required per assembly) | ||
  |
|
19-822464 - Plug [ More info ]
|
| #6 — 822392 — SPACER, Handle Rest (2 required per assembly) | ||
  |
|
23-822392 - Spacer - Handle Rest [ More info ]
|
| #7 — 816872 — WING NUT (4 required per assembly) | ||
  |
|
11-816872 - Wing Nut [ More info ]
|
| #8 — 69056 — WASHER, (.255 x .620 x .03) (4 required per assembly) | ||
  |
|
12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ]
|
| #9 — 49221 — WASHER, Neoprene (4 required per assembly) | ||
  |
12-49221 - Washer, (.187 X .500 X .062) Neoprene [ More info ] Unavailable |
|
  |
|
12-8M0204663 - Washer, Sold Individually [ More info ]
|
| #10 — 812777T 1 — COVER ASSEMBLY (1 required per assembly) | ||
  |
|
812777T 1 - Cover [ More info ]
|
| #11 — 40139 30 — SCREW, (M5 x 30) (5 required per assembly) | ||
  |
|
10-40139 30 - Screw - Priced Individually [ More info ]
|
| #12 — 832075A 4 — STATOR ASSEMBLY (1 required per assembly) | ||
  |
398-832075A 4 - Stator Assembly [ More info ] Unavailable |
|
  |
|
398-832075A21 - Stator Assembly [ More info ]
|
  |
|
18-5870-1 - Stator, 16 AMP , Mercury 398-832075A21 [ More info ]
|
  |
|
18-5870 - Stator, 398-832075A4 [ More info ]
|
| #13 — 853960T — TRIGGER (1 required per assembly) | ||
  |
|
853960T - Trigger [ More info ]
|
  |
|
18-99441 - Trigger, Mercury 2 Cylinder 853960T, 134-3960-2 [ More info ]
|
| #14 — 856985A 6 — DECAL, EPA Information (1 required per assembly) — (1999) | ||
  |
|
37-856985A 6 - Decal -epa, NLA [ More info ] Unavailable |
| #14 — 804664A00 — DECAL, EPA Information (1 required per assembly) — (2000) | ||
  |
|
37-804664A00 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #14 — 804664A01 — DECAL, EPA Information (1 required per assembly) — (2001) | ||
  |
|
37-804664A01 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #14 — 804664A02 — DECAL, EPA Information (1 required per assembly) — (2002) | ||
  |
|
37-804664A02 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #14 — 804664A03 — DECAL, EPA Information (1 required per assembly) — (2003) | ||
  |
|
37-804664A03 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #14 — 804664A04 — DECAL, EPA Information (1 required per assembly) — (2004) | ||
  |
|
37-804664A04 - REF OB SB 09-18,NLA [ More info ] Unavailable |
| #15 — NSS — NOT SOLD SEPARATE, Decal-Caution in Gear Idle (1 required per assembly) | ||
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
