Gear Housing(Propeller Shaft)(2.00:1 Gear Ratio) for Mercury / Mariner (30 / 40 (2 Cylinder) 2-Stroke) Engine

Start Over Different Model > Different Engine Section > Gear Housing(Propeller Shaft)(2.00:1 Gear Ratio)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

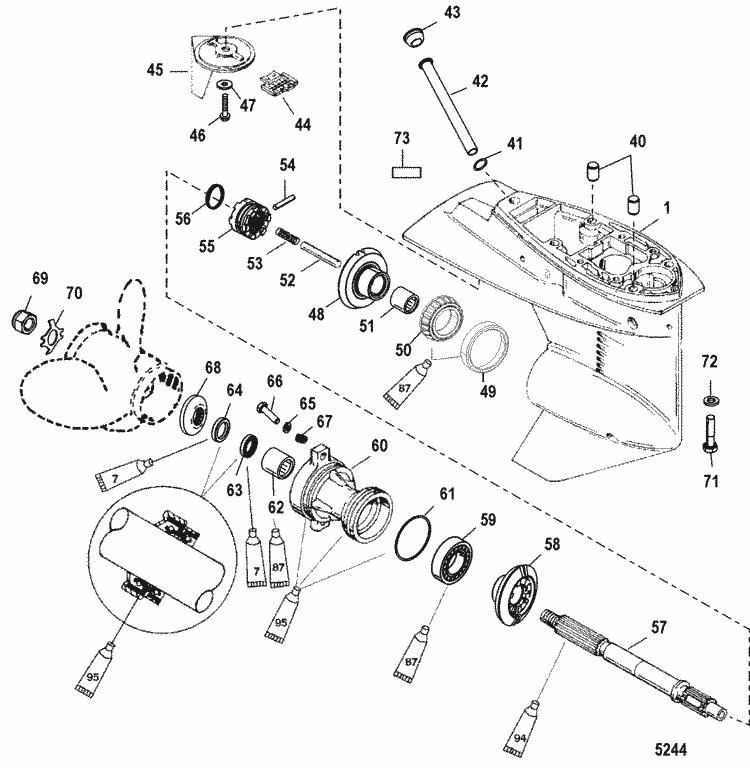

Engine Diagram

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

# — 821306A55 — GEAR HOUSING ASSEMBLY (1 required per assembly) — (SL-Export Only)
		1682821306A55 - Gear Housing, Complete - Blk [ More info ] Unavailable
# — 822420A94 — GASKET SET (1 required per assembly)
		27-822420A94 - Engine Overhaul Gasket Set [ More info ] $74.49 Available to Order: Shipping delay up to 10 days.
# — 821306T 6 — GEAR HOUSING ASSEMBLY (1 required per assembly) — (Long)
		1682-821306T 6 - Gear Housing Assembly [ More info ] Unavailable
# — 823547A 2 — SEAL KIT (1 required per assembly)
		823547A 2 - Gear Housing Seal Kit [ More info ] $112.38 5 In Stock.
# — 821306T 8 — GEAR HOUSING ASSEMBLY (1 required per assembly) — (Short)
		1682-821306T 8 - Gear Housing Assembly [ More info ] $3,007.15 Available to Order: Shipping delay up to 10 days.
# — 821306A10 — GEAR HOUSING ASSEMBLY (1 required per assembly) — (LL)
		1682-821306A10 - Gear Housing Assembly [ More info ] Unavailable
#1 — 821306T12 — GEAR HOUSING ASSEMBLY, Basic (1 required per assembly) — (Basic)
		1682-821306T12 - Gear Housing - Housing Only [ More info ] $1,457.49 1 In Stock.
#40 — 821327 — PIN, Dowel (2 required per assembly)
		17-821327 - Pin -Dowel [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#41 — 823942 — GASKET (1 required per assembly)
		27-823942 - Water Tube Gasket [ More info ] $1.80 $1.44 10+ In Stock.
#42 — 821828 — TUBE (1 required per assembly)
		32-821828 - TUBE-WATER [ More info ] Unavailable
		32-8M0026108 - Tube [ More info ] $24.29 Available to Order: Shipping delay up to 10 days.
#43 — 824928 — PLUG, Rubber (1 required per assembly)
		19-824928 - Plug [ More info ] Unavailable
		19-824928001 - Plug [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#44 — 821829 — SCREEN (1 required per assembly)
		821829 - Water Inlet Screen [ More info ] $12.79 4 In Stock.
#45 — 822157T 2 — TRIM TAB (1 required per assembly)
		822157T 2 - Trim Tab, Zinc [ More info ] $49.99 4 In Stock.
#46 — 824970 20 — SCREW, (M8 x 20) (1 required per assembly)
		10-824970 20 - Screw [ More info ] $3.79 10+ In Stock.
#47 — 72397 — WASHER (1 required per assembly)
		12-72397 - Washer [ More info ] $5.49 8 In Stock.
#48 — 821315T 1 — FORWARD GEAR ASSEMBLY, (26 Teeth) (1 required per assembly)
		43-821315T 1 - Forward Gear Assembly [ More info ] $375.00 Available to Order: Shipping delay up to 10 days.
#49 — 99328A 1 — BEARING ASSEMBLY, Roller (1 required per assembly)
		31-99328A 1 - Roller Bearing [ More info ] Unavailable
		31-8M0103470 - Bearing Assembly, Captive [ More info ] $45.99 In Stock
#50 — NSS — NOT SOLD SEPARATE, Cup (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#51 — 41326 — BEARING, Roller (1 required per assembly)
		31-41326 - Roller Bearing [ More info ] Unavailable
#52 — 821578 — FOLLOWER, Cam (1 required per assembly)
		821578 - Cam Follower [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#53 — 826199 1 — SPRING (1 required per assembly)
		24-826199 1 - Spring [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#54 — 85093 — PIN (1 required per assembly)
		17-85093 - Cross Pin, Clutch To Propeller Shaft [ More info ] Unavailable
		17-8M0020999 - Pin Cross [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#55 — 821314T — CLUTCH (1 required per assembly)
		52-821314T - Clutch [ More info ] $117.99 Available to Order: Shipping delay up to 10 days.
#56 — 38114 — SPRING (1 required per assembly)
		24-38114 - Spring, Retaining - Cross Pin [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#57 — 821577 2 — PROPELLER SHAFT (1 required per assembly)
		44-821577 2 - Prop Shaft NLA (order 448M0140441) [ More info ] Unavailable
#58 — 821312T 1 — REVERSE GEAR, (26 Teeth) (1 required per assembly)
		43-821312T 1 - Reverse Gear [ More info ] $405.49 Available to Order: Shipping delay up to 10 days.
#59 — 20839T — BEARING (1 required per assembly)
		30-20839T - Ball Bearing [ More info ] Unavailable
		18-1190 - Bearing, 30-20839T [ More info ] $66.26 2 In Stock.
		31-02116 - Ball Bearing EMP [ More info ] $66.99 $51.23 2 In Stock.
#60 — 19291A 3 — CARRIER ASSEMBLY, Bearing (1 required per assembly)
		19291A 3 - Carrier Assembly [ More info ] Unavailable
		18-2370 - Bearing Carrier, 19291A3 [ More info ] $240.51 10+ In Stock.
		8M0168900 - Bearing Carrier [ More info ] $311.49 Available to Order: Shipping delay up to 10 days.
#61 — 815460 — O-RING (1 required per assembly)
		25-815460 - O-ring, Bearing Carrier [ More info ] $2.99 5 In Stock.
#62 — 21700 — BEARING, Needle (1 required per assembly)
		31-21700 - Roller Bearing - Bearing Carrier [ More info ] $19.29 3 In Stock.
#63 — 69188 — OIL SEAL (1 required per assembly)
		26-69188 - Seal [ More info ] Unavailable
		18-2051 - Seal, 26-69188 [ More info ] $14.74 6 In Stock.
		26-8M0205511 - Prop Shaft Oil Seal, Outboard [ More info ] $19.29 4 In Stock.
#64 — 69189 — OIL SEAL (1 required per assembly)
		26-69189 - Seal [ More info ] Unavailable
		18-2052 - Seal, 26-69189 [ More info ] $17.04 10 In Stock.
		26-8M0203757 - Bearing Carrier Oil Seal, Outboard [ More info ] $19.55 10+ In Stock.
#65 — 855941 — WASHER (2 required per assembly)
		12-855941 - Washer, (.323 X .590 X .112) Stainless Steel [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#66 — 855940 30 — SCREW, (M8 x 30) (2 required per assembly)
		10-855940 30 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#67 — 822773 1 — INSERT, Threaded (2 required per assembly)
		822773 1 - Insert [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#68 — 73345A 1 — THRUST HUB (1 required per assembly)
		73345A 1 - Thrust Washer [ More info ] $18.21 $17.47 10+ In Stock.
#69 — 69578Q 1 — PROP NUT KIT (1 required per assembly)
		11-69578Q 1 - Prop Nut Kit - Priced Individually [ More info ] $17.12 2 In Stock.
		18-3704 - Nut, 11-69578 [ More info ] $21.79 1 In Stock.
		18-3702 - Nut Kit, 11-69578Q1 [ More info ] $15.99 $15.62 5 In Stock.
		11-69578T 1 - Prop Nut Kit - Priced Individually [ More info ] $16.72 Available to Order: Shipping delay up to 10 days.
#70 — 76281 — TAB WASHER (1 required per assembly)
		14-76281 - Tab Washer - Priced Individually [ More info ] $2.99 10+ In Stock.
		18-3204-9 - Washer, 14-76281, 10PK [ More info ] $17.49 $11.83 Available to Order: Shipping delay up to 10 days.
		14-76281Q - Tab Washer - Priced Individually [ More info ] $6.23 1 In Stock.
		14-8M0214942 - Prop Tab Washer, Priced Individually [ More info ] $6.09 10+ In Stock.
#71 — 40003 80 — SCREW, (M10 x 45), Short/Long (4 required per assembly)
		10-40003 80 - Screw [ More info ] $5.29 1 In Stock.
#72 — 856774 — WASHER, (.406 x .750 x .105) Stainless Steel (4 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
