Gear Housing(Driveshaft)(2.00:1 Gear Ratio) for Mercury / Mariner (30 / 40 (2 Cylinder) 2-Stroke) Engine

Start Over Different Model > Different Engine Section > Gear Housing(Driveshaft)(2.00:1 Gear Ratio)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine Diagram

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

# — 821306A10 — GEAR HOUSING ASSEMBLY (LL) (1 required per assembly) — (Model Version Length Designation: LL = 22.5 Inch)
		1682-821306A10 - Gear Housing Assembly [ More info ] Unavailable
# — 821306A55 — GEAR HOUSING ASSEMBLY (SL-Export Only) (1 required per assembly) — (Model Version Length Designation: SL = 17.5 Inch)
		1682821306A55 - Gear Housing, Complete - Blk [ More info ] Unavailable
# — 821354A 2 — WATER PUMP REPAIR KIT (1 required per assembly)
		821354A 2 - Water Pump Repair Kit [ More info ] $71.49 7 In Stock.
		18-4531 - Water Pump Repair Kit without Housing, 821354A2 [ More info ] $61.49 $61.29 In Stock
		46-46367 - Water Pump Kit Without Key 821354A2 [ More info ] $61.59 $47.10 3 In Stock.
# — 822420A94 — GASKET SET (1 required per assembly)
		27-822420A94 - Engine Overhaul Gasket Set [ More info ] $74.49 Available to Order: Shipping delay up to 10 days.
# — 821306T 6 — GEAR HOUSING ASSEMBLY (Long) (1 required per assembly) — (Model Version Length Designation: L = 20 Inch)
		1682-821306T 6 - Gear Housing Assembly [ More info ] Unavailable
# — 821306T 8 — GEAR HOUSING ASSEMBLY (Short) (1 required per assembly) — (Model Version Length Designation: S = 15 Inch)
		1682-821306T 8 - Gear Housing Assembly [ More info ] $3,007.15 Available to Order: Shipping delay up to 10 days.
# — 823547A 2 — SEAL KIT (1 required per assembly)
		823547A 2 - Gear Housing Seal Kit [ More info ] $112.38 5 In Stock.
#1 — 821306T12 — GEAR HOUSING ASSEMBLY, Basic (1 required per assembly) — (Basic)
		1682-821306T12 - Gear Housing - Housing Only [ More info ] $1,457.49 1 In Stock.
#2 — 818226A 1 — SEAL/PLATE KIT (1 required per assembly)
		818226A 1 - Plate Kit -Filler [ More info ] $7.19 2 In Stock.
#3 — NSS — NOT SOLD SEPARATE, Plate (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#4 — 79953Q 2 — SCREW KIT, (.375-16 x .250) Drain (.375-16 X .25) (1 required per assembly)
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 10+ In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 6 In Stock.
#5 — 19183 3 — SEAL (1 required per assembly)
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 6 In Stock.
#6 — 67892A 1 — FITTING KIT, Magnetic, Plug Fill/Drain (1 required per assembly)
		22-67892A 1 - Drain Plug [ More info ] Unavailable
		22-67892A05 - Drain Plug Kit [ More info ] Unavailable
		22-67892A06 - Drain Plug Kit [ More info ] Unavailable
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 10+ In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 2 In Stock.
#8 — 55910 — NUT, (.437-20) (1 required per assembly)
		11-55910 - Nut, Special (7/16-20) [ More info ] $5.49 $4.40 10+ In Stock.
#9 — 821326T 1 — PINION GEAR, (13 Teeth) (1 required per assembly)
		43-821326T 1 - Gear, Pinion - 13 Teeth [ More info ] $247.21 2 In Stock.
#10 — 821321A 2 — BEARING ASSEMBLY, Roller (1 required per assembly)
		31-821321A 2 - Bearing Kit [ More info ] $36.49 Available to Order: Shipping delay up to 10 days.
#12 — 824832 4 — SCREW, (M6 x 16) (4 required per assembly)
		10-824832 4 - Screw [ More info ] $1.80 5 In Stock.
#13 — 821351A 3 — WATER PUMP UPPER HOUSING ASSEMBLY (1 required per assembly)
		46-821351A 3 - Water Pump Upper Housing [ More info ] $113.99 In Stock
#14 — 823547 1 — SEAL, Water Tube (1 required per assembly) — (Short/Long)
		823547 1 - Seal - Water Tube [ More info ] $22.87 1 In Stock.
#15 — 86645 1 — WASHER (1 required per assembly)
#16 — 85119 — KEY (1 required per assembly)
		28-85119 - Key - Priced Individually [ More info ] Unavailable
		28-8M0032838 - Key - Priced Individually [ More info ] Unavailable
		288M0214993 - KEY Note: Priced Individually [ More info ] $3.69 10+ In Stock.
#18 — 822189 — GASKET, (Upper Water Pump) (1 required per assembly)
		27-822189 - Upper Water Pump Gasket [ More info ] $6.69 5 In Stock.
		18-0345 - Gasket [ More info ] $7.30 10+ In Stock.
#19 — 822217 — GASKET, (Lower Water Pump), Lower (1 required per assembly)
		27-822217 - Lower Water Pump Gasket [ More info ] Unavailable
		278M0214956 - Gasket [ More info ] $5.59 3 In Stock.
#20 — 821354 2 — FACE PLATE (1 required per assembly)
		821354 2 - Face Plate [ More info ] $19.59 Available to Order: Shipping delay up to 10 days.
#21 — 85089 10 — IMPELLER (1 required per assembly)
		47-85089 10 - Impeller [ More info ] Unavailable
		18-3057 - Impeller 47-85089-3 [ More info ] $27.55 10+ In Stock.
		47-8M0204712 - Impeller [ More info ] $39.49 7 In Stock.
		47-00125 - Water Pump Impeller Mercury & Force 8508910 18-50HP [ More info ] $20.99 $20.72 10+ In Stock.
#22 — 821307A 2 — BASE ASSEMBLY, Water Pump (1 required per assembly)
		46-821307A 2 - Water Pump Base Kit [ More info ] $87.49 Available to Order: Shipping delay up to 10 days.
#23 — 821309 — SEAL, Oil (1 required per assembly)
		26-821309 - Seal [ More info ] Unavailable
		268M0248704 - Oil Seal [ More info ] $8.79 3 In Stock.
#24 — 821310 — SEAL, Oil (1 required per assembly)
		26-821310 - Seal [ More info ] $7.49 2 In Stock.
#25 — 821308 — O-RING, (1.421 x .139) (1 required per assembly)
		25-821308 - O-ring, (1.421 X .139) [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#26 — 822466A 1 — DRIVESHAFT (1 required per assembly) — (Short)(Refer to Model Length)
		45-822466A 1 - Drive Shaft Assembly -15IN [ More info ] $761.49 Available to Order: Shipping delay up to 10 days.
#26 — 858399A 1 — DRIVESHAFT (1 required per assembly) — (SL-Export Only)(Refer to Model Length)
		45858399A1 - Drive Shaft [ More info ] $360.99 Available to Order: Shipping delay up to 10 days.

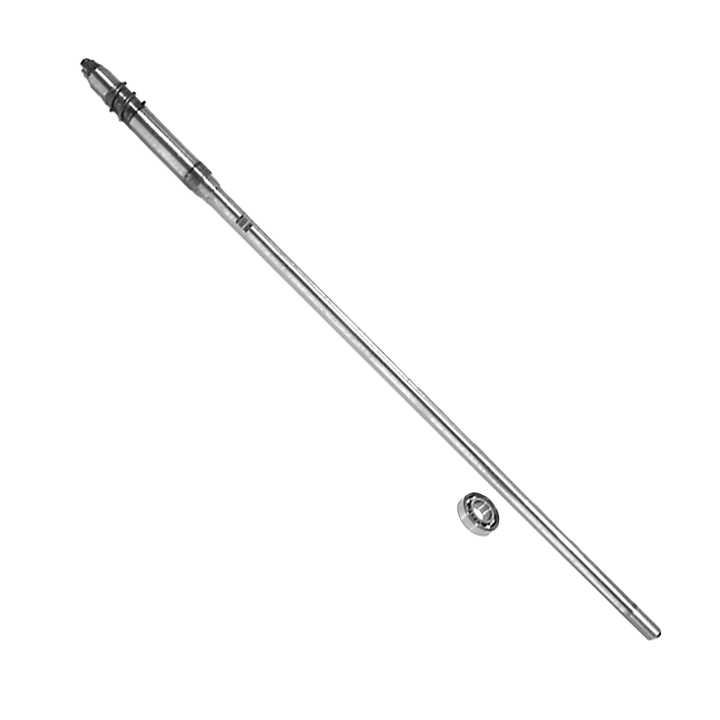

#26 — 822159A 1 — DRIVESHAFT (1 required per assembly) — (Long)(Refer to Model Length)
		45-822159A 1 - D SHAFT ASSY-LONG [ More info ] Unavailable
		45-822159T 1 - Drive Shaft Assembly - Long [ More info ] $850.49 Available to Order: Shipping delay up to 10 days.
#26 — 822552A 1 — DRIVESHAFT (1 required per assembly) — (LL)(Refer to Model Length)
		45-822552A 1 - Drive Shaft Assembly -22.5 [ More info ] $613.49 1 In Stock.
#27 — 821311 — BEARING, Ball (1 required per assembly)
		30-821311 - Ball Bearing [ More info ] $33.49 Available to Order: Shipping delay up to 10 days.
#28 — 823548T — CABLE TIE (1 required per assembly)
		823548T - Cable TIE-100 Pk [ More info ] Unavailable
#29 — 822158 — BOOT (1 required per assembly)
		822158 - Shift Shaft Boot [ More info ] $14.39 2 In Stock.
#30 — 821827 — RETAINER (1 required per assembly)
		821827 - Shift Shaft Retainer [ More info ] $19.29 2 In Stock.
#31 — 26855 — O-RING, (1.609 x .139) (1 required per assembly)
		25-26855 - O-ring, (1.609 X .139) [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
		18-7155 - O-Ring 25-26855 [ More info ] $9.95 $2.48 Available to Order: Shipping delay up to 10 days.
#32 — 85594 — O-RING, (.239 x .174) (1 required per assembly)
		25-85594 - O-ring, (.239 X .174) [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
		18-7100-9 - O-Ring (PK5) 301877 [ More info ] $12.74 Available to Order: Shipping delay up to 10 days.
#33 — 814803 — WASHER (1 required per assembly)
		12-814803 - Washer [ More info ] $5.19 4 In Stock.
#34 — 822453A 1 — SHIFT SHAFT (1 required per assembly) — (Short)(Refer to Model Length)
		822453A 1 - Shift Shaft, Short [ More info ] $168.99 Available to Order: Shipping delay up to 10 days.
#34 — 858401A 1 — SHIFT SHAFT (1 required per assembly) — (SL-Export Only)(Refer to Model Length)
		858401A1 - Shaft-SHIFT [ More info ] Unavailable
#34 — 821319A 1 — SHIFT SHAFT (1 required per assembly) — (Long)(Refer to Model Length)
		821319A 1 - Shaft Assembly - Long [ More info ] $187.49 Available to Order: Shipping delay up to 10 days.
#34 — 822543A 1 — SHIFT SHAFT (1 required per assembly) — (LL)(Refer to Model Length)
		822543A 1 - Shift Shaft -xl [ More info ] $140.99 Available to Order: Shipping delay up to 10 days.
#35 — 40021 2 — NUT, (M6) (1 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#36 — 29245 — WASHER, (.281 x .500 x .060) (1 required per assembly)
		12-29245 - Washer [ More info ] $0.89 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#37 — 85593 — PIN, (.078 x .437) (1 required per assembly)
		17-85593 - Pin (.078 x .437) [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#38 — 821316 1 — CAM, Shift (1 required per assembly)
		821316 1 - Shift Cam [ More info ] $120.49 Available to Order: Shipping delay up to 10 days.
#39 — 822369 — PIN, (.125 x .625) (1 required per assembly)
		17-822369 - Coil Pin [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
