X-Long Components for Mercury / Mariner (30 / 40 (2 Cylinder) 2-Stroke) Engine

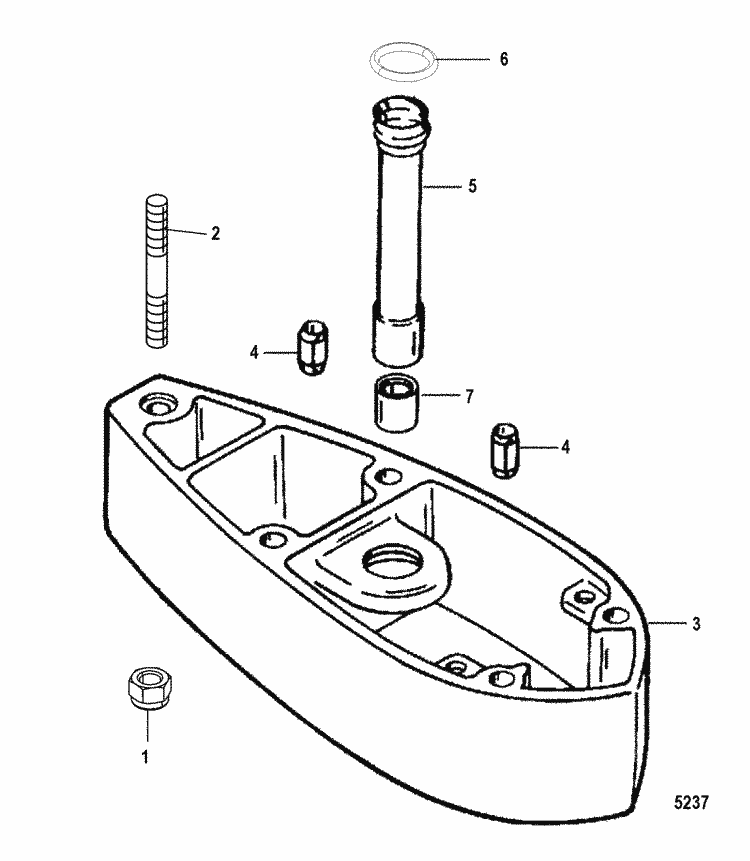

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| # — 823547A 2 — SEAL KIT (1 required per assembly) | ||
  |
|
823547A 2 - Gear Housing Seal Kit [ More info ]
|
| #1 — 40140 — NUT, (M10) (4 required per assembly) | ||
  |
|
11-40140 - Nut, (M10) [ More info ]
|
| #2 — 816866 5 — STUD, (M10 x 130) (2/4 required per assembly) | ||
  |
|
16-816866 5 - Stud [ More info ]
|
| #2 — 816866 1 — STUD, (M10 x 120) (4 required per assembly) | ||
  |
|
16-816866 1 - Stud [ More info ] Unavailable |
| #3 — 824072A 1 — SPACER, Driveshaft Housing Extension (1 required per assembly) | ||
  |
|
824072A 1 - Spacer - Driveshaft Housing Extension - Black [ More info ] Unavailable |
| #4 — 821327 — PIN, Dowel (2 required per assembly) | ||
  |
|
17-821327 - Pin -Dowel [ More info ]
|
| #5 — 824082A 1 — WATER TUBE ASSEMBLY, Extension (1 required per assembly) | ||
  |
|
824082A 1 - Extension Kit [ More info ] Unavailable |
| #6 — 21836 — O-RING, (.796 x .139) (1 required per assembly) | ||
  |
25-21836 - O-ring, (.796 X .139) [ More info ] Unavailable |
|
  |
|
18-7153-9 - (PK5) O-Ring 25-25439 [ More info ]
|
  |
|
25-8M0204645 - O RING [ More info ]
|
| #7 — 824084 — SEAL (1 required per assembly) | ||
  |
|
26-824084 - Seal [ More info ]
|
