Driveshaft Housing for Mercury / Mariner (30 / 40 (2 Cylinder) 2-Stroke) Engine

Start Over Different Model > Different Engine Section > Driveshaft Housing

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

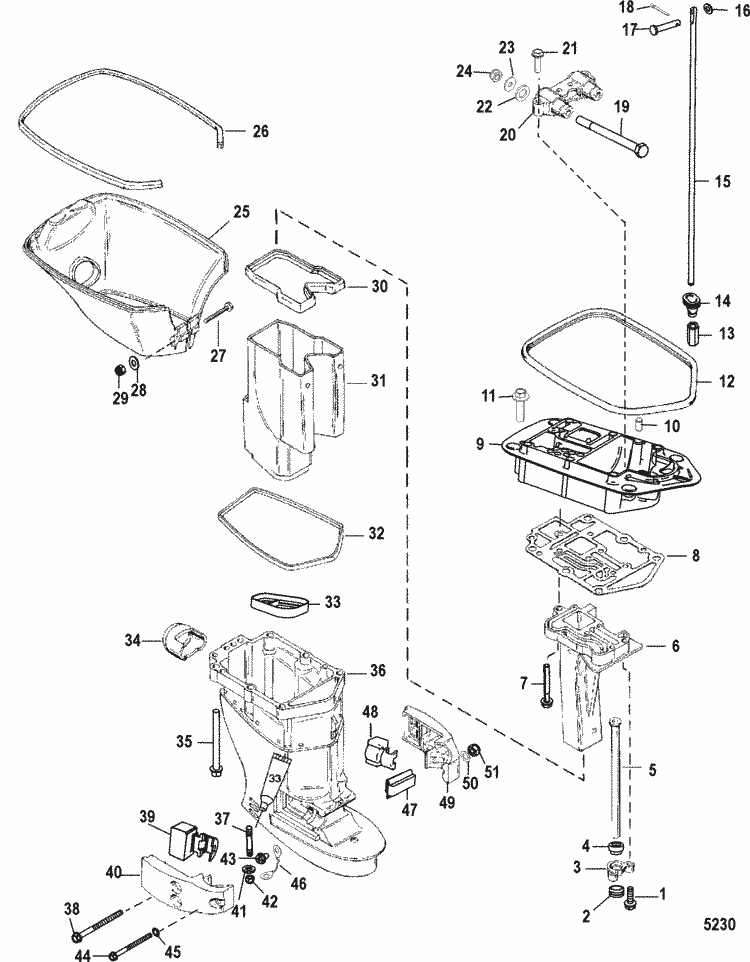

Engine Diagram

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

# — 822420A94 — GASKET SET (1 required per assembly)
		27-822420A94 - Engine Overhaul Gasket Set [ More info ] $74.49 Available to Order: Shipping delay up to 10 days.
#1 — 40011155 — SCREW, (M8 x 55) (2 required per assembly)
		10-40011155 - Screw [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#2 — 93221 — GROMMET (1 required per assembly)
		25-93221 - Grommet, Water Tube [ More info ] Unavailable
		25-93221002 - Water Tube Grommet [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#3 — 99019 — CLAMP (1 required per assembly)
		99019 - Water Tube Clamp [ More info ] $3.69 1 In Stock.
#4 — 42941 — SEAL, Water Tube (1 required per assembly)
		42941 - SEAL [ More info ] Unavailable
		42941001 - Water Tube Seal [ More info ] $5.19 3 In Stock.
#5 — 43014 4 — WATER TUBE (1 required per assembly) — (Short)
		32-43014 4 - TUBE-WATER [ More info ] Unavailable
		32-881200 2 - TUBE-WATER-SHORT [ More info ] Unavailable
		32-8M0042795 - Water Tube-Short [ More info ] $38.40 2 In Stock.
#5 — 881200 1 — WATER TUBE (1 required per assembly) — (Long)
		32-881200 1 - Water Tube - LG [ More info ] Unavailable
		32-8M0042794 - Water Tube -lg [ More info ] $39.49 Available to Order: Shipping delay up to 10 days.
#6 — 824697 1 — EXHAUST TUBE (1 required per assembly)
		824697 1 - TUBE-EXHAUST [ More info ] Unavailable
		8M0046061 - Exhaust Tube [ More info ] $104.49 Available to Order: Shipping delay up to 10 days.
#7 — 40011153 — SCREW, (M8 x 45) (3 required per assembly)
		10-40011153 - Screw [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#8 — 821446 — GASKET, Driveshaft Housing (1 required per assembly)
		27-821446 - Driveshaft Housing Gasket [ More info ] Unavailable
		27-8M0000821 - Gasket [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#9 — 821439T 4 — ADAPTOR PLATE (1 required per assembly)
		821439T 4 - Adaptor Plate Assembly [ More info ] $365.99 Available to Order: Shipping delay up to 10 days.
#10 — 23784 — PIN, Dowel (4 required per assembly)
		17-23784 - Pin, Dowel [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#11 — 40108 75 — SCREW, (M10 x .75) (1 required per assembly)
		10-40108 75 - Screw [ More info ] $15.19 Available to Order: Shipping delay up to 10 days.
#12 — 821510 — SEAL, Bottom Cowl (1 required per assembly)
		821510 - Seal - Bottom Cowl [ More info ] Unavailable
		8M0043148 - Seal -bottom Cowl [ More info ] $123.49 Available to Order: Shipping delay up to 10 days.
#13 — 822419 — COUPLER (1 required per assembly)
		822419 - Coupler-vertical [ More info ] $27.99 Available to Order: Shipping delay up to 10 days.
#14 — 822408 — GROMMET, Shift Shaft (1 required per assembly)
		25-822408 - Grommet, Shift Shaft [ More info ] Unavailable
		25-822408001 - Grommet, Shift Shaft [ More info ] $5.79 Available to Order: Shipping delay up to 10 days.
#15 — 822418 — SHIFT SHAFT, Upper (1 required per assembly)
		822418 - Shift Shaft [ More info ] Unavailable
		880042 - Shift Shaft [ More info ] Unavailable
#16 — 89302 — WASHER, (.203 x .406 x .040) (1 required per assembly)
		12-89302 - Washer (.203 X .406 X .040) [ More info ] $1.80 10+ In Stock.
#17 — 822417 — PIN (1 required per assembly)
		17-822417 - Pin, Shift Link [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#18 — 21071 — COTTER PIN (1 required per assembly)
		18-21071 - Cotter Pin - Priced Individually [ More info ] Unavailable
		18-21071 1 - Cotter Pin - Priced Individually [ More info ] $3.69 10+ In Stock.
#19 — 822396 — SCREW, (M12 x 1.75 x 162) (2 required per assembly)
		10-822396 - 8M0000520 [ More info ] Unavailable
		8M0000520 - Bolt [ More info ] $13.69 Available to Order: Shipping delay up to 10 days.
#20 — 821441 — MOUNT (1 required per assembly)
		821441 - 8M0021334 [ More info ] Unavailable
		881898 - MOUNT [ More info ] Unavailable
		8M0021334 - MOUNT [ More info ] Unavailable
		14008M4501487 - Upper Mount Assembly [ More info ] $137.99 Available to Order: Shipping delay up to 10 days.
#22 — 93416 1 — WASHER, Neoprene (2 required per assembly)
		12-93416 1 - WASHER [ More info ] Unavailable
		12-32834 - Washer, (.9375 X 1.750 X .172) [ More info ] $7.09 10+ In Stock.
#23 — 28421 — WASHER, (1.5 x 3.05 x 0.13) Stainless Steel (2 required per assembly)
		12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ] $2.99 10 In Stock.
		12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#24 — 859129 — NUT, (M12) (2 required per assembly)
		11-859129 - Nut, (M12) [ More info ] Unavailable
		11-896963 - Nut, (M12) [ More info ] $6.09 1 In Stock.
#25 — 821512A 4 — TRIM COVER (1 required per assembly)
		821512A 4 - Trim Cover - Black [ More info ] Unavailable
#26 — 822421 — BUMPER (1 required per assembly)
		822421 - BUMPER-UPPER TRIM [ More info ] Unavailable
		8M0043155 - Upper Trim Bumper [ More info ] $33.25 Available to Order: Shipping delay up to 10 days.
#27 — 826173 — SCREW, (M5 x .8 x 60) (1 required per assembly)
		10-826173 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#28 — 73288 — WASHER, (.220 x .500 x .030) (1 required per assembly)
		12-73288 - Washer, (.220 X .500 X .030) Stainless Steel [ More info ] $1.50 2 In Stock.
#29 — 40026 3 — NUT, (M5) (1 required per assembly)
		11-40026 3 - NUT,NLA [ More info ] Unavailable
#30 — 824942 3 — SEAL, Exhaust Bucket (1 required per assembly)
		824942 3 - Seal [ More info ] Unavailable
#31 — 824795 — EXHAUST BUCKET (1 required per assembly)
		824795 - 8M0036863 [ More info ] Unavailable
		8M0036863 - BUCKET- Exhaust [ More info ] $103.99 Available to Order: Shipping delay up to 10 days.
#32 — 827023 1 — BUMPER, Trim Cover (1 required per assembly)
		827023 1 - BUMPER [ More info ] Unavailable
		8M0036836 - BUMPER [ More info ] Unavailable
		8M0043170 - Bumper [ More info ] $6.89 Available to Order: Shipping delay up to 10 days.
#33 — 822395 — SEAL, Exhaust Tube (1 required per assembly)
		822395 - SEAL-EXHAUST TUBE [ More info ] Unavailable
		822395001 - Exhaust Tube Seal [ More info ] $13.39 Available to Order: Shipping delay up to 10 days.
#34 — 822422 — SEAL, Idle Relief (1 required per assembly)
		822422 - Idle Relief Seal [ More info ] Unavailable
		822422001 - Idle Relief Seal [ More info ] $21.09 Available to Order: Shipping delay up to 10 days.
#35 — 817430110 — SCREW, (M10 x 110) (6 required per assembly)
		10-817430110 - Screw [ More info ] $3.79 6 In Stock.
#36 — 821841T 7 — DRIVESHAFT HOUSING (1 required per assembly) — (Short)
		3525-821841T 7 - Drive Shaft Housing - Black [ More info ] $795.49 Available to Order: Shipping delay up to 10 days.
#36 — 821447T10 — DRIVESHAFT HOUSING (1 required per assembly) — (Long)
		3531-821447T10 - Drive Shaft Housing - Black [ More info ] $790.99 Available to Order: Shipping delay up to 10 days.
#37 — 823984 — STUD, (M10 x 50) (1 required per assembly) — (Short/Long)
		16-823984 - Stud [ More info ] $32.79 $31.44 4 In Stock.
#37 — 824083 — STUD, (M10 x 114) (1 required per assembly) — (LL)
		16-824083 - Stud [ More info ] $14.49 1 In Stock.
#38 — 824459120 — SCREW, (M8 x 120) (2 required per assembly)
		10-824459120 - Screw [ More info ] $13.69 Available to Order: Shipping delay up to 10 days.
#39 — 821781 2 — MOUNT (1 required per assembly)
		821781 2 - MOUNT Note: Priced Individually [ More info ] Unavailable
		821781003 - Mount - Priced Individually [ More info ] $15.39 Available to Order: Shipping delay up to 10 days.
#40 — 821780T 1 — COVER, Mount (1 required per assembly)
		821780T 1 - Cover [ More info ] Unavailable
		821780T 5 - Cover [ More info ] $59.99 Available to Order: Shipping delay up to 10 days.
#41 — 856774 — WASHER, (.406 x .750 x .105) Stainless Steel (1 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#42 — 40140 — NUT, (M10) (1 required per assembly)
		11-40140 - Nut, (M10) [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#43 — 878607 — SCREW, (#10-16 x .375) (2 required per assembly)
		10-878607 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#44 — 824459 65 — SCREW, (M8 x 65) (1 required per assembly)
		10-824459 65 - Screw [ More info ] $8.69 Available to Order: Shipping delay up to 10 days.
#45 — 72521 — LOCKWASHER, Internal Tooth (1 required per assembly)
		13-72521 - LockWasher [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#46 — 88238A11 — CABLE ASSEMBLY (1 required per assembly)
		88238A11 - Cable Assembly [ More info ] $11.79 Available to Order: Shipping delay up to 10 days.
#47 — 821782 1 — BUMPER, Front (1 required per assembly)
		821782 1 - BUMPER-FRONT [ More info ] Unavailable
		821782002 - Front Bumper [ More info ] $9.79 Available to Order: Shipping delay up to 10 days.
#50 — 36001 — WASHER (3 required per assembly)
		12-36001 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
		18-4270 - Washer 12-36001 [ More info ] $1.25 $0.91 2 In Stock.
#51 — 40137 8 — NUT, (M8) (3 required per assembly)
		11-40137 8 - Nut [ More info ] $10.39 Available to Order: Shipping delay up to 10 days.
