Clamp Bracket for Mercury / Mariner (30 / 40 (2 Cylinder) 2-Stroke) Engine

Start Over Different Model > Different Engine Section > Clamp Bracket

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

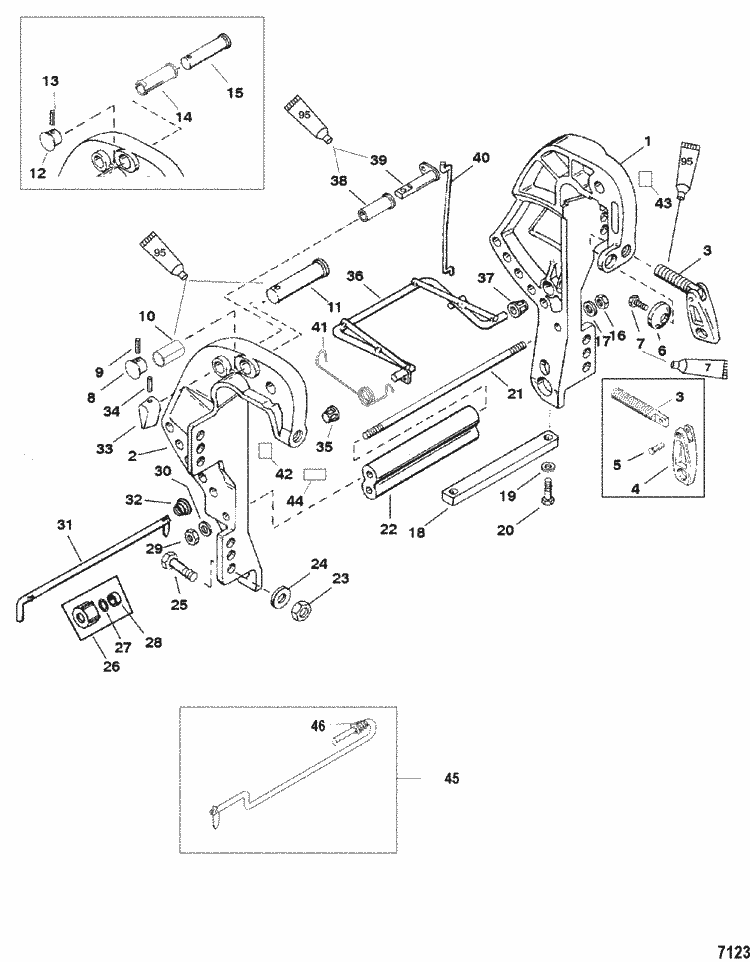

Engine Diagram

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

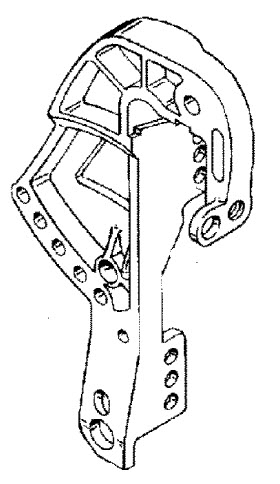

#1 — 821773A 3 — CLAMP BRACKET (1 required per assembly) — (Port Short)(1 Lower MTG. Hole)
		3411-821773A 3 - Clamp Bracket [ More info ] Unavailable
#1 — 821773T 1 — CLAMP BRACKET (1 required per assembly) — (Port Long)(3 Lower MTG. Holes)
		3411-821773T 1 - Clamp Bracket [ More info ] $384.99 Available to Order: Shipping delay up to 10 days.

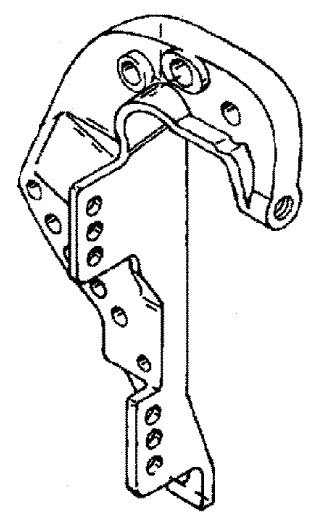

#2 — 821774T 6 — CLAMP BRACKET (1 required per assembly) — (Starboard Short)
		3412-821774T 6 - Clamp Bracket [ More info ] Unavailable
#2 — 821774T 8 — CLAMP BRACKET (1 required per assembly) — (Starboard Long)
		3412-821774T 8 - Clamp Bracket [ More info ] $391.49 Available to Order: Shipping delay up to 10 days.
#3 — 818883A 1 — THUMB SCREW ASSEMBLY (2 required per assembly) — (Manual)
		10-818883A 1 - Thumb Screw Assembly, New Takeoff [ More info ] $130.99 Available to Order: Shipping delay up to 10 days.
#4 — NSS — NOT SOLD SEPARATE, Handle-Manual (2 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#6 — 818884 — WASHER (2 required per assembly) — (Manual)
		12-818884 - Washer [ More info ] $13.79 $11.04 2 In Stock.
#7 — 76804 2 — SCREW, Hex Shoulder (2 required per assembly) — (Manual)
		10-76804 2 - Screw [ More info ] $3.49 1 In Stock.
#8 — 822401 1 — CAP (1 required per assembly) — (O.D. of Ref. # 11 is .75 & Ref. # 10 Is Not Flanged)
		822401 1 - Cap - Tilt Stop Pin [ More info ] $5.49 $1.10 10+ In Stock.
#9 — 25810 — PIN (1 required per assembly) — (O.D. of Ref. # 11 is .75 & Ref. # 10 Is Not Flanged)
		17-25810 - Pin -roll - Priced Individually [ More info ] $5.79 $1.17 10+ In Stock.
#10 — 86637 — BEARING (1 required per assembly) — (O.D. of Ref. # 11 is .75 & Ref. # 10 Is Not Flanged)
		23-86637 - Bearing - Trim Shaft [ More info ] $40.49 Available to Order: Shipping delay up to 10 days.
#11 — 822400 2 — PIN (1 required per assembly) — (O.D. of Ref. # 11 is .75 & Ref. # 10 Is Not Flanged)
		17-822400 2 - Tilt Lock Pin [ More info ] $42.99 $10.29 10+ In Stock.
#12 — 822401 — CAP (1 required per assembly) — (O.D. Of Ref. # 15 is .56 & Ref. # 14 Is Flanged)
		822401 - Tilt Stop Pin [ More info ] Unavailable
#13 — 25319 — PIN, (.125 x 0.75 Inches) (1 required per assembly) — (O.D. Of Ref. # 15 is .56 & Ref. # 14 Is Flanged)
		17-25319 - Pin, (.125 X 0.75 Inches) [ More info ] $5.09 10+ In Stock.
#14 — 823589 — BUSHING (1 required per assembly) — (O.D. Of Ref. # 15 is .56 & Ref. # 14 Is Flanged)
		23-823589 - Bushing, NLA [ More info ] $14.48 $12.26 10 In Stock.
#15 — 822400 1 — PIN, Tilt Stop (1 required per assembly) — (O.D. Of Ref. # 15 is .56 & Ref. # 14 Is Flanged
		17-822400 1 - Tilt Lock Pin, NLA [ More info ] $20.00 $16.94 10+ In Stock.
#16 — 40140 — NUT, (M10) (1 required per assembly)
		11-40140 - Nut, (M10) [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#17 — 40023 19 — WASHER (1 required per assembly)
		12-40023 19 - Washer (M10) [ More info ] $3.19 7 In Stock.
#18 — 825271 — ANODE (1 required per assembly)
		825271 - Anode [ More info ] Unavailable
		97-825271 1 - Anode, Aluminum [ More info ] $19.79 10+ In Stock.
#19 — 29245 — WASHER, (.281 x .500 x .060) (2 required per assembly)
		12-29245 - Washer [ More info ] $0.89 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#20 — 40003 30 — SCREW, (M6 x 25) (2 required per assembly)
		10-40003 30 - Screw - Priced Individually [ More info ] $2.77 10+ In Stock.
#21 — 823656 — STUD, (M10 x 277) (1 required per assembly)
		16-823656 - Stud [ More info ] Unavailable
		16-8M0034459 - Stud [ More info ] $26.59 Available to Order: Shipping delay up to 10 days.
#22 — 824952 — SPACER (1 required per assembly)
		23-824952 - Spacer [ More info ] $40.49 Available to Order: Shipping delay up to 10 days.
#23 — 826711 17 — NUT, (.500-20) (4 required per assembly) — (Long)
		11-826711 17 - Nut, (.500-20) [ More info ] $8.99 10+ In Stock.
#23 — 40137 10 — NUT, (M10) (M10 x 1.5) (2 required per assembly) — (Short-Bottom)
		11-40137 10 - Nut, (M10 X 1.5) [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#24 — 28421 — WASHER, (1.5 x 3.05 x 0.13) Stainless Steel (4 required per assembly) — (Long)
		12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ] $2.99 10 In Stock.
		12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#25 — 814259 — SCREW, (.500-20 x 4.00) (4 required per assembly) — (Long)
		10-814259 - Screw [ More info ] $19.55 3 In Stock.
#25 — 826110 — SCREW (2 required per assembly) — (Short-Bottom)
		10-826110 - Screw [ More info ] $5.69 Available to Order: Shipping delay up to 10 days.
#26 — 19624A 1 — SEAL KIT (1 required per assembly)
		19624A 1 - Seal Kit [ More info ] $11.51 2 In Stock.
#27 — 29619 — O-RING, (.583 x .103) (1 required per assembly)
		25-29619 - O-ring, (.583 X .103) [ More info ] $2.69 10+ In Stock.
#28 — 78861 — SPACER (1 required per assembly)
		23-78861 - Spacer [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#31 — 821457A 1 — TILT LOCK PIN (1 required per assembly)
		17-821457A 1 - Tilt Lock Pin [ More info ] Unavailable
		17-8M0026103 - Tilt Lock Pin [ More info ] $65.53 1 In Stock.
#32 — 821461 — SPRING (1 required per assembly)
		24-821461 - Spring, Tilt Lock Pin (Manual Tilt Models) [ More info ] $1.80 2 In Stock.
#33 — 822409 — LEVER, Shallow Water Drive (1 required per assembly)
		822409 - Lever [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.

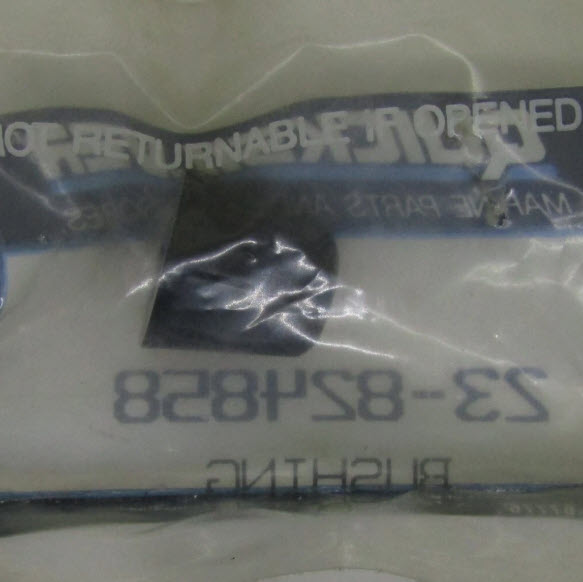

#35 — 824858 — BUSHING, PLASTIC (1 required per assembly)
		23-824858 - Bushing [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#36 — 878580 — ROD, Plastic, Shallow Water Drive (1 required per assembly)
		878580 - Rod Assembly [ More info ] $115.99 Available to Order: Shipping delay up to 10 days.
#38 — 823812 — BUSHING (1 required per assembly)
		23-823812 - Bushing [ More info ] $10.89 Available to Order: Shipping delay up to 10 days.
#39 — 822411 — ARM (1 required per assembly)
		822411 - Arm [ More info ] $57.49 Available to Order: Shipping delay up to 10 days.
#40 — 822412 2 — LINK ROD (1 required per assembly)
		822412 2 - LINK ROD [ More info ] Unavailable
		878563 - Link Rod [ More info ] $30.39 Available to Order: Shipping delay up to 10 days.

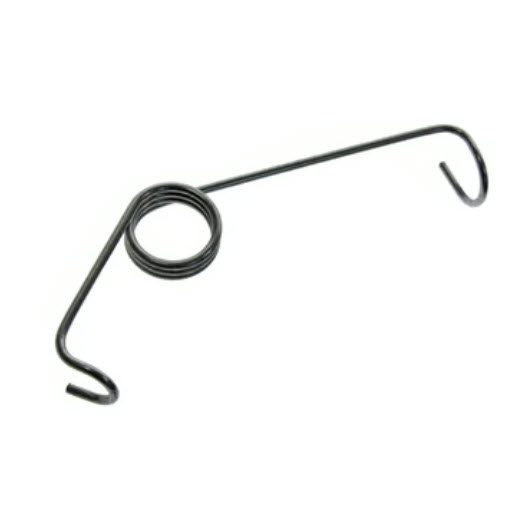

#41 — 832085A 1 — SPRING (1 required per assembly)
		24-832085A 1 - Spring Kit [ More info ] $40.99 Available to Order: Shipping delay up to 10 days.
#42 — 830253 — DECAL, Tilt Lock (1 required per assembly)
		37-830253 - Decal - Tilt/Lock [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#45 — 853923A 1 — PIN (1 required per assembly) — (40 Seapro)
		17-853923A 1 - Pin, Tilt Lock [ More info ] Unavailable
