Swivel Tube for Mercury / Mariner (30 / 40 (2 Cylinder) 2-Stroke) Engine

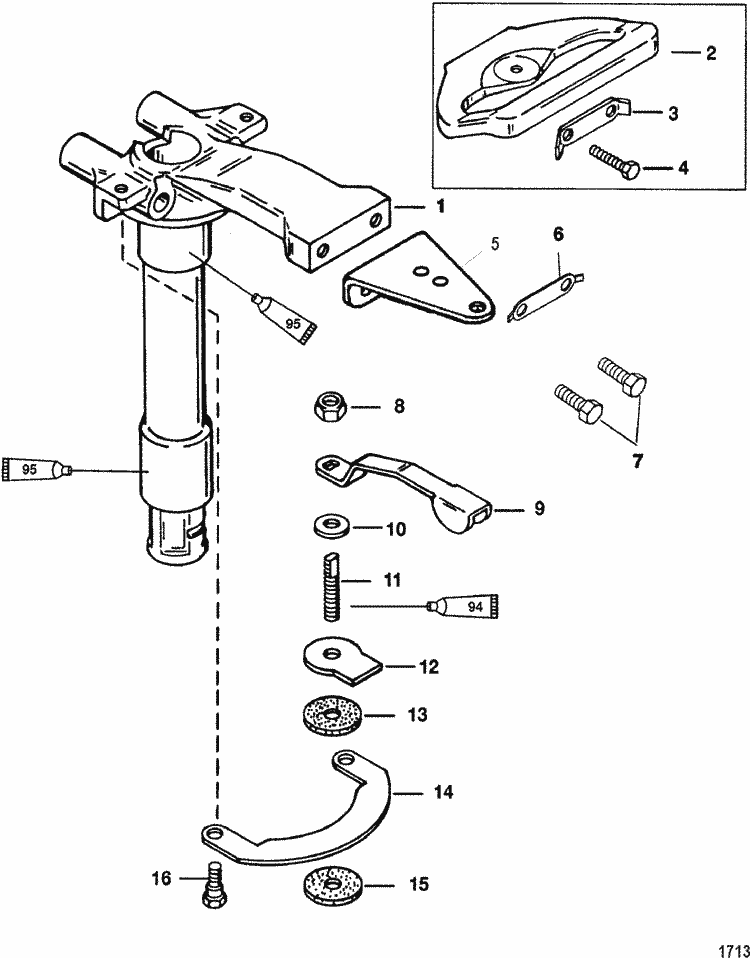

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| #1 — 821769T 1 — SWIVEL TUBE HEAD, Black (1 required per assembly) | ||
  |
|
821769T 1 - Swivel Head - Black [ More info ]
|
| #1 — 821769T 2 — SWIVEL TUBE HEAD, Gray (1 required per assembly) | ||
  |
|
821769T 2 - Ord 821769T 1, NLA [ More info ] Unavailable |
| #2 — 822465F 1 — HANDLE, Carrying (1 required per assembly) — (Design I) | ||
  |
|
822465F 1 - HANDLE-CARRY-BLK,NLA [ More info ] Unavailable |
| #3 — 43589 — TAB WASHER (2 required per assembly) — (Design I) | ||
  |
|
14-43589 - Tab Washer, NLA [ More info ]
|
| #4 — 824848F45 — SCREW, (M10 x 45) (2 required per assembly) — (Design I) | ||
  |
|
10-824848F45 - SCREW,NLA [ More info ] Unavailable |
| #5 — 816667A 2 — STEERING BRACKET (1 required per assembly) — (Design II) | ||
  |
|
816667A 2 - Steering Bracket Kit [ More info ]
|
| #6 — 816669F 1 — TAB WASHER (1 required per assembly) — (Design II) | ||
  |
14-816669F 1 - Tab Washer [ More info ] Unavailable |
|
  |
|
14-8M0009820 - Tab Washer [ More info ]
|
| #7 — 40003 77 — SCREW, (M10 x 30) (2 required per assembly) — (Design II) | ||
  |
|
10-40003 77 - Screw [ More info ] Unavailable |
| #8 — 826709113 — NUT, (.375-24) (1 required per assembly) | ||
  |
11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable |
|
  |
11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable |
|
  |
|
118M0204726 - NUT-BRASS Note: Priced Individually [ More info ]
|
| #9 — 823792 — LEVER, Co-Pilot (1 required per assembly) | ||
  |
|
823792 - Co Pilot Lever [ More info ]
|
| #10 — 29330 — WASHER (1 required per assembly) | ||
  |
|
12-29330 - Washer, Nylon [ More info ]
|
| #11 — 821961 — ROD, Threaded (1 required per assembly) | ||
  |
|
821961 - Threaded Rod [ More info ]
|
| #12 — 821957 — BRAKE PLATE (1 required per assembly) | ||
  |
|
821957 - Brake Plate [ More info ]
|
| #13 — 816562 1 — DISC (1 required per assembly) | ||
  |
|
816562 1 - Disc - Brake [ More info ]
|
| #14 — 823791 — PLATE, Swivel Head (1 required per assembly) | ||
  |
|
823791 - Plate -Swivel Head [ More info ]
|
  |
|
8M0007471 - Swivel Head Plate [ More info ]
|
| #16 — 76804 2 — SCREW, Hex Shoulder (2 required per assembly) | ||
  |
|
10-76804 2 - Screw [ More info ]
|
