Heater Manifold for Mercury / Mariner (30 / 40 (2 Cylinder) 2-Stroke) Engine

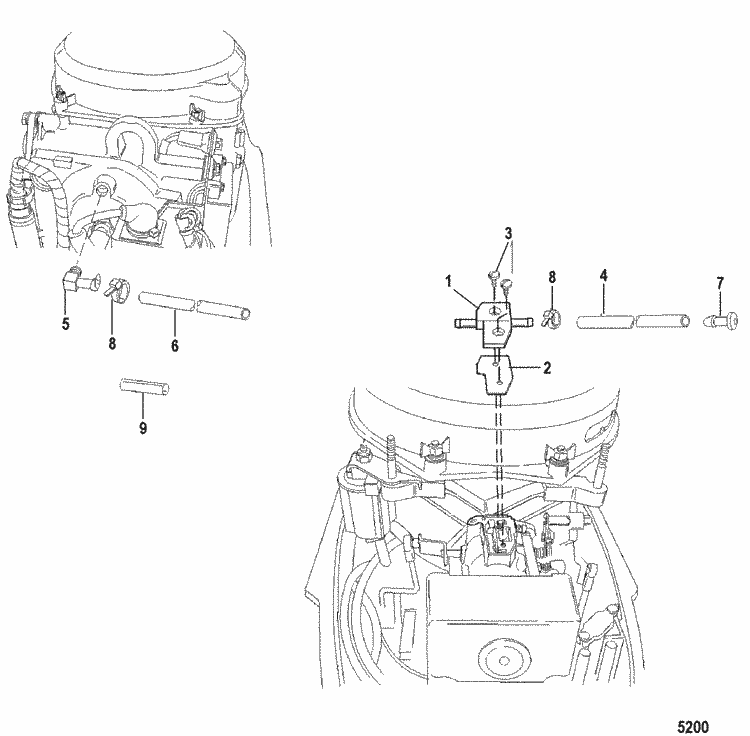

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| #1 — 828155A 1 — HEATER MANIFOLD (1 required per assembly) | ||
  |
|
828155A 1 - Heater Assembly - Carburetor [ More info ] Unavailable |
| #2 — 826138 — GASKET (1 required per assembly) | ||
  |
|
27-826138 - Heater Manifold Gasket [ More info ]
|
| #3 — 20597 — SCREW, (#8-32 x .380) (2 required per assembly) | ||
  |
|
10-20597 - Screw - Priced Individually [ More info ]
|
| #4 — 99128 78 — HOSE, (26.00 Inches Bulk) (.187 ID) (Cut to 17 Inch Length) (1 required per assembly) | ||
  |
|
32-99128 78 - Tubing - 26.00 Inch [ More info ]
|
| #5 — 33373 — ELBOW, 90 Degree (1 required per assembly) | ||
  |
22-33373 - Elbow [ More info ] Unavailable |
|
  |
|
22-33373001 - Elbow [ More info ]
|
| #7 — 828167 — FITTING (1 required per assembly) | ||
  |
|
19-828167 - Fitting - Priced Individually [ More info ]
|
| #8 — 816311T — TIE STRAP, (8.00 Inches) (AR required per assembly) | ||
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #9 — 15026 — CAP (2 required per assembly) | ||
  |
|
22-15026 - Fitting [ More info ]
|
