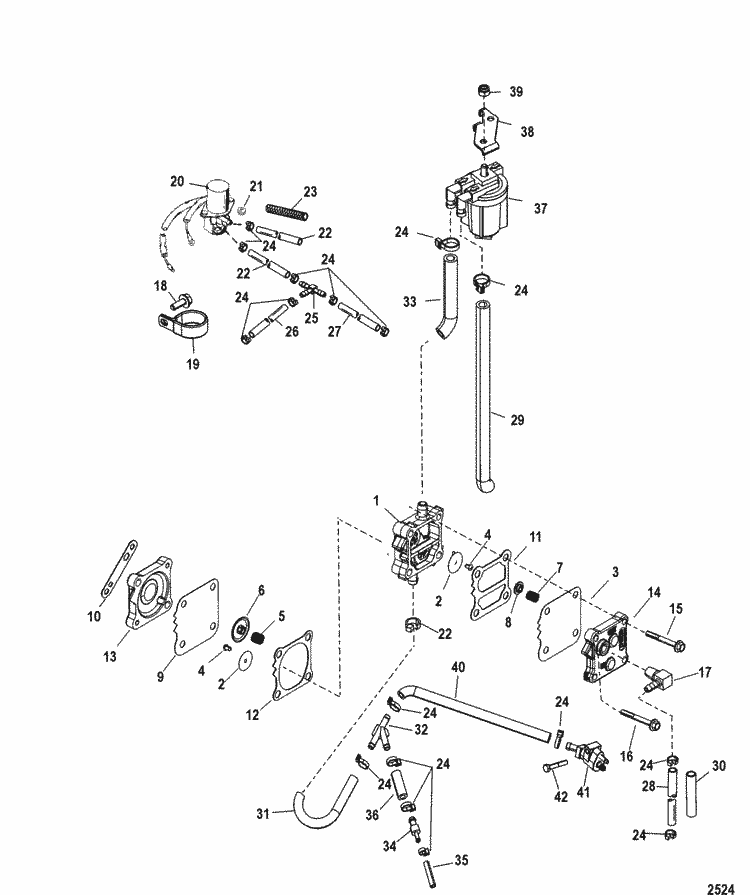

Fuel Pump(Electric)(Design Ii) for Mercury / Mariner (30 / 40 (2 Cylinder) 2-Stroke) Engine
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| # — 808569T02 — POWERHEAD ASSEMBLY (1 required per assembly) | ||
  |
|
808569T02 - Powerhead 30-2S 2CYL [ More info ] Unavailable |
| # — 14360A78 — PUMP KIT, Fuel (1 required per assembly) | ||
  |
|
14360A78 - Fuel Pump Kit [ More info ]
|
| # — 822420A94 — GASKET SET, Engine Overhaul (1 required per assembly) | ||
  |
|
27-822420A94 - Engine Overhaul Gasket Set [ More info ]
|
| #1 — NSS — NOT SOLD SEPARATE, Fuel Pump (1 required per assembly) | ||
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #2 — 857005A 1 — DIAPHRAGM KIT (2 required per assembly) | ||
  |
|
21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ]
|
  |
|
18-7817 - Fuel Pump Kit [ More info ]
|
  |
|
1399-39020 - Fuel Pump REPAIR KIT [ More info ]
|
| #10 — 98769 1 — GASKET (1 required per assembly) | ||
  |
|
27-98769 1 - Gasket [ More info ] Unavailable |
| #13 — 14430 3 — BASE (1 required per assembly) | ||
  |
|
14430 3 - Base [ More info ] Unavailable |
| #14 — 98775 2 — PLATE (1 required per assembly) | ||
  |
|
98775 2 - Plate -Chamber [ More info ]
|
| #15 — 821045 40 — SCREW, (M5 x 40), Pump (2 required per assembly) | ||
  |
|
10-821045 40 - Screw [ More info ]
|
| #16 — 821300 50 — SCREW, (M6 x 50), Pump to Crankcase (2 required per assembly) | ||
  |
|
10-821300 50 - Screw [ More info ]
|
| #17 — 43335 — CONNECTOR, (90 Degree) (.125-27) (.110 ID) Nylon (1 required per assembly) | ||
  |
|
22-43335 - Connector [ More info ]
|
  |
|
22-43335 1 - Connector [ More info ]
|
| #18 — 40067 31 — SCREW, (M6 x 16) (1 required per assembly) | ||
  |
|
10-40067 31 - Screw [ More info ]
|
| #19 — 63300 3 — CLAMP (1 required per assembly) | ||
  |
|
54-63300 3 - Clamp [ More info ]
|
| #20 — 819503A 5 — ENRICHMENT SOLENOID HOSE ASSEMBLY (1 required per assembly) | ||
  |
|
89-819503A 5 - Solenoid Kit [ More info ]
|
| #21 — F694504 — GROMMET (1 required per assembly) | ||
  |
|
25-F694504 - Grommet [ More info ]
|
| #22 — 99126 88 — TUBING, (36.00 Inches Bulk) (Cut to 11.50 Inch Length) (2 required per assembly) | ||
  |
|
32-99126 88 - Tubing - 36 Inch [ More info ]
|
| #23 — 825381 15 — SLEEVE, (.500 x 5.00) (.50 x 5.00 Inch) (1 required per assembly) | ||
  |
|
23-825381 15 - Sleeve [ More info ]
|
| #24 — 816311T — TIE STRAP, (8.00 Inches) (AR required per assembly) | ||
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #24 — 69355 — TIE STRAP, (5.50 Inches) (AR required per assembly) | ||
  |
|
69355 - Tie Strap - Priced Individually [ More info ]
|
  |
|
8M0214940 - TIE STRAP [ More info ]
|
| #25 — 59169003 — FITTING, Tee (1 required per assembly) | ||
  |
|
22-59169003 - Fitting - Priced Individually [ More info ]
|
| #26 — 892024122 — TUBING, (240.00 Inches Bulk) (Cut to 4.00 Inch Length) (1 required per assembly) | ||
  |
|
32-892024122 - Tubing - 20 Feet [ More info ]
|
| #28 — 99128 78 — HOSE, (26.00 Inches Bulk) (.187 ID) (Cut to 3.25 Inch Length) (1 required per assembly) | ||
  |
|
32-99128 78 - Tubing - 26.00 Inch [ More info ]
|
| #30 — 85070 51 — INSULATOR (1 required per assembly) | ||
  |
|
85070 51 - Sleeve -3 Inch [ More info ] Unavailable |
| #31 — 892039 — HOSE, Molded (1 required per assembly) | ||
  |
|
32-892039 - Molded Hose [ More info ]
|
| #32 — 818992 — CONNECTOR (1 required per assembly) | ||
  |
|
22-818992 - Connector [ More info ]
|
| #33 — 892037 — HOSE, Molded (1 required per assembly) | ||
  |
|
32-892037 - Molded Hose [ More info ]
|
| #34 — 818994 1 — CHECK VALVE (1 required per assembly) | ||
  |
|
22-818994 1 - Check Valve [ More info ]
|
  |
|
18-8957 - Check Valve [ More info ]
|
| #35 — 823813 35 — TUBING, (15.00 Inches Bulk) (Cut to 1.50 Inch Length) (1 required per assembly) | ||
  |
|
32-823813 35 - Tubing - 15 Inch [ More info ]
|
| #36 — 830757130 — TUBING, (.312 ID) (70.00 Inches Bulk) (Cut to 1.50 Inch Length) (1 required per assembly) | ||
  |
32-830757130 - Tubing-70 Inch [ More info ] Unavailable |
|
  |
32-8M0047448 - Tubing-70 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108349 - Hose-70 Inch [ More info ]
|
| #37 — 891642T03 — FILTER ASSEMBLY, Fuel (1 required per assembly) | ||
  |
|
35-891642T03 - Fuel Filter [ More info ] Unavailable |
  |
|
35-8M0063726 - Fuel Filter Kit [ More info ]
|
| #38 — 822387 — BRACKET (1 required per assembly) | ||
  |
|
822387 - Fuel Filter Bracket [ More info ] Unavailable |
| #39 — 40136 6 — NUT, (M6) (1 required per assembly) | ||
  |
|
11-40136 6 - Nut - Priced Individually [ More info ]
|
| #40 — 892040 — HOSE, Molded (1 required per assembly) | ||
  |
|
32-892040 - Molded Hose [ More info ]
|
| #41 — 816856A 1 — FUEL CONNECTOR (1 required per assembly) | ||
  |
22-816856A 1 - Fuel Connector [ More info ] Unavailable |
|
  |
|
22-816856T01 - Fuel Connector [ More info ]
|
| #42 — 40003 32 — SCREW, (M6 x 35) (1 required per assembly) | ||
  |
|
10-40003 32 - Screw [ More info ]
|
