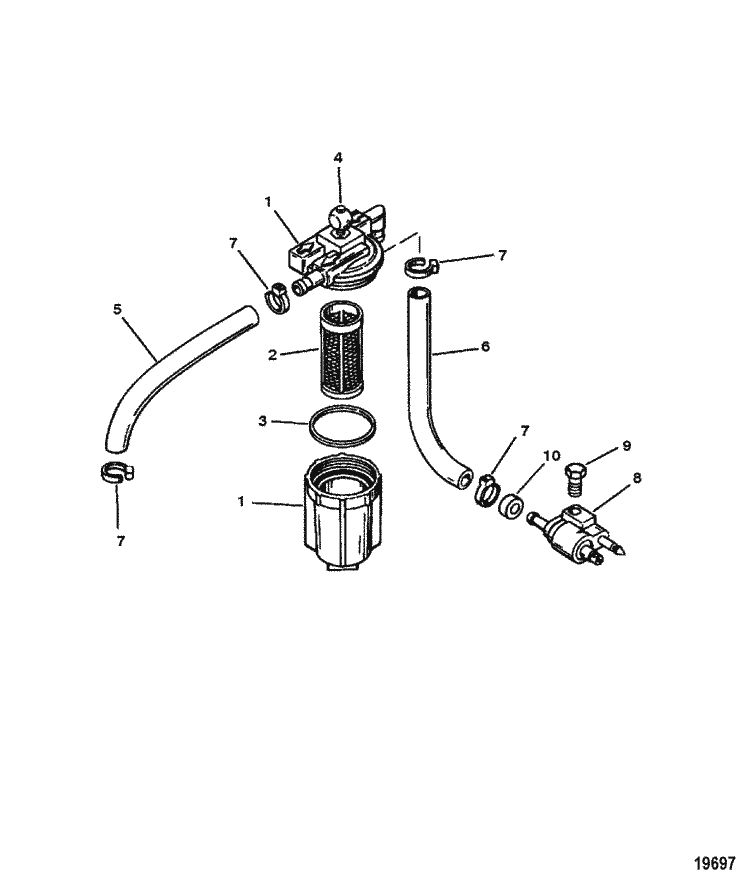

Fuel Filter Assembly for Mercury / Mariner (6 / 8 / Sailmate 9.9 / Sailpower 15 HP) Engine
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| #1 — 87946A15 — FILTER ASSEMBLY, Fuel (1 required per assembly) | ||
  |
35-87946A15 - Fuel Filter Kit [ More info ] Unavailable |
|
  |
|
35-8M0111436 - 35-8M0111436 - FILTER KIT-FUEL [ More info ] Unavailable Replaced by 35-889527A07 |
  |
|
35-889527A07 - Fuel Filter Kit [ More info ]
|
| #2 — 87946A 3 — FILTER ASSEMBLY (1 required per assembly) | ||
  |
35-87946A 3 - Filter [ More info ] Unavailable |
|
  |
35-87946Q 3 - Filter Kit - , Priced Individually [ More info ] Unavailable |
|
  |
|
35-87946Q04 - Fuel Filter - Priced Individually [ More info ]
|
  |
|
18-7802 - Filter, 35-87946A3, Q3, Q0 [ More info ]
|
  |
|
35-87946K04 - Fuel Filter - Priced Individually [ More info ]
|
  |
|
35-35417 - Fuel Filter [ More info ]
|
| #3 — 98277 — SEAL (1 required per assembly) | ||
  |
25-98277 - Seal, Fuel Filter [ More info ] Unavailable |
|
  |
|
25-897536 - Filter Seal - Priced Individually [ More info ]
|
  |
|
18-7113-9 - O-Ring 25-897536 10 Pack [ More info ]
|
| #4 — 91935 — BALL (1 required per assembly) | ||
  |
91935 - Ball [ More info ] Unavailable |
|
  |
|
858731 - Fuel Filter Ball [ More info ]
|
| #5 — 830756109 — HOSE, (57.00 Inches Bulk) (1 required per assembly) | ||
  |
32-830756109 - Hose, 57 Inch [ More info ] Unavailable |
|
  |
32-8M0047428 - Hose -57 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #7 — 816311 — TIE STRAP, (8.00 Inches) (4 required per assembly) | ||
  |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #8 — 15781A 9 — CONNECTOR KIT, Fuel (1 required per assembly) | ||
  |
|
22-15781A 9 - Fuel Connector, 90 Degree [ More info ]
|
| #9 — 40003 30 — SCREW, (M6 x 25) (1 required per assembly) | ||
  |
|
10-40003 30 - Screw - Priced Individually [ More info ]
|
| #10 — 18202 — GROMMET (1 required per assembly) | ||
  |
|
25-18202 - Grommet, Fuel Connector [ More info ]
|
