Heat Indicator Buzzer for Force (40 / 50 HP) Engine

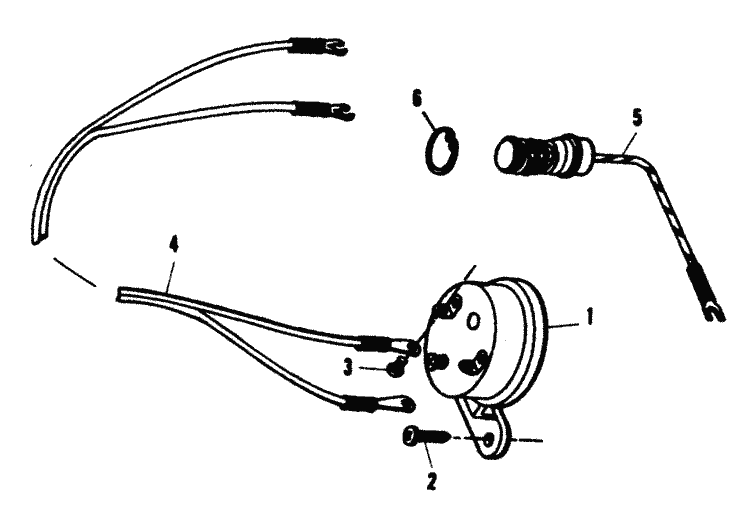

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| #1 — F5H043 — BUZZER KIT, HEAT INDICATOR (92C) (1 required per assembly) — SERIAL 0E000001-0E009499 | ||
  |
|
F5H043 - Buzzer Kit [ More info ] Unavailable |
| #2 — F1741 — SCREW (#8 X 3/4") (92C) (2 required per assembly) — SERIAL 0E000001-0E009499 | ||
  |
|
10-F1741 - Screw -ss [ More info ] Unavailable |
| #3 — 69080 — SCREW (6-32 X 1/4") (92C) (2 required per assembly) — SERIAL 0E000001-0E009499 | ||
  |
|
10-69080 - Screw [ More info ] Unavailable |
| #4 — 65017A24 — HARNESS (92C) (1 required per assembly) — SERIAL 0E000001-0E009499 | ||
  |
|
84-65017A24 - Harness Assembly [ More info ] Unavailable |
| #5 — F658449-2 — THERMOSWITCH (92C) (1 required per assembly) — SERIAL 0E000001-0E009499 | ||
  |
87-F658449-2 - ThermoSwitch [ More info ] Unavailable |
|
| #5 — 819502 — THERMOSWTICH (1 required per assembly) — SERIAL 0E009500-0E093699 | ||
  |
|
87-819502 - ThermoSwitch [ More info ]
|
| #6 — F717096 — RING, RETAINING (1 required per assembly) | ||
  |
|
53-F717096 - Ring - Retaining [ More info ] Unavailable |
