Drive Shaft Housing & Drive Shaft for Mercruiser (Alpha One (Gen Ii) Stern Drive & Transom Assembly) Engine
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| #1 — 18312A 1 — TOP COVER, With Dipstick Hole (1 required per assembly) | ||
  |
|
18312A 1 - Top Cover [ More info ] Unavailable |
  |
|
828692A 1 - Cover Assembly [ More info ]
|
| #1 — 18312A 3 — TOP COVER, With Out Dipstick Hole (1 required per assembly) | ||
  |
18312A 3 - TOP Cover [ More info ] Unavailable |
|
  |
|
18-2382 - Cover, 828692A1 [ More info ]
|
| #2 — 61100A 1 — BEARING ASSEMBLY (1 required per assembly) | ||
  |
|
31-61100A 1 - Bearing - Driveshaft [ More info ]
|
  |
|
18-1165 - Bearing, 31-61100A1 [ More info ]
|
| #3 — 45691A 1 — SHIM (AR required per assembly) | ||
  |
|
15-45691A 1 - Shim Set [ More info ]
|
| #4 — 32546 — O-RING (1 required per assembly) | ||
  |
|
25-32546 - O-Ring - Priced Individually [ More info ]
|
  |
|
18-7161-9 - (PK5) O-Ring 25-32546 [ More info ]
|
| #5 — 98794 — SCREW, (.375-16 x 1.00) (4 required per assembly) | ||
  |
10-98794 - Screw [ More info ] Unavailable |
|
  |
|
10-8M0113180 - Mouting Screw AL/BRAV TOP Cover, priced individually [ More info ]
|
| #6 — 816610A 1 — DIPSTICK ASSEMBLY (1 required per assembly) — (Old Design) | ||
  |
|
816610A 1 - Dipstick Assembly [ More info ]
|
  |
10-79953A 2 - Drain Screw Kit [ More info ] Unavailable |
|
  |
10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable |
|
  |
|
10-79953Q04 - Screw Kit - Priced Individually [ More info ]
|
  |
|
18-2244 - Plug Kit, 10-79953A2 [ More info ]
|
  |
|
10-79953K04 - Drain Screw - Priced Individually [ More info ]
|
| #7 — 19183 — WASHER, Fiber (1 required per assembly) — (Old Design) | ||
  |
12-19183 - Washer (3/8 Inch Screw) [ More info ] Unavailable |
|
  |
12-19183 2 - Washer - Priced Individually [ More info ] Unavailable |
|
  |
12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable |
|
  |
|
18-2945-9 - Gasket 12-19183 2-Pack [ More info ]
|
  |
|
12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ]
|
  |
|
12-19183K02 - Seal, Pack of 4 [ More info ]
|
  |
|
12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ]
|
  |
|
12-02108-1 - Drain Gasket (1 piece) [ More info ]
|
| #8 — 55796 1 — DRIVESHAFT, Upper (1 required per assembly) | ||
  |
|
45-55796 1 - Drive Shaft - Upper [ More info ]
|
| #9 — 815932 — FILLER WALL (1 required per assembly) | ||
  |
|
815932 - Filler Wall [ More info ]
|
| #10 — 817387A91 — DECAL SET (1 required per assembly) | ||
  |
|
37-817387A91 - Decal Set [ More info ]
|
| #11 — 13722A11 — DECAL SET, Engine Model (1 required per assembly) — (2.5L/3.0L) | ||
  |
|
37-13722A11 - Decal Set [ More info ] Unavailable |
| #11 — 13722A13 — DECAL SET, Engine Model (1 required per assembly) — (4.3L/4.3L-LX/5.0L/5.0L-LX/5.7L) | ||
  |
|
37-13722A13 - Decal Set [ More info ] Unavailable |
| #12 — 821629A 1 — ANODE ASSEMBLY (1 required per assembly) | ||
  |
821629A 1 - Anode Kit [ More info ] Unavailable |
|
  |
|
97-821629Q 1 - Anode-Drive Shaft Housing - GEN II [ More info ]
|
  |
|
18-6099 - Anode, Magnesium, 821629 [ More info ]
|
  |
|
18-6080A - Anode, Aluminum, 18-6080A [ More info ]
|
  |
|
97-821629T 1 - Anode-Drive Shaft Housing - GEN II [ More info ]
|
  |
|
93-04308 - Anode, Aluminum [ More info ]
|
| #13 — 28668 — SCREW, (.250-20 x .875) Stainless Steel (2 required per assembly) | ||
  |
|
10-28668 - Screw - Priced Individually [ More info ]
|
| #14 — 78968 — LOCKWASHER, Internal (.250) (2 required per assembly) | ||
  |
|
13-78968 - LockWasher - Priced Individually [ More info ]
|
| #15 — 816601 — SCREW, (.437-20 x 1.500) (4 required per assembly) | ||
  |
|
10-816601 - Screw [ More info ]
|
| #16 — 88397 — SEAL (1 required per assembly) | ||
  |
|
26-88397 - Seal - Priced Individually [ More info ]
|

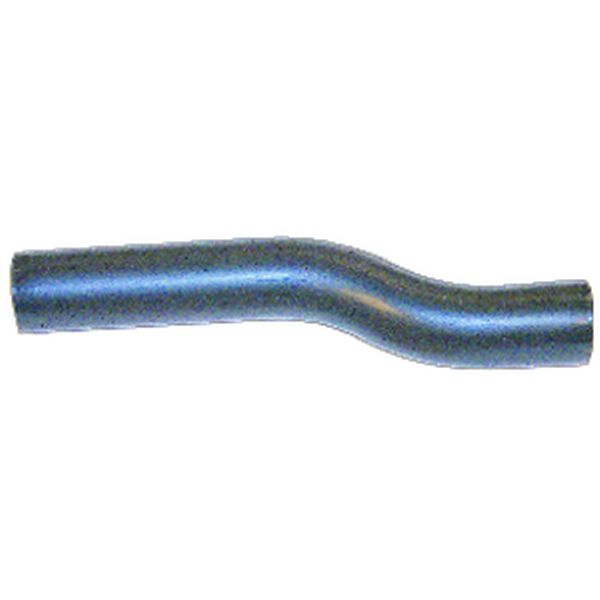

| #17 — 814384 — TUBE, Water (1 required per assembly) | ||
  |
32-814384 - TUBING [ More info ] Unavailable |
|
  |
32-860220 - Water Tube [ More info ] Unavailable |
|
  |
|
18-3221 - Tube, 32-860220 [ More info ]
|
  |
|
32-8M0171252 - Drive Shaft Housing Water Tube ZZ [ More info ]
|
| #18 — 45176 — WASHER, (.453 x .812 x .105) Stainless Steel (4 required per assembly) | ||
  |
|
12-45176 - Washer, (.453 X .812 X .105) [ More info ]
|
| #19 — 88397A 1 — SEAL KIT, Driveshaft Housing (1 required per assembly) | ||
  |
|
26-88397A 1 - Seal Kit [ More info ]
|
  |
|
18-2644 - Seal Kit, 26-88397A1 [ More info ]
|
  |
|
26-03807 - Seal Kit 26-88397A 1 [ More info ]
|
