Carburetor(20) for Mercury / Mariner (20 H.p / 25 HP Sea Pro / Marathon 25 Super 15) Engine
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| # — 822261A92 — POWERHEAD ASSEMBLY (1 required per assembly) — SN# 0D116956 THRU 0D117955 | ||
  |
822261A92 - Powerhead MERCAS [ More info ] Unavailable |
|
  |
90885A88 - Powerhead [ More info ] Unavailable |
|
  |
90885A89 - Powerhead MARINE [ More info ] Unavailable |
|
  |
90885T89 - Powerhead [ More info ] Unavailable |
|
  |
|
879732T89 - PH 20/25,NLA [ More info ] Unavailable |
| # — 9844A 1 — PRIMER/INJECTOR SERVICE KIT (1 required per assembly) — PARTS INCLUDED IN KIT ARE INDICATED BY A DOT ON THE ILLUSTRATION. | ||
  |
|
1395-9844A 1 - Service Kit [ More info ]
|
| # — 90885A88 — POWERHEAD ASSEMBLY (1 required per assembly) | ||
| # — 41499A87 — GASKET SET (1 required per assembly) | ||
  |
27-41499A87 - Engine Gasket Set [ More info ] Unavailable |
|
  |
|
27-41499A88 - Engine Gasket Set [ More info ]
|
| #1 — 8888A 9 — CARBURETOR (MANUAL) - WMC-29 (1 required per assembly) | ||
  |
1390-8888A 9 - Carburetor [ More info ] Unavailable |
|
  |
1390-8888A10 - Carburetor [ More info ] Unavailable |
|
  |
1390-8888T10 - Carburetor [ More info ] Unavailable |
|
  |
1390-8888T14 - Carburetor [ More info ] Unavailable |
|
  |
|
1390-8888T18 - Carburetor [ More info ] Unavailable |
| #1 — 8888A10 — CARBURETOR (MANUAL) - WMC-36 (1 required per assembly) | ||
| #1 — 8676A11 — CARBURETOR (ELECTRIC) - WMC-30 (1 required per assembly) | ||
  |
1390-8676A11 - Carburetor [ More info ] Unavailable |
|
  |
1390-8676A12 - Carburetor [ More info ] Unavailable |
|
| #1 — 8676A12 — CARBURETOR (ELECTRIC) - WMC-37 (1 required per assembly) | ||
| #2 — 9640 — THROTTLE VALVE (1 required per assembly) | ||
  |
|
1395-9640 - THROTTLE Valve, NLA [ More info ] Unavailable |
| #3 — 9695 — THROTTLE SHAFT (1 required per assembly) | ||
  |
|
1395-9695 - Throttle Shaft [ More info ] Unavailable |
| #4 — 9164 — FUEL BOWL (1 required per assembly) | ||
  |
|
1395-9164 - Fuel Bowl [ More info ]
|
| #5 — 9169 — FLOAT (1 required per assembly) | ||
  |
1395-9169 - Float [ More info ] Unavailable |
|
  |
|

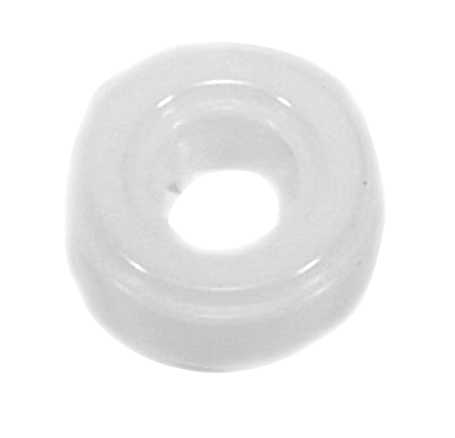

1395-9169 1 - Float [ More info ]
|
| #6 — 9855 — VALVE, INLET NEEDLE (1 required per assembly) | ||
  |
1395-9855 - Valve-Inlet [ More info ] Unavailable |
|
  |
1395-879194048 - VALVE-INLET [ More info ] Unavailable |
|
  |
|
1395-803861 - Inlet Valve [ More info ]
|
| #7 — 5317 — JET, (.046), MAIN FUEL (WMC 29/30) (1 required per assembly) | ||
  |
|
1399-5317 - Jet -.046 [ More info ]
|
| #7 — 7394 — JET, (.044), MAIN FUEL (WMC 36/37) (1 required per assembly) | ||
  |
|
1395-7394 - Jet -.044 [ More info ]
|
| #8 — 9171 — PLUG, JET RETAINER (1 required per assembly) | ||
  |
|
1395-9171 - Plug [ More info ]
|
| #9 — 813618 — COVER, DIAPHRAGM (WMC 29/30) (1 required per assembly) | ||
  |
|
813618 - Cover [ More info ] Unavailable |
| #10 — 9697 — SCREW, DIAPHRAGM COVER (4 required per assembly) | ||
  |
|
1395-9697 - Screw Assembly [ More info ] Unavailable |
| #11 — 15827A 1 — BODY, FUEL PUMP (1 required per assembly) | ||
  |
|
15827A 1 - ORD1395-9702 [ More info ] Unavailable |
| #12 — 9643 — SCREW, FUEL PUMP COVER (5 required per assembly) | ||
  |
|
1395-9643 - Screw Assembly [ More info ]
|
| #13 — 9637 — COVER, FUEL PUMP (1 required per assembly) | ||
  |
|
1395-9637 - Cover [ More info ]
|
| #14 — 9762 — PLUG (1 required per assembly) | ||
  |
|
1395-9762 - Plug [ More info ] Unavailable |
| #15 — 9803 — GASKET/DIAPHRAGM KIT (1 required per assembly) | ||
  |
1395-9803 - Carburetor Gasket And Diaphragm Kit [ More info ] Unavailable |
|
  |
|
1300-36004 - Carburetor Kit - Mercury 1395-9761 1 [ More info ]
|
  |
|
1395-9761 1 - Gasket and Diaphragm Kit [ More info ]
|
  |
|
18-7212 - Carburetor and Fuel Pump Diaphragm Kit, 1395-9761 1 [ More info ]
|
| #16 — 9802 — REPAIR PARTS KIT (WMC 29/30) (1 required per assembly) | ||
  |
1395-9802 - Repair Kit [ More info ] Unavailable |
|
  |
|
1395-823707 2 - Carburetor Repair Kit, Float NOT included [ More info ]
|
  |
|
18-97350 - Carb Kit, Mercury 1395-823707 2, Float Not Included [ More info ]
|
| #16 — 823649 — REPAIR PARTS KIT (WMC 36/37) (1 required per assembly) | ||
  |
1395-823649 - Repair Kit [ More info ] Unavailable |
|
| #17 — 9699 — PLATE, COVER (MANUAL) (1 required per assembly) | ||
  |
|
1395-9699 - Cover Plate [ More info ] Unavailable |
| #18 — 823433 — ELECTRIC CHOKE (ELECTRIC) (1 required per assembly) | ||
  |
|
1395-823433 - Solenoid [ More info ] Unavailable |
| #19 — 9696 — SCREW, COVER PLATE (2 required per assembly) | ||
  |
|
1395-9696 - Screw Assembly [ More info ] Unavailable |
| #20 — 41449 1 — GASKET, CARBURETOR (1 required per assembly) | ||
  |
27-41449 1 - Gasket [ More info ] Unavailable |
|
  |
|
27-19206 1 - Gasket [ More info ]
|
| #21 — 9635 — DIAPHRAGM/GASKET (1 required per assembly) | ||
  |
|
1395-9635 - Diaphragm [ More info ]
|
| #22 — 9633 — GASKET (1 required per assembly) | ||
  |
|
1395-9633 - Fuel Pump Gasket [ More info ]
|
| #23 — F10064 — SHAFT (1 required per assembly) | ||
  |
|
F10064 - Float Support Shaft [ More info ]
|
| #24 — 824401 — FLOAT LEVER (1 required per assembly) | ||
  |
|
1395-824401 - Float Lever [ More info ]
|
| #25 — 79964 — SCREW, (#6-32 x .750), FAST IDLE LEVER (1 required per assembly) | ||
  |
10-79964 - Screw [ More info ] Unavailable |
|
  |
|
10-12110 - Screw [ More info ]
|
| #26 — 11277 — SPRING, Tension (1 required per assembly) | ||
  |
|
24-11277 - Spring, Tension [ More info ]
|
| #27 — 40056110 — SCREW, (M5 x 30), PRIMER BRACKET (2 required per assembly) | ||
  |
|
10-40056110 - Screw [ More info ]
|
| #27 — 40001 8 — SCREW, (M5 x 12), PRIMER BRACKET (M5 X 8 X 12 MM) (2 required per assembly) | ||
  |
|
10-40001 8 - Screw - Priced Individually [ More info ]
|
| #28 — 79965 — SCREW, (#8-32 x .500), PRIMER BRACKET (1 required per assembly) | ||
  |
|
10-79965 - Screw [ More info ]
|
| #29 — 11273 1 — PRIMER LEVER (1 required per assembly) | ||
  |
|
11273 1 - LEVER Primer [ More info ] Unavailable |
| #30 — 11280 — CAM BLOCK (1 required per assembly) | ||
  |
|
11280 - Cam Block [ More info ]
|
| #31 — 11278 — CLIP, Retaining (1 required per assembly) | ||
  |
|
53-11278 - Ring - Retaining [ More info ]
|
| #32 — 17229 1 — CHOKE BEZEL (1 required per assembly) | ||
  |
|
17229 1 - Choke-Bezel [ More info ]
|
| #33 — 12802 — KNOB, PRIMER (1 required per assembly) | ||
  |
12802 - Knob [ More info ] Unavailable |
|
  |
|
|
| #34 — 17442 — COVER, CARBURETOR (1 required per assembly) | ||
  |
|
17442 - Carburetor Cover [ More info ] Unavailable |
| #35 — 47579 — PLUG, CARBURETOR COVER (1 required per assembly) | ||
  |
|
19-47579 - Plug - Priced Individually [ More info ]
|
  |
|
18-3232-9 - Plug, 19-47579, 5PK [ More info ]
|
| #36 — 12733 1 — IDLE WIRE (1 required per assembly) | ||
  |
12733 1 - IDLE WIRE [ More info ] Unavailable |
|
  |
|
12733 2 - Wire - Idle [ More info ]
|
| #37 — 12805 3 — FAST IDLE LEVER, FAST IDLE (1 required per assembly) | ||
  |
|
12805 3 - Fast Idle Lever [ More info ]
|
| #38 — 12803 — PRIMER BRACKET, PRIMER (1 required per assembly) | ||
  |
|
12803 - Primer Bracket [ More info ]
|
| #39 — 97877 — PUSHNUT, FAST IDLE LEVER (1 required per assembly) | ||
  |
11-97877 - Nut, Push [ More info ] Unavailable |
|
  |
|
|
