Carburetor Assembly (15) for Mercury / Mariner (6 / 8 HP 9.9 / 15 HP) Engine
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| #1 — 9726A 3 — CARBURETOR (WMC-39) (1 required per assembly) | ||
  |
1392-9726A 3 - Carburetor [ More info ] Unavailable |
|
  |
1392-9726T 3 - Carburetor [ More info ] Unavailable |
|
  |
1392-9726T14 - Carburetor [ More info ] Unavailable |
|
  |
|
1392-9726T19 - Carburetor [ More info ]
|
| #2 — 19268 — THROTTLE VALVE (WMC-28) (1 required per assembly) | ||
  |
|
19268 - THROTTLE Valve, NLA [ More info ] Unavailable |
| #2 — 823716 — THROTTLE VALVE (WMC-39) (1 required per assembly) | ||
  |
|
1395-823716 - Throttle Valve [ More info ]
|
| #3 — 19267 — THROTTLE SHAFT (INCLS.SCREW & SPRING) (1 required per assembly) | ||
  |
|
19267 - Throttle Shaft [ More info ]
|
| #4 — 9164 — FUEL BOWL (1 required per assembly) | ||
  |
|
1395-9164 - Fuel Bowl [ More info ]
|
| #5 — 9169 — FLOAT (1 required per assembly) | ||
  |
1395-9169 - Float [ More info ] Unavailable |
|
  |
|
1395-9169 1 - Float [ More info ]
|
| #6 — 9855 — INLET NEEDLE VALVE (1 required per assembly) | ||
  |
1395-9855 - Valve-Inlet [ More info ] Unavailable |
|
  |
1395-879194048 - VALVE-INLET [ More info ] Unavailable |
|
  |
|
1395-803861 - Inlet Valve [ More info ]
|
| #7 — 4215 — MAIN FUEL JET (.066) (1 required per assembly) | ||
  |
|
1399-4215 - Jet -.066 [ More info ]
|
| #8 — 9171 — PLUG, JET RETAINER (1 required per assembly) | ||
  |
|
1395-9171 - Plug [ More info ]
|
| #9 — 813618 — COVER, DIAPHRAGM (1 required per assembly) | ||
  |
|
813618 - Cover [ More info ] Unavailable |
| #10 — 9697 — SCREW, DIAPHRAGM COVER (4 required per assembly) | ||
  |
|
1395-9697 - Screw Assembly [ More info ] Unavailable |
| #11 — 15827A 1 — FUEL PUMP KIT (1 required per assembly) | ||
  |
|
15827A 1 - ORD1395-9702 [ More info ] Unavailable |
| #12 — 9643 — SCREW, FUEL PUMP COVER (5 required per assembly) | ||
  |
|
1395-9643 - Screw Assembly [ More info ]
|
| #13 — 9699 — PLATE, COVER (1 required per assembly) | ||
  |
|
1395-9699 - Cover Plate [ More info ] Unavailable |
| #14 — 9696 — SCREW, COVER PLATE (2 required per assembly) | ||
  |
|
1395-9696 - Screw Assembly [ More info ] Unavailable |
| #15 — 9803 — GASKET/DIAPHRAGM KIT (1 required per assembly) | ||
  |
1395-9803 - Carburetor Gasket And Diaphragm Kit [ More info ] Unavailable |
|
  |
|
1300-36004 - Carburetor Kit - Mercury 1395-9761 1 [ More info ]
|
  |
|
1395-9761 1 - Gasket and Diaphragm Kit [ More info ]
|
  |
|
18-7212 - Carburetor and Fuel Pump Diaphragm Kit, 1395-9761 1 [ More info ]
|
| #16 — 19269 — REPAIR PARTS KIT (1 required per assembly) | ||
  |

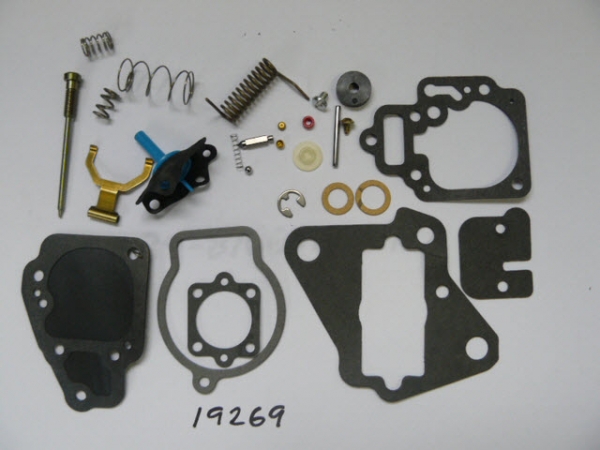

19269 - Carburetor Repair Kit, No Float [ More info ] Unavailable |
|
  |
|
1395-823707 2 - Carburetor Repair Kit, Float NOT included [ More info ]
|
  |
|
18-97350 - Carb Kit, Mercury 1395-823707 2, Float Not Included [ More info ]
|
| #17 — 9637 — COVER, FUEL PUMP (1 required per assembly) | ||
  |
|
1395-9637 - Cover [ More info ]
|
| #18 — 9762 — PLUG (1 required per assembly) | ||
  |
|
1395-9762 - Plug [ More info ] Unavailable |
| #19 — 19206 1 — GASKET, CARBURETOR (1 required per assembly) | ||
  |
|
27-19206 1 - Gasket [ More info ]
|
| #20 — 9635 — DIAPHRAGM (1 required per assembly) | ||
  |
|
1395-9635 - Diaphragm [ More info ]
|
| #21 — 12805 3 — FAST IDLE LEVER (1 required per assembly) | ||
  |
|
12805 3 - Fast Idle Lever [ More info ]
|
| #22 — 12803 — PRIMER BRACKET (1 required per assembly) | ||
  |
|
12803 - Primer Bracket [ More info ]
|
| #23 — 97877 — PUSHNUT (1 required per assembly) | ||
  |
11-97877 - Nut, Push [ More info ] Unavailable |
|
  |
|
|
| #24 — 79964 — SCREW (1 required per assembly) | ||
  |
10-79964 - Screw [ More info ] Unavailable |
|
  |
|
10-12110 - Screw [ More info ]
|
| #25 — 11277 — SPRING (1 required per assembly) | ||
  |
|
24-11277 - Spring, Tension [ More info ]
|
| #26 — 40056110 — SCREW (M5 X 8 X 30) (2 required per assembly) | ||
  |
|
10-40056110 - Screw [ More info ]
|
| #26 — 40001 8 — SCREW (M5 X 8 X 12) (2 required per assembly) | ||
  |
|
10-40001 8 - Screw - Priced Individually [ More info ]
|
| #27 — 79965 — SCREW (1 required per assembly) | ||
  |
|
10-79965 - Screw [ More info ]
|
| #28 — 11273 1 — PRIMER LEVER (1 required per assembly) | ||
  |
|
11273 1 - LEVER Primer [ More info ] Unavailable |
| #29 — 11280 — CAM BLOCK (1 required per assembly) | ||
  |
|
11280 - Cam Block [ More info ]
|
| #30 — 11278 — RETAINING CLIP (1 required per assembly) | ||
  |
|
53-11278 - Ring - Retaining [ More info ]
|
| #31 — 12804A 1 — CHOKE BEZEL (1 required per assembly) | ||
  |
|
12804A 1 - Bezel Assembly [ More info ]
|
| #32 — 12802 2 — PRIMER KNOB (1 required per assembly) | ||
  |
|
|
| #34 — 40021 1 — NUT (1 required per assembly) | ||
  |
|
11-40021 1 - Nut [ More info ]
|
| #35 — 17442 — COVER (1 required per assembly) | ||
  |
|
17442 - Carburetor Cover [ More info ] Unavailable |
| #36 — 47579 — PLUG (1 required per assembly) | ||
  |
|
19-47579 - Plug - Priced Individually [ More info ]
|
  |
|
18-3232-9 - Plug, 19-47579, 5PK [ More info ]
|
| #37 — 44554 1 — IDLE WIRE (1 required per assembly) | ||
  |
|
44554 1 - Wire - Idle [ More info ]
|
| #38 — 12970 — DECAL (SLOW/FAST) (1 required per assembly) | ||
  |
37-12970 - DECAL [ More info ] Unavailable |
|
  |
|
37-12970 1 - Decal [ More info ]
|
