Flame Arrestor(New Design) for Mercruiser (7.4l Bravo) Engine
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| #1 — 18484A 3 — COVER, CARBURETOR (1 required per assembly) | ||
  |
|
18484A 3 - Carburetor Cover Kit [ More info ]
|
| #2 — 812776A 8 — DECAL SET (1 required per assembly) | ||
  |
|
37-812776A 8 - Decal Set, NLA [ More info ] Unavailable |
| #3 — 57835 1 — STUD, FLAME ARRESTOR (1 required per assembly) | ||
  |
16-57835 1 - STUD [ More info ] Unavailable |
|
  |
|
16-805161 - Stud, NLA [ More info ]
|
| #4 — 28941 — NUT, JAM - FLAME ARRESTOR (1 required per assembly) | ||
  |
|

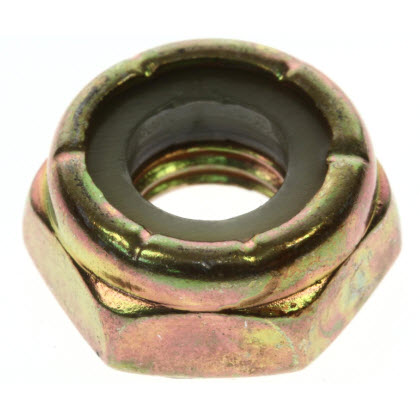

11-28941 - Nut, NLA [ More info ]
|
  |
|
11-826713 9 - Nut [ More info ]
|
| #5 — 57882T 1 — FLAME ARRESTOR NEW DESIGN (1 required per assembly) | ||
  |
57882T 1 - Flame Arrestor [ More info ] Unavailable |
|
  |
|
805298A 1 - Flame Arrestor [ More info ]
|
| #6 — 86400 — WASHER, SEALING (1 required per assembly) | ||
  |
|
12-86400 - Washer, Flame Arrestor [ More info ]
|
| #7 — 35045 — NUT, (.250-28), FLAME ARRESTOR STUD (1 required per assembly) | ||
  |
11-35045 - Nut (1/4-28) [ More info ] Unavailable |
|
  |
|
11-826709109 - Nut, (.250-28) Stainless Steel [ More info ]
|
| #8 — 93315 12 — HOSE, VENT - CARBURETOR (11-1/4") (2 required per assembly) | ||
  |
|
32-93315 12 - Hose -20.5 Inch [ More info ]
|
  |
32-807498240 - Hose -24 Inch [ More info ] Unavailable |
|
  |
32-8M2001709 - Hose - Breather - 36 Inch [ More info ] Unavailable |
|
  |
32-8M2012906 - Hose [ More info ] Unavailable |
|
  |
|
328M0062669 - Hose [ More info ]
|
| #9 — 53101 — CLAMP, VENT HOSE (4 required per assembly) | ||
  |
|
54-53101 - Clamp [ More info ]
|
| #10 — 97850 — ELBOW, 90 Degree, Breather - VENT HOSE (2 required per assembly) | ||
  |
|
97850 - Elbow-Breather [ More info ]
|
  |
|
|
| #11 — 59987 — GROMMET, ROCKER COVER (2 required per assembly) | ||
  |
|
25-59987 - Grommet, Rocker Cover To Vent Hose Connector,NLA [ More info ]
|
