Fuel Pump & Fuel Filter for Mercruiser (175 HP / 4.3l / 205 HP / 4.3l / Lx) Engine
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| # — 11977A92 — GASKET SET (1 required per assembly) | ||
  |
|
27-11977A92 - Engine Overhaul Gasket Set [ More info ] Unavailable |
  |
|
18-4388 - Gasket Set, 27-11977A92 [ More info ]
|
| #1 — 41141A 2 — PUMP ASSEMBLY, Fuel (1 required per assembly) | ||
  |

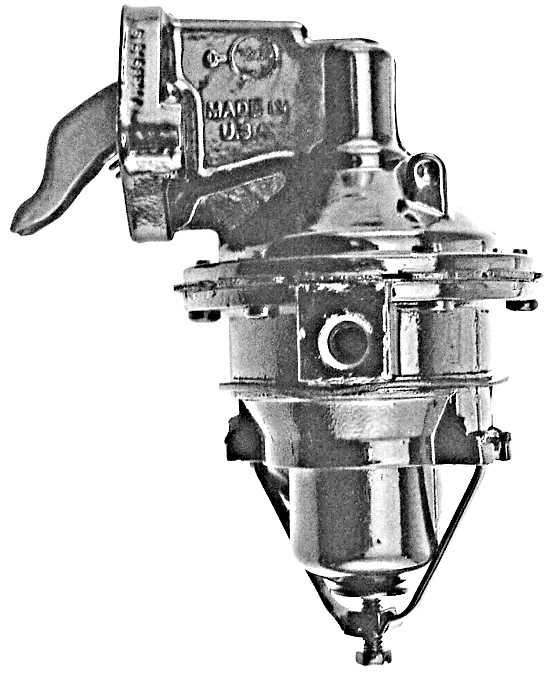

41141A 2 - Fuel Pump Assembly [ More info ] Unavailable |
|
  |
|
862077A 1 - Fuel Pump Assembly [ More info ]
|
  |
|
18-7284 - Fuel Pump 41141A2 [ More info ]
|
  |
|
35-35284 - Mechanical Fuel Pump [ More info ]
|
| #2 — 11004 — FILTER (1 required per assembly) | ||
  |
|
35-11004 - 35-11004 - FILTER [ More info ] Unavailable Replaced by 35-11004A1 |
  |
35-11004A 1 - Fuel Filter Kit [ More info ] Unavailable |
|
  |
35-11004Q 2 - Fuel Filter Note: Priced Individually [ More info ] Unavailable |
|
  |
35-803897Q 1 - Filter Kit Priced Individually [ More info ] Unavailable |
|
  |
|
35-8M0046752 - Filter Kit - Priced Individually [ More info ]
|
  |
|
18-7784 - Filter, 35-11004T2 [ More info ]
|
  |
|
35-8M0046751 - Filter Kit - Priced Individually [ More info ]
|
  |
|
35-01501-1 - Fuel Filter [ More info ]
|
| #3 — 34213 — GASKET, FUEL PUMP TO CYLINDER BLOCK (1 required per assembly) | ||
  |
|
27-34213 - Gasket, Priced Individually [ More info ]
|
  |
|
18-0889-9 - Gasket 27-34213 2-Pack [ More info ]
|
| #4 — 31984 — SCREW, (.312-18 x 1.375), FUEL PUMP (2 required per assembly) | ||
  |
|
10-31984 - Screw - Priced Individually [ More info ]
|
| #5 — 39107 — LOCKWASHER, (.312-24), FUEL PUMP SCREW (2 required per assembly) | ||
  |
|
13-39107 - LockWasher - Priced Individually [ More info ]
|
| #6 — 42454 — PLATE, FUEL PUMP MOUNTING (1 required per assembly) | ||
  |
|
42454 - Plate, NLA [ More info ] Unavailable |
| #7 — 42457 — GASKET, FUEL PUMP MOUNTING PLATE (1 required per assembly) | ||
  |
|
27-42457 - Fuel Pump Mounting Plate Gasket [ More info ]
|
| #8 — 35366 — SCREW, (.250-20 x .563), FUEL PUMP MOUNTING PLATE (2 required per assembly) | ||
  |
|
10-35366 - Screw - Priced Individually [ More info ]
|
  |
|
10-8M0040582 - Dipstick Tube MT Screw - Priced Individually [ More info ]
|
| #9 — 17347 — ROD, PUSH - FUEL PUMP (1 required per assembly) | ||
  |
|
17347 - ROD,NLA [ More info ] Unavailable |
| #10 — 73815 63 — HOSE, (34.00 Inches Bulk), PLASTIC - FUEL PUMP TO CARBURETOR (1 required per assembly) | ||
  |
32-73815 63 - Tubing-34 Inch [ More info ] Unavailable |
|
  |
|
32-73815 67 - Tubing - 42 Inch [ More info ]
|
| #11 — 43276 — ELBOW, FUEL PUMP (1 required per assembly) | ||
  |
|
22-43276 - Elbow [ More info ]
|
| #12 — 11851 2 — LINE, Fuel, FUEL PUMP TO CARBURETOR (1 required per assembly) — 175 - 4.3L | ||
  |
|
32-11851 2 - Fuel Line [ More info ]
|
| #12 — 99755A 2 — LINE ASSEMBLY, Fuel, FUEL PUMP TO CARBURETOR (1 required per assembly) — 205 - 4.3L/LX | ||
  |
|
32-99755A 2 - Fuel Line [ More info ]
|
  |
|
32-99755 1 - Fuel Line [ More info ]
|
